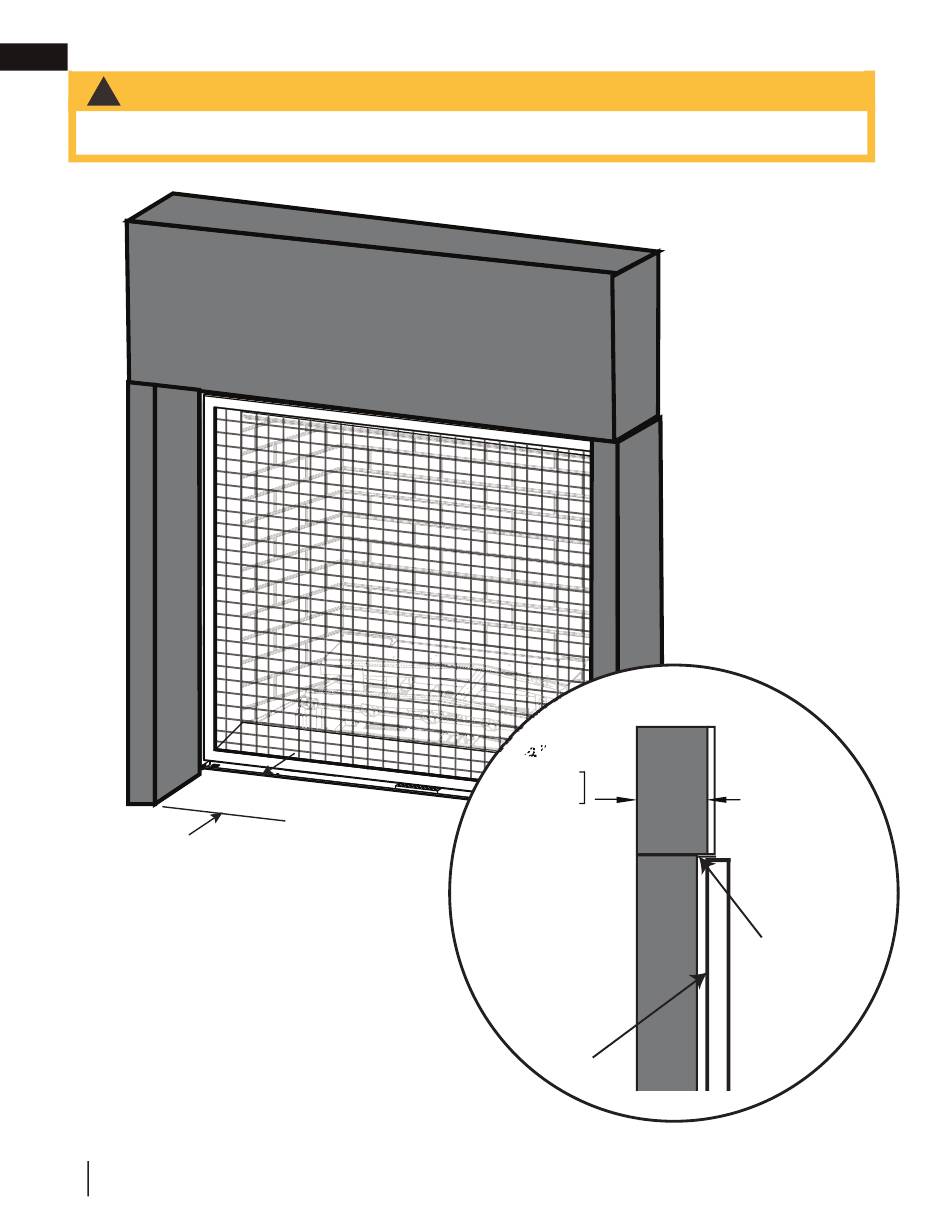

11.0 maximum protrusion
fi nish framing - after appliance installation
EN
WARNING
!
•
Finishing material tight to the frame around the fi nshing fl ange must not project more than 4" (38mm) from the
face of the safety barrier (above the door and sides only).
4" (10cm)
Non-Combustible
Maximum
protrusion
(must not encroach
on finishing flange)
24
W415-2753 / A / 07.20.20
SIDE VIEW
4"
10cm
Max
Barrier
Finishing
Flange (All
Around
Opening)
