ST47U / ST58U-1
SAFETY INFORMATION
WARNING
!
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
GENERAL INFORMATION
These installation instructions must be used in
conjunction with the appliance and appropriate
terminal kit installation instructions. Clearances
listed in these instructions supersede those in
the appliance's installation instructions.
Selecting and installing the appliance
When installing the Silhouette Terminal,
take into consideration the fi nish material
requirements and follow the relevant installation
instructions set out in this manual.
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
$10.00
ADD MANUAL TITLE
Phone 1 (866) 820-8686 • www.napoleon.com • hearth@napoleon.com
INSTALLATION
Silhouette Terminal
(MUST use title from Price Book)
ADD PRODUCT IMAGE
FOR USE ONLY WITH APPROVED
"FOR INDOOR USE ONLY" OR OTHER
4" / 7" AND 5" / 8"
DIRECT VENT GAS APPLIANCES
ENGLISH
FRENCH PG. 31
MANUAL
Product Name / Code
ADD ____ ILLUSTRATED

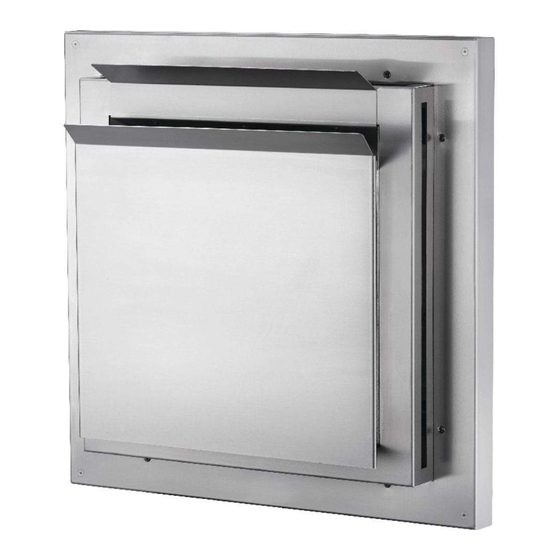

ST58U-1 illustrated
HORIZONTAL TERMINATION ONLY
APPLICABLE COMMENT
W415-2899 / A / 10.07.20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Napoleon WOLF STEEL ST47U
Summary of Contents for Napoleon WOLF STEEL ST47U
- Page 1 APPLICABLE COMMENT 4” / 7” AND 5” / 8” DIRECT VENT GAS APPLIANCES Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone 1 (866) 820-8686 • www.napoleon.com • hearth@napoleon.com $10.00...
-
Page 2: Table Of Contents
il) ftalato (DEHP, por sus siglas en inglés), que el Estado de California reconoce como caus- antes de malformaciones congénitas u otros daños para la reproducción. Para obtener más información, visite www.P65Warnings.ca.gov. table of contents general information installation overview Gas, Wood list of certified appliances installation planning installation options... - Page 3 1.0 general information general information installation overview WARNING • FIRE HAZARD! Failure to comply with these installation instructions could result in serious damage. • Do NOT finish past the terminal return flange. For 4” / 7” appliances: For 5” / 8” appliances: Vinyl siding and Exterior finish material (less than Vinyl siding (less than 1”...
-
Page 4: General Information
general information list of certified appliances Product series MODEL B/CHD4ST Ascent Multi-view B/CHD4P B30/CB30 B35/CB35 Ascent B36/CB36/TB36 B42TR/CB42TR/TB42TR B46/CB46 BL36/CBL36 Ascent Linear BL46/CBL46 BHD4ST/CHD4ST Ascent Multi-View BHD4P/CHD4P Arlington GDS20/TDS20 Bayfield GDS25 Castlemore GDS26 Haliburton GDS28/CDVS280/TDS28 Havelock GDS/CDVS/TDS50 Knightsbridge GDS60/CDVS600/TDS60 GX36/CX36 Ascent X GX42 GX70/CX70... - Page 5 2.0 installation planning installation planning installation options TERMINAL STANDOFF BRICK STANDOFF There are multiple ways to install the Silhouette Terminal, based on the exterior finish material used. FOR USE WITH LISTED 4”/7” DIRECT VENT GAS APPLIANCES Brick Standoff Installation Type Terminal (ST47U) Standoff (SOST47) (SOST47B)
-
Page 6: Installation Planning
installation planning terminal overview WARNING • Do NOT finish past the terminal return flange. Failure to comply with these instructions could create a fire hazard. • Do NOT block the air intakes (all four sides) or the exhaust port. Ensure air flow within the terminal is not restricted in any way. -
Page 7: 4"/7" Terminal Dimensions
installation planning 2.2.1 4”/7” terminal dimensions FOR USE ONLY WITH APPROVED WOLF STEEL DIRECT VENT 4” / 7” GAS APPLIANCES front view right side view top view 9 41/64" 245mm 4 15/64" 108mm 14 1/64" 1 1/32" 356mm 26mm 14 29/32" 14 1/64"... -
Page 8: Terminal Kit Components
installation planning terminal kit components Reference Reference Part Number Description ST47U 4” / 7” SILHOUETTE TERMINAL ASSEMBLY ST58U-1 5” / 8” SILHOUETTE TERMINAL ASSEMBLY W570-0022 MOUNTING SCREWS (x4) W415-2899 / A / 10.07.20... -
Page 9: 4"/7" Standoff Dimensions
installation planning standoff overview 2.4.1 4”/7” standoff dimensions REQUIRED WITH 4”/7” TERMINAL (ST47U): EXTERIOR FINISH MATERIALS 1” (25MM) TO 2” (51mm) front view right side view top view 14 1/64" 356mm 10 1/2" 2" 267mm 51mm 14 47/64" 374mm 14 1/64" 356mm 10 1/2"... -
Page 10: 4"/7" Brick Standoff Dimensions
installation planning brick standoff overview 2.4.4 4”/7” brick standoff dimensions REQUIRED WITH 4”/7” TERMINAL (ST47U): FOR BRICK FOR VINYL SIDING BETWEEN 1” (25MM) AND 2” (51mm) front view right side view top view 14 1/64" 356mm 10 1/2" 267mm 4" 102mm 14 47/64"... -
Page 11: Standoff Kit Components
installation planning standoff kit components Reference Reference Part Number Description SOST47 STANDOFF ASSEMBLY (4”/7”) SOST58 STANDOFF ASSEMBLY (5”/8”) W570-0022 SCREWS (x8) W570-0004 SCREWS (x4) brick standoff kit components Reference Reference Part Number Description SOST47B BRICK STANDOFF ASSEMBLY (4”/7”) SOST58B BRICK STANDOFF ASSEMBLY (5”/8”) W570-0022 SCREWS (x8) W570-0004... -
Page 12: Terminal Guard Overview
installation planning terminal guard overview Reference Reference Part Number Description STS4758 TERMINAL GUARD W570-0009 SCREWS (x4) W735-0011 WASHERS (x4) For applications where the terminal is situated in an accessible location, this kit MUST be installed, see “terminal auard installation (all)” section. W415-2899 / A / 10.07.20... - Page 13 3.0 terminal clearances terminal clearances TABLE 1: Minimum air terminal clearances (Canada / U.S.A) note: INSTALLATIONS Wall terminals are for illustration purposes only. Size and shapes may vary. CANADA U.S.A. 12” (30.5cm) Clearance above grade, veranda porch, deck or balcony. 12”...
- Page 14 terminal clearances TABLE 2: Silhouette terminal clearances (Canada / U.S.A) ST47U ST58U-1 Minimum soffit clearance 18” (non-vinyl wall, non-vinyl soffit) Minimum soffit clearance D, E 18” 20” (vinyl wall, non-vinyl soffit) Minimum soffit clearance 36” (all walls finishes, vinyl soffit) Maximum soffit length 9”...
-
Page 15: Pre-Installation
4.0 pre-installation pre-installation firestop spacer installation WARNING • Use the firestop spacer provided with your appliance. • The firestop assembly must be installed with the vent shield to the top. This application occurs when venting through an exterior wall. Having determined the correct height for the termi- nation, cut and frame a hole in the exterior wall, as illustrated, to accommodate the firestop assembly. -
Page 16: Vinyl Siding - Less Than 1" (25Mm) (4"/7" Only)
5.0 installation installation WARNING • Minimum terminal and appliance clearance to combustibles must be maintained or a serious fire hazard could result. vinyl siding - less than 1” (25mm) (4”/7” only) Required (for 4”/7”): • Terminal (ST47U) Terminal (4”/7” only) 1.0 Attach the termination to the venting, see “pre-installation”... - Page 17 installation Vinyl Firestop (Less than 1") assembly (4”/7” only) Firestop assembly Terminal important: The termination may be installed with the vinyl (less than 1” [25mm]) coming up to, but not past, the return flange of the termination. W415-2899 / A / 10.07.20...
-
Page 18: Vinyl Siding - Less Than 1" (25Mm) (5"/8" Only)
installation vinyl siding - less than 1” (25mm) (5”/8” only) Standoff Required (for 5”/8”): • Terminal (ST58U-1) • Standoff (SOST58) 1.0 Place the standoff in the framed opening, using the tabs as guides. 2.0 Secure the standoff to the sheathing using the 8 long screws (supplied with standoff kit). - Page 19 installation WARNING FOR 5”/8” ONLY: Applications with vinyl siding less than 1” (25mm) require a minimum 1” (25mm) • clearance from exterior vinyl siding to to the front edge of the return flange. Vinyl Firestop (Less than 1") assembly (5”/8” only) Standoff Firestop assembly...
-
Page 20: Vinyl Siding - Between 1" (25Mm) And 2" (51Mm) (All)
installation vinyl siding - between 1” (25mm) and 2” (51mm) (all) Brick Standoff Required for 4”7”: • Terminal (ST47U) • Brick Standoff (SOST47B) Required for 5”/8”: • Terminal (ST58U-1) • Brick Standoff (SOST58B) 1.0 Place the standoff in the framed opening, using the tabs as guides. - Page 21 installation WARNING • FOR 5”/8” ONLY: Applications with vinyl siding (1” (25mm) - 2” (51mm) require a minimum 2” (51mm) clearance from exterior vinyl siding to to the front edge of the return flange. Vinyl (1" - 2") Firestop assembly (4”/7”...
-
Page 22: Exterior Finish Material - Less Than 1" (25Mm) (All)
installation exterior finish material - less than 1” (25mm) (all) Terminal Required for 4”7”: • Terminal (ST47U) Required for 5”/8”: • Terminal (ST58U-1) 1.0 Attach the termination to the venting, see “pre-installation” and “venting” sections. note: All inner flex pipe and outer flex pipe joints to the termination may be sealed using high temperature red RTV silicone W573-0002 (not supplied) or the high temperature sealant W573-... -
Page 23: Exterior Finish Material - Between 1" (25Mm) And 2" (51Mm) (All)
installation exterior finish material - between 1” (25mm) and 2” (51mm) (all) Standoff Required for 4”7”: • Terminal (ST47U) • Standoff (SOST47) Required for 5”/8”: • Terminal (ST58U-1) • Standoff (SOST58) 1.0 Place the standoff in the framed opening, using the tabs as guides. 2.0 Secure the standoff to the sheathing using the 8 long screws (supplied in standoff kit). - Page 24 installation Exterior Finish Material Firestop assembly (1" - 2") (4”/7” and 5”/8”) Standoff Firestop assembly Terminal important: The termination may be installed with the exterior finish material (1” [25mm] to 2” [51mm]) coming up to, but not past, the return flange of the termination.
-
Page 25: Brick (All)
installation brick (all) WARNING If the thickness between the brick surface and sheathing exterior exceeds 4”, the brick must be installed after installing the brick standoff and BEFORE installing the termination. The termination cap will then secure to the surface of the brick and secure to the brick standoff. For non-standard brick sizes, it is recommended to either use a custom built brick standoff or mount the termination on the surface of the brick Required for 4”7”: •... - Page 26 installation Firestop Brick assembly Brick Standoff Firestop assembly Terminal important: The termination may be installed with the brick coming up to, but not past, the return flange of the termination. W415-2899 / A / 10.07.20...
- Page 27 installation terminal guard installation (all) WARNING • This mesh guard is used to prevent against accidentally touching the Silhouette terminal when it is situated in an accessible location. The Silhouette terminal is considered accessible when it extends less than seven feet (7’) above grade, over a public sidewalk or a common driveway.
- Page 28 replacement parts WARNING • Failure to position the parts in accordance with this manual or failure to use only parts specifi cally approved with this appliance may result in property damage or personal injury. Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can be ordered through your Authorized dealer / distributor.
-
Page 29: Replacement Parts
replacement parts 8.1 overview Ref. Part Number Description Stocked W585-0959 Exhaust Shield (ST47U) W585-0971 Exhaust Shield (ST58U-1) W415-2899 / A / 10.07.20... - Page 30 NAPOLEON CELEBRATING OVER 40 YEARS OF HOME COMFORT PRODUCTS 7200, Route Transcanadienne, Montréal, Québec H4T 1A3 24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8 103 Miller Drive, Crittenden, Kentucky, USA 41030 De Riemsdijk 22, 4004 LC Tiel, The Netherlands Phone: 1-866-820-8686 napoleon.com...
- Page 31 APPLICABLE COMMENT DIRECTE APPROUVÉ 4” / 7” ET 5” / 8” Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone 1 (866) 820-8686 • www.napoleon.com • hearth@napoleon.com $10.00 W415-2899 / A / 10.07.20...
-
Page 32: Mación, Visite Www.p65Warnings.ca.gov
Gas, Wood table des matières WARNING: This product can expose you to chemicals including lead and lead compounds, information générale which are known to the State of California to cause cancer, and chemicals including carbon vue d’ensemble de l’installation monoxide, which are known to the State of California to cause birth defects or other reproduc- tive harm. - Page 33 1.0 information générale information générale vue d’ensemble de l’installation AVERTISSEMENT • RISQUE D’INCENDIE! Si ces instructions ne sont pas suivies à la lettre des dommages pourraient s’ensuivre. • Ne finis PAS au-délà la bride de retour de la terminaison. Pour les appareils d’évacuation 4” / 7”: Pour les appareils d’évacuation 5”...
- Page 34 information générale liste d’appareils certifiés Product series Modèle(s) MODEL Séries du produit B/CHD4ST Ascent Multi-view B/CHD4P B30/CB30 B35/CB35 Ascent B36/CB36/TB36 B42TR/CB42TR/TB42TR B46/CB46 BL36/CBL36 Ascent Linear BL46/CBL46 BHD4ST/CHD4ST Ascent Multi-View BHD4P/CHD4P Arlington GDS20/TDS20 Bayfield GDS25 Castlemore GDS26 Haliburton GDS28/CDVS280/TDS28 Havelock GDS/CDVS/TDS50 Knightsbridge GDS60/CDVS600/TDS60 GX36/CX36...
- Page 35 2.0 planification de l’installation planification de l'installation options d’installation TERMINAL STANDOFF BRICK STANDOFF TERMINAISON ESPACEUR ESPACEUR DE BRIQUE Il y a multiple options d’installation possibles pour la Terminaison Silhouette, dépendant du matériau du finition utiliser sur le mur extérieur. POUR USAGE AVEC LES APPAREILS D’ÉVACUATION DIRECTE APPROUVÉ 4”/7” Terminaison Espaceur Espaceur de brique...
