installation planning
EN
2.5

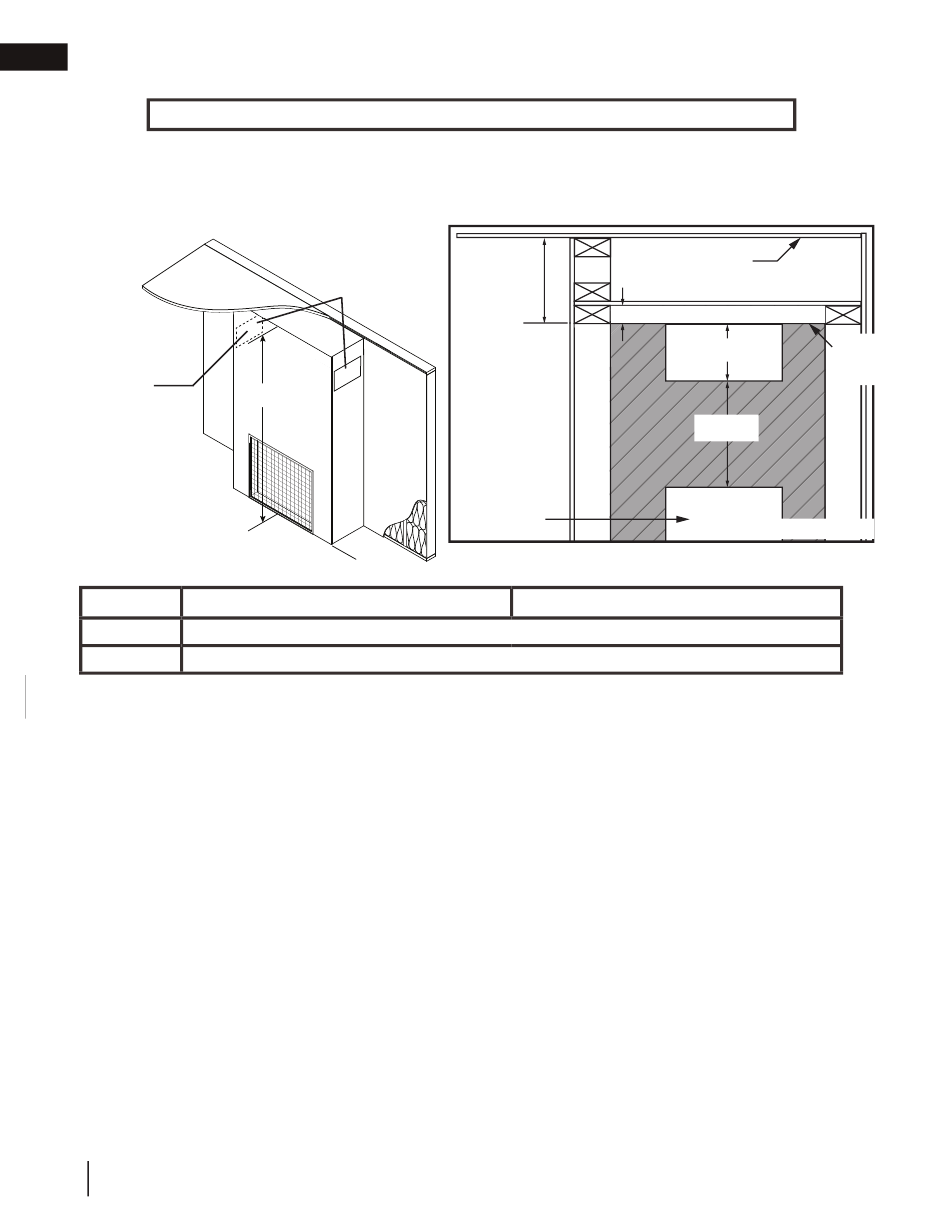

installation option 5 - side openings

Installation Option 5 (side openings) requires two (2) air outlet openings to be framed no more than 1.5" below
the enclosure top to avoid trapping heat in the upper areas and the air outlet opening centered on the appliance
center. Minimum air outlet opening dimensions must be followed. Framing the air outlet opening lower will
overheat the appliance, the enclosure, and fi nishing material.
DYNAMIC HEAT
CONTROL™ AIR
OUTLET OPEN-
ING IS HOT WHEN
APPLIANCE IS
OPERATING!
Side air outlet openings must
be located out of reach of the
user. Air outlet must not be
restricted by furnishings or
decor.
Air outlet openings are required to be
centered with the appliance.
(Q x R)*
L
*Grills, grates, louvers, or other covers are only permitted if the free area is equal to or greater than
the required minimum opening size listed above.
8
W415-2753 / A / 07.20.20
Suitable for Dynamic Heat Control™ Plus
(Q x R)*
L
MINIMUM AIR OUTLET OPENING DIMENSIONS
EX36
2x 56 sq. in. openings minimum (Q must be 3-4")
2 1/2"
0-1.5" Max.
min.
Wall mounted
object (picture
frame, appli-
ance, etc.)
72"
ceiling
3-4"
6" MIN
ALTERNATIVE
EX42
enclosure
top must
be installed
