Dynamic Heat Control™ installation
EN

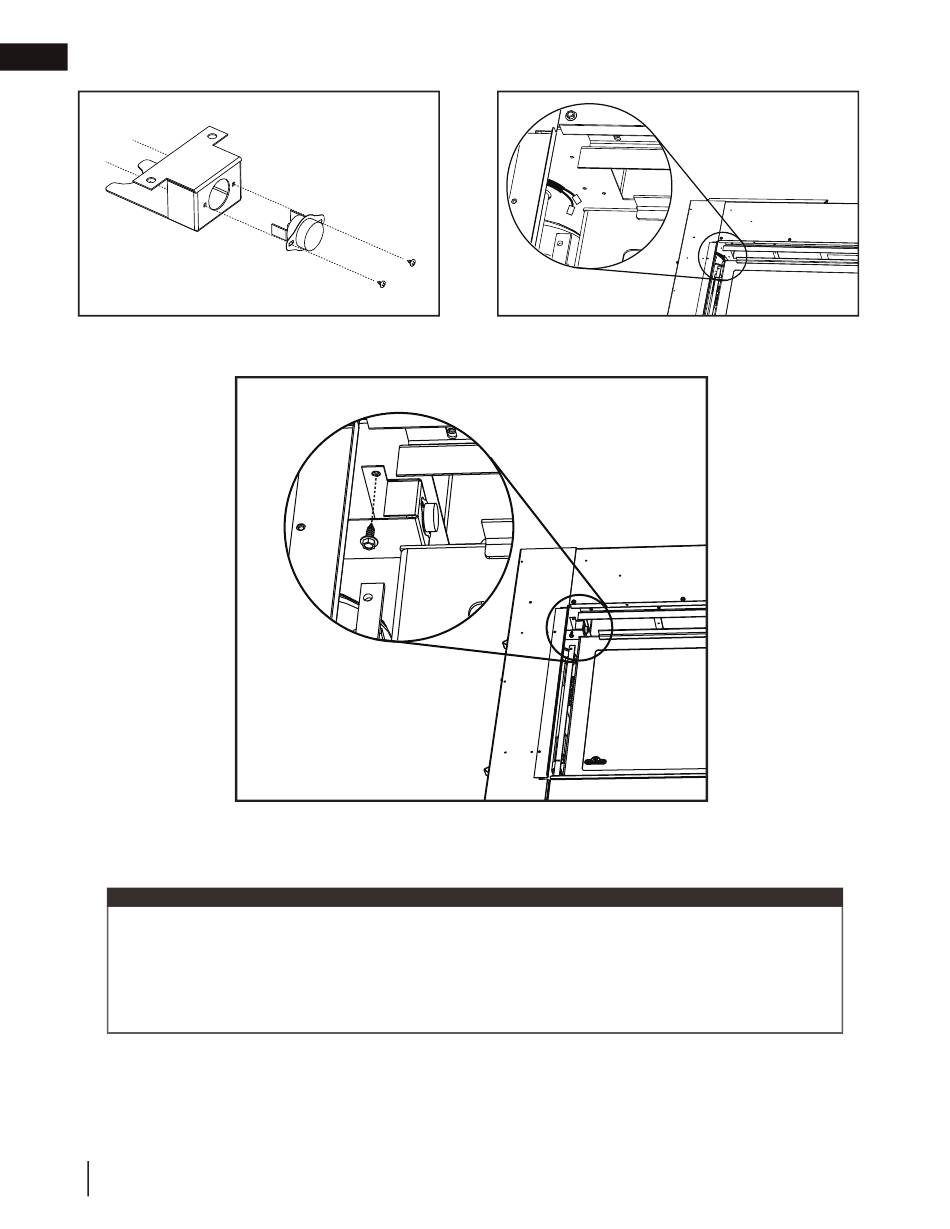

3.) Insert the high limit switch into the bracket and secure
with two fasteners (supplied).
5.) Install high limit switch assembly to the bracket install location in the upper left hand corner of the
appliance. Secure high limit switch assembly with a supplied screw as shown.
IMPORTANT:
After installing the Dynamic Heat Control™ system, ensure appliance is clean from dust, debris,
etc. before continuing with the appliance installation. Take precautions to ensure framing or
fi nishing dust and debris does not enter the air outlet openings or defl ectors.
Check and clean appliance before operation.
Re-install safety barrier. Refer to "safety barrier installation / removal" in the appliance installation
manual.
