2.3 Connecting a BoosterPack™
A compatible BoosterPack™ can be stacked on top of the LaunchPad™ using the 2-pin × 20-pin
connectors. The connectors do not have a key to prevent misalignment of the pins or reverse connection.
For ease of use, a BoosterPack™ Checker tool can be used to verify if the LaunchPad™ is compatible
with a given BoosterPack™ (see
Ensure that the 3V3 and 5V pins are aligned with the BoosterPack™ module header pins. On the CC3235
LaunchPad™, a small white 3V3 tag symbol is provided near pin 1 (see
BoosterPack™ modules. This same marking, provided on compatible BoosterPack™ modules, must be
aligned before powering up the boards.
8
CC3235x SimpleLink™ Wi-Fi
CC3235x)
dev.ti.com/bpchecker/#).

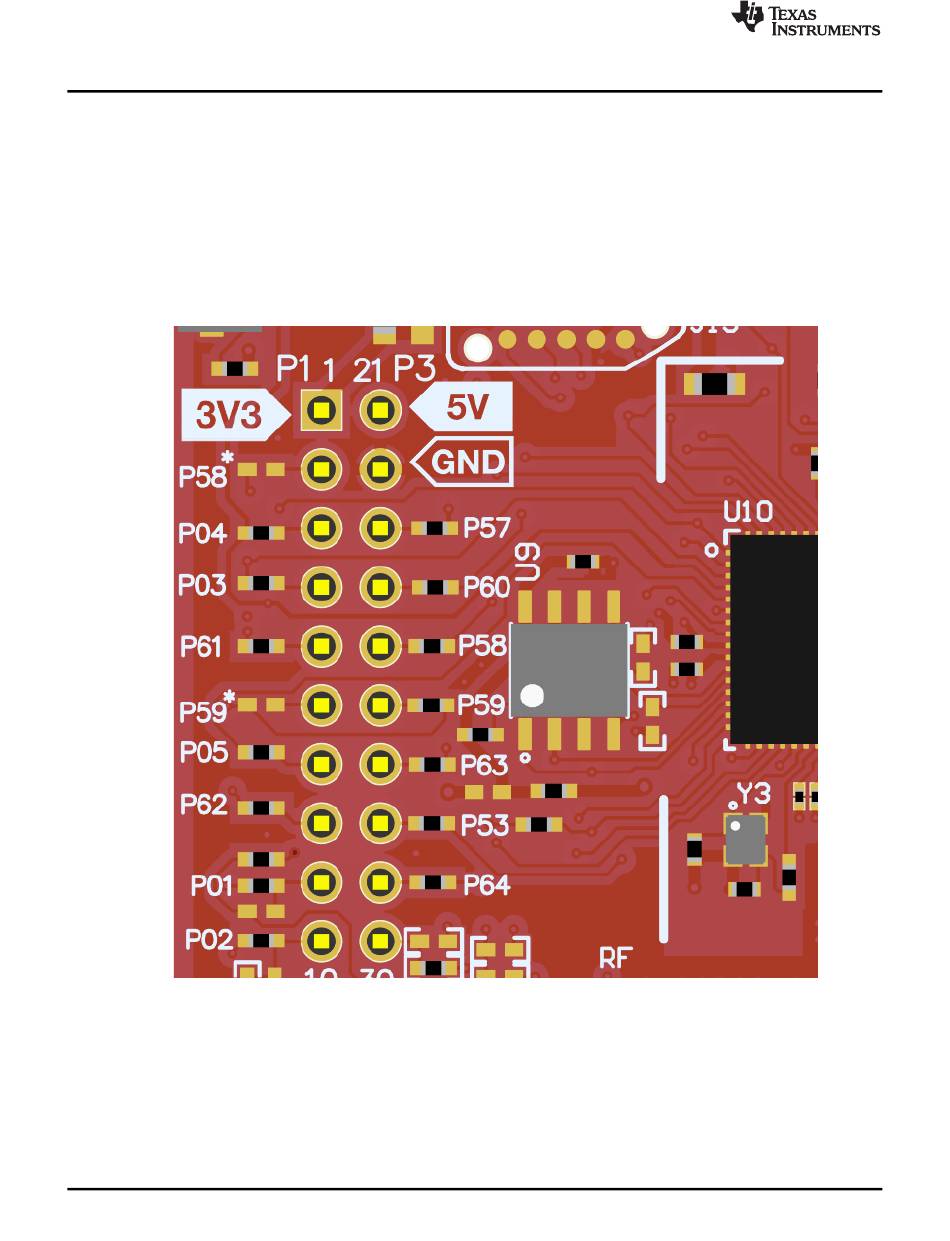

Figure 3. Pin 1 Marking on CC3235 LaunchPad™ (3v3 Tag)
®
LaunchPad™ Development Kit (LAUNCHXL-
