Hardware Description
2.1
Block Diagram

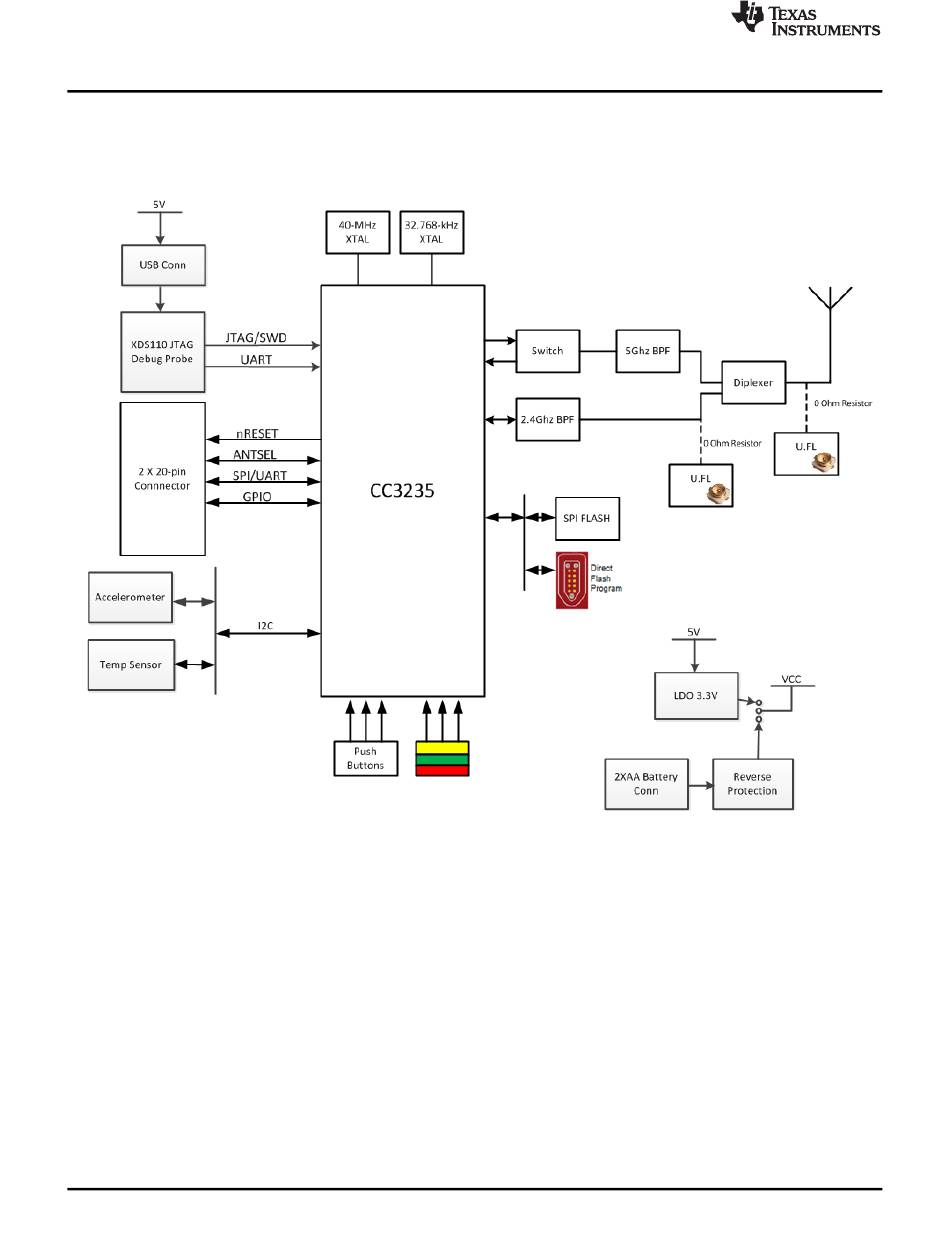

Figure 2
shows the CC3235 LaunchPad™ block diagram.
6
CC3235x SimpleLink™ Wi-Fi
CC3235x)
Figure 2. CC3235 LaunchPad™ Block Diagram
®
LaunchPad™ Development Kit (LAUNCHXL-
Copyright © 2019, Texas Instruments Incorporated
www.ti.com
SWRU539 – January 2019
Submit Documentation Feedback
