Hardware Description
To connect an external emulator, remove these jumpers and place the external emulator on the JTAG IN
connector (see
Figure
10
CC3235x SimpleLink™ Wi-Fi
CC3235x)
5).

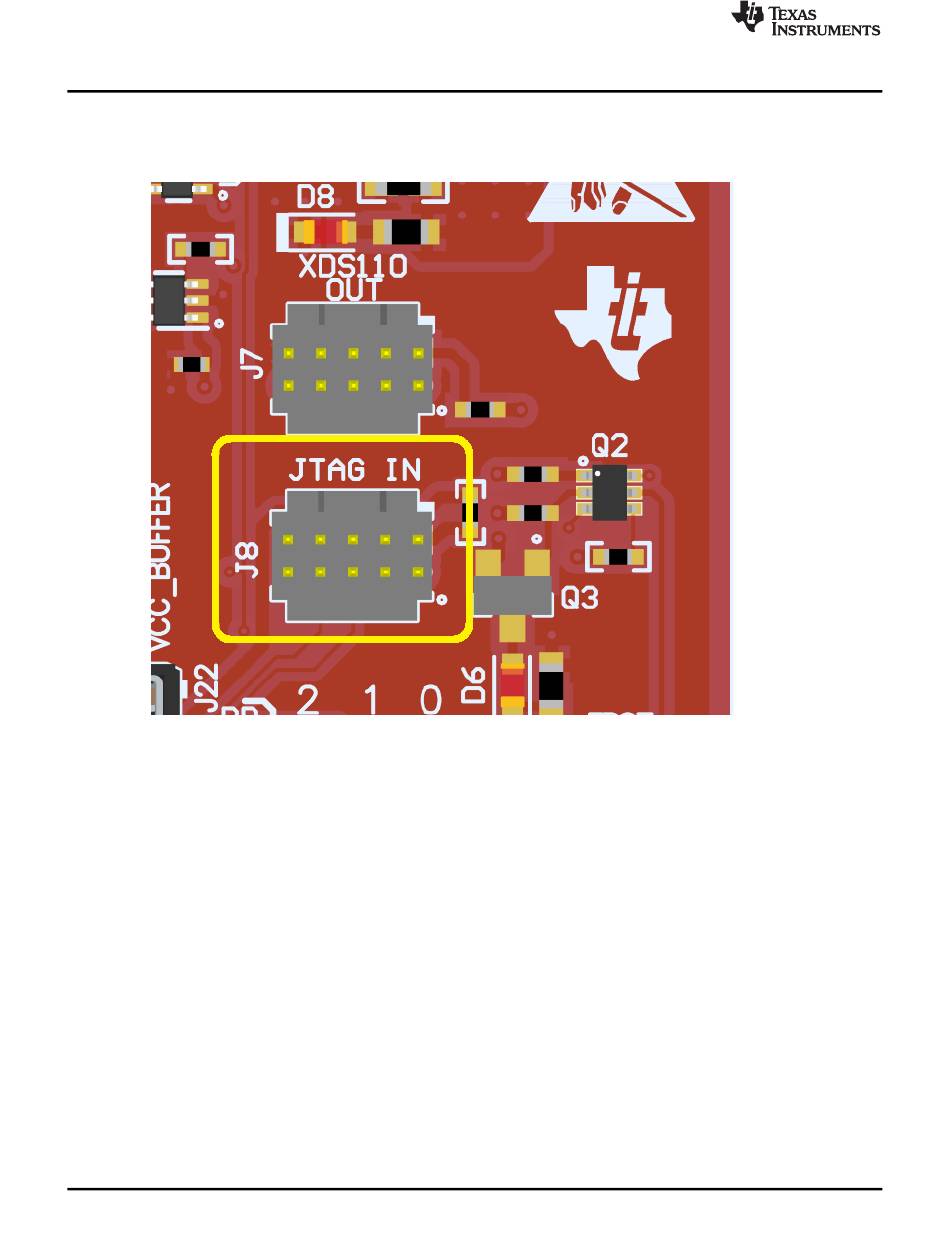

Figure 5. JTAG IN Connector
®
LaunchPad™ Development Kit (LAUNCHXL-
Copyright © 2019, Texas Instruments Incorporated
www.ti.com
SWRU539 – January 2019
Submit Documentation Feedback
