Function "Process Propert." (004); Function "End Of Probe" (030) - Endress+Hauser Levelflex M FMP40 Function Manual

3 Function group "basic setup" (00)
⇒
ENDRESS + HAUSER
– + E
Selection:
Application: For all normal applications, bulk
solids and fluids at low to
medium filling speed and suffi-
ciently large tanks.
2-wire electronics: Dead time: 4 s
Slewrate: 18 s
4-wire electronics: Dead time: 2 s
Slewrate: 11 s
⇒
ENDRESS + HAUSER
– +
E
18
3.4

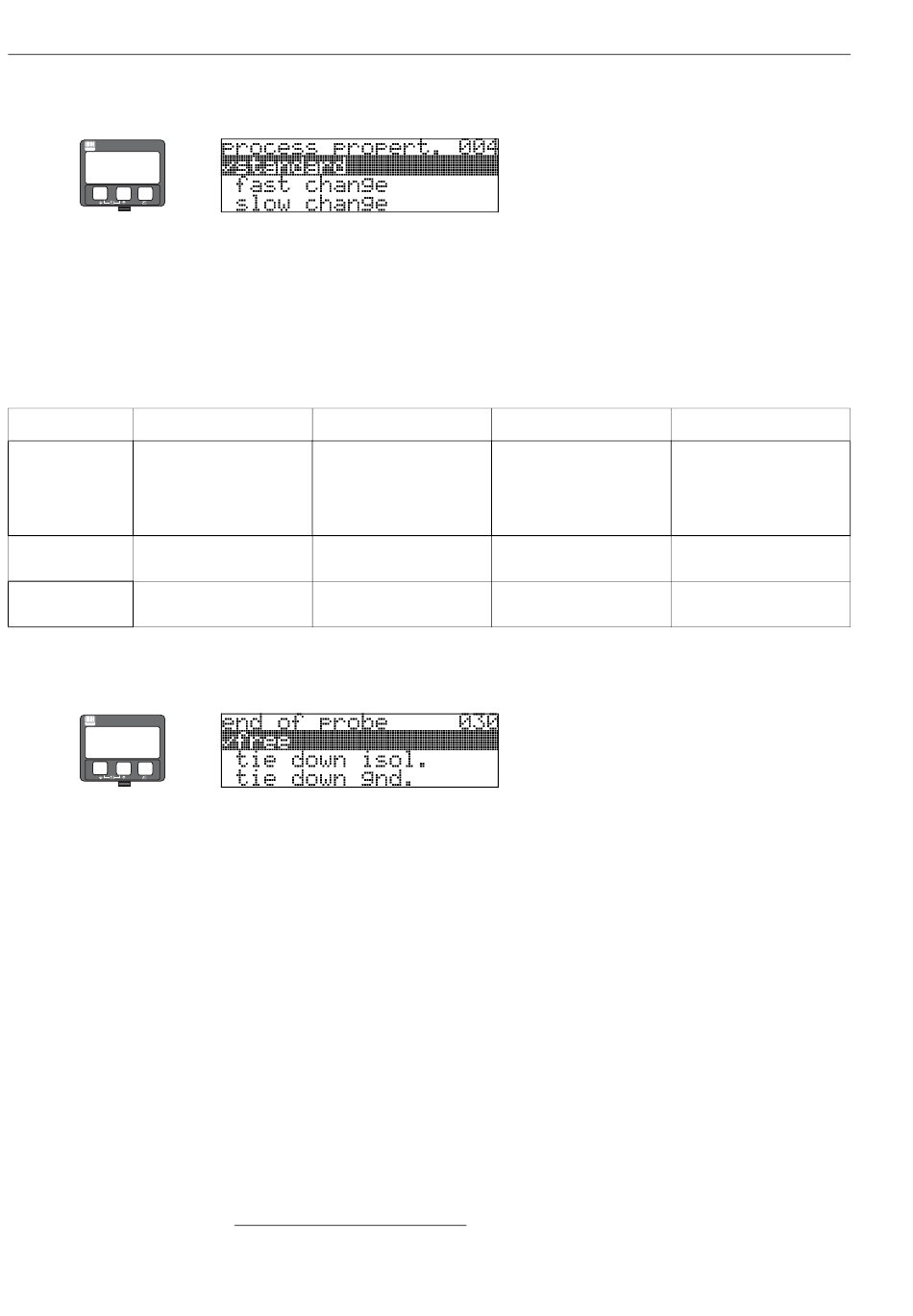

Function "process propert." (004)

Use this function to adapt the device reaction to the filling speed in the tank. The setting impacts
on an intelligent filter.
Selection:
• standard
• fast change
• slow change
• test:no filter
standard
Small tanks, primarily with flu-
ids, at high filling speeds.
Dead time: 2 s
Slewrate: 5 s
Dead time: 1 s
Slewrate: 3 s
3.5

Function "end of probe" (030)

Use this function to select the polarity of the probe end signal. If the probe end is uncovered or in
an insulated attachment, there is a negative probe end signal.
The signal from the probe end is positive if the attachment is grounded.
Only the setting "free " is permitted for the FMP41C/FMP43.
Selection:
• free
1
• tie down isol.
1
• tie down gnd.
1.FMP41C/FMP43: These settings lead to a false output signal for empty tanks.
fast change
Applications with strong surface
movement, e.g. caused by stir-
rer, primarily large tanks with
slow to medium filling speed.
Dead time: 6 s
Slewrate: 40 s
Dead time: 3 s
Slewrate: 25 s
slow change
Shortest reaction time:
• For test purposes
• Measurement in small tanks
at high filling speeds, if "rapid
change" setting is too slow.
Dead time: 1 s
Slewrate: 0 s
Dead time: 0,7 s
Slewrate: 0 s
