3 Function group "basic setup" (00)
⇒
ENDRESS + HAUSER
–
+
E
ε
Media group
DC (
r)
1
1.4...1.6
2
1.6...1.9
3
1.9...2.5
4
2.5...4
5
4...7
6
> 7
16
bypass / pipe
The "bypass / pipe" option is designed especially for the installation of probes in a bypass or a still-
ing well. If this option is selected, the upper blocking distance is preset to 100 mm.
coax probe (not relevant for FMP43)
Select the "coax probe" option when using a coaxial probe. When this setting is made, the evalu-
ation is adapted to the high sensitivity of the coax probe. This option should, therefore, not be
selected when using rope or rod probes.
concrete wall
The "concrete wall" option takes into account the signal-damping property of concrete walls
when mounting with < 1 m distance to the wall.
3.3

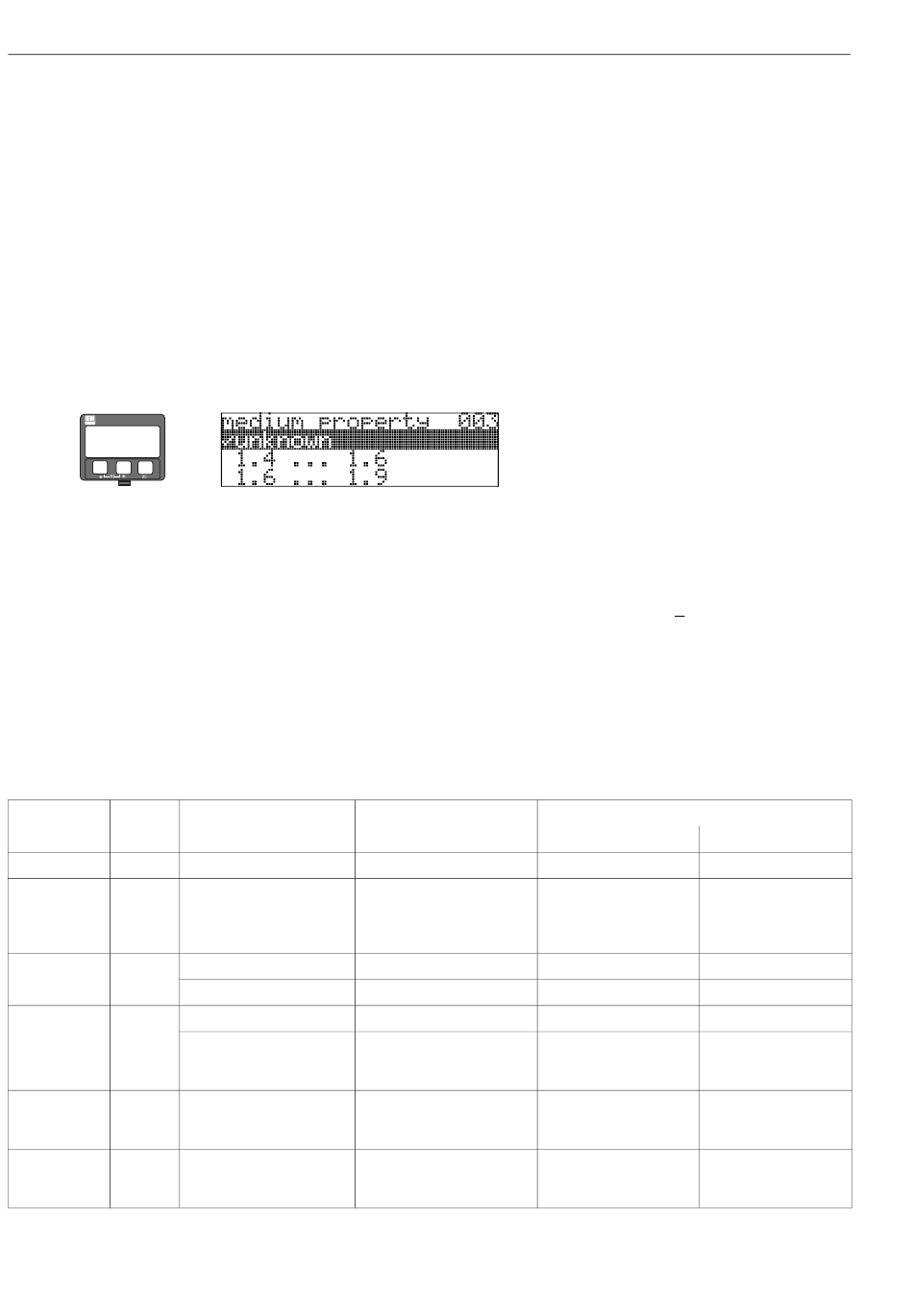

Function "medium property" (003)
This function is used to select the dielectric constant.
Selection:
• unknown
• 1.4 ... 1.6
FMP40: for coaxial and Rod probe with installation in metallic pipes < DN 150
FMP41C, FMP45: 1,4 for installation in metallic pipes)
• 1.6 ... 1.9
• 1.9 ... 2.5
• 2.5 ... 4.0
• 4.0 ... 7.0
• > 7.0
FMP40:
Typical bulk solids
Plastic granulate
White lime, special cement
Sugar
Portland cement, plaster
Flour
Grain, seeds
Ground stones
Sand
Naturally moist (ground) stones,
ores
Salt
Metallic powder
Carbon black
Coal
Typical liquids
Condensed gases, e.g. N
, CO
2
2
Liquefied gas, e.g. Propane
Solvent
Frigen / Freon
Palm oil
Mineral oils, fuels
—
⎯
Benzene, styrene, toluene
Furan
Naphthalene
Chlorobenzene, chloroform
Cellulose spray
Isocyanate, aniline
Aqueous solutions
Alcohols
Ammonia
Measuring range
bare metallic probes
PA-coated rope probes
4 m / 157", only coax probe
—
25...30 m / 984...1181"
12,5...15 m / 492...590"
30...35 m / 1181...1378"
—
—
15...25 m / 590...984"
⎯
25...30 m / 984...1181"
35 m / 1378"
25...30 m / 984...1181"
35 m / 1378"
35 m / 1378"
35 m / 1378"
35 m / 1378"
