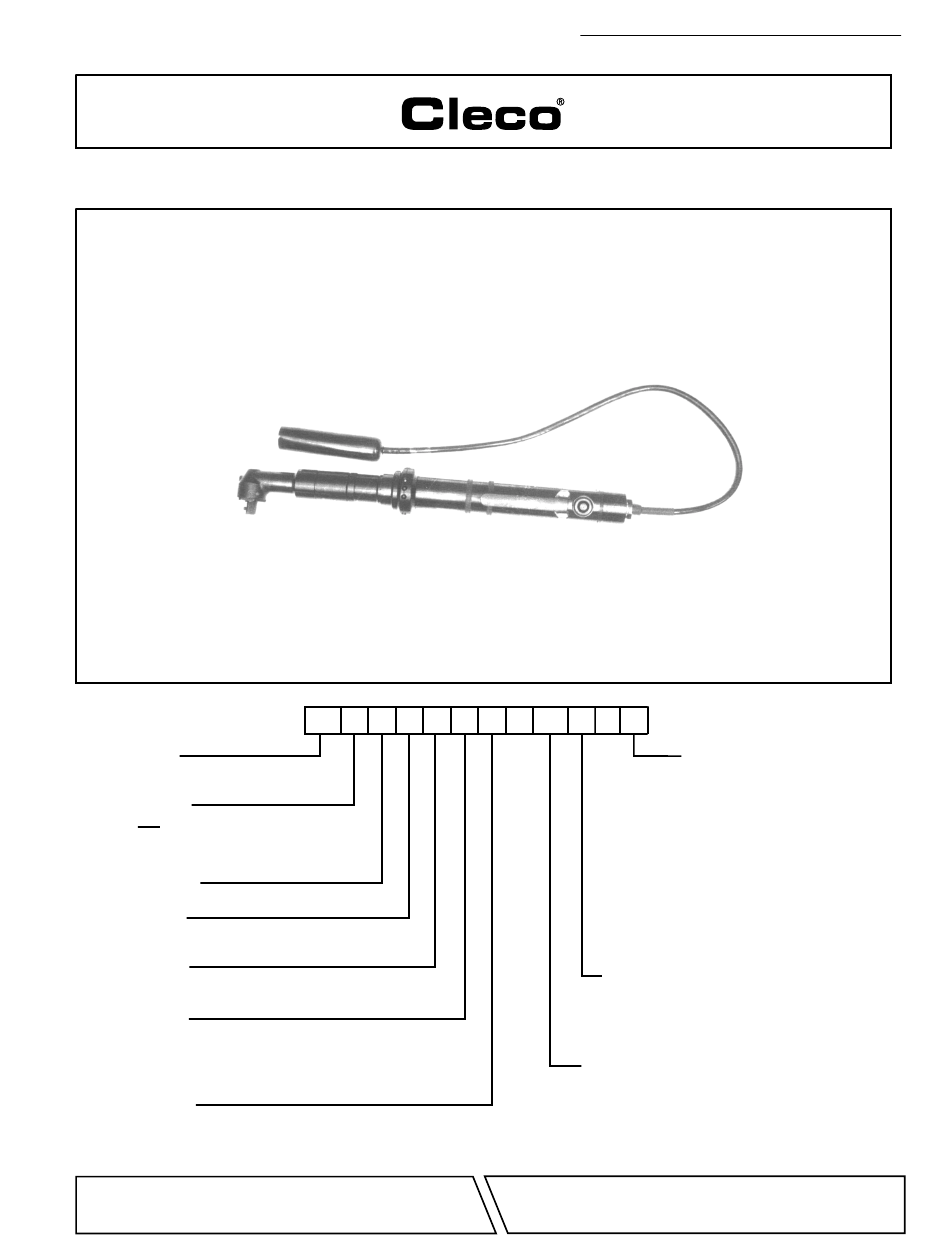

40NLTVC & 40RNLTVC
Series Nutrunners
Series:
40
Rotation:
Non Reversible
R
Reversible
Nutrunner:
Handle:
L
Lever
Options:
T
Transducer
Options:
V
Vision (Lights)
VP
Vision (Lights) Positive
Solenoid:
NORTH AMERICA
P.O. Box 1410
Lexington, SC 29071
40
X N
L
T
XX
C
Operation & Service Manual
823078
-
XX
X
-
X
Output Drive:
2
3
4
M
S
T
Angle Terminations:
K
M
P
Gear Train Designation:
10
104
304
20
204
EUROPE
Postfach 30
D-73461 Westhausen
2/01
1/4"
3/8"
1/2"
.25 Magnetic
Built-in Socket
(Specify Size)
Threaded Spindle
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 40NLTVC Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cleco 40NLTVC Series

Summary of Contents for Cleco 40NLTVC Series

  • Page 1 Operation & Service Manual 823078 2/01 40NLTVC & 40RNLTVC Series Nutrunners Series: Output Drive: 1/4" 3/8" Rotation: 1/2" Non Reversible .25 Magnetic Reversible Built-in Socket Nutrunner: (Specify Size) Threaded Spindle Handle: Lever Options: Angle Terminations: Transducer Options: Vision (Lights) Gear Train Designation: Vision (Lights) Positive Solenoid: NORTH AMERICA...

  • Page 2: Safety Recommendations

    These disorders develop gradually over periods of weeks, months, and years. It is presently unknown to what extent exposure to vibrations or Cleco nutrunners are designed to operate on 90 psig (6.2 bar) maxi- repetitive motions may contribute to the disorders. Hereditary factors, mum air pressure.
  • Page 3 Safety Recommendations For more information on the safe use of portable air tools, see the latest • Use a minimum hand grip force consistent with proper edition of ANSI B186.1, Safety Code for Portable Air Tools, available control and safe operation from the American National Standards Institute, Inc.
  • Page 4 OPERATING INSTRUCTIONS FOR YOUR SAFETY AND THE SAFETY OF OTHERS, READ AND UNDERSTAND THE SAFETY RECOMMENDATIONS BEFORE OPERATING A NUTRUNNER. TORQUE ADJUSTMENT LUBRICATION The 40NLTVC & 40RNLTVC nutrunners are designed to de- An automatic in-line filter-lubricator is recommended as it velop maximum rated torque at 90 psig.
  • Page 5 SERVICE INSTRUCTIONS DISASSEMBLY—GENERAL (ALL MODELS) TRANSDUCER DISASSEMBLY Disconnect tool from air supply. On the "M" and "K" head Remove the ring gear and transducer assembly from the rear unscrew (left hand threads) and remove the right angle head of the transducer housing. Press drive shaft No. 203703 or and the angle head adapter No.
  • Page 6 SERVICE INSTRUCTIONS MOTOR DISASSEMBLY and bearing retainer, No. 863564, in the head and tighten retainer Use a soft-faced hammer to drive the rotor out of the front rotor securely using the 5/8"(16mm) hex nut and 5/8"(16mm) deep bearing, No. 203489. This will allow the cylinder and five (5) socket.
  • Page 7 SOLENOID SPECIFICATIONS (+) SOLENOID 6V DC-8V DC CONTINUOUS VOLTAGE 24V DC-36V DC FOR 15 msec MAX. 14.95ohm RESISTANCE BLACK (-) SOLENOID TOOL RECEPTACLE CABLE CONNECTORS ADJUSTMENT SCREW SOLENOID RETAINER PLUNGER PIN .015/.020 1. Solenoid plunger pin to hat dimension should be .015/.020 as shown. A new plunger pin should be spaced as shown;...
  • Page 8 5/64 HEX WRENCH ADJUSTMENT SCREW SOLENOID RETAINER PLUNGER PIN SOLENOID SEAT VALVE PLUNGER 4. Using a 5/64" hex wrench, turn adjustment screw clockwise until plunger pin is pressed through hat and valve plunger is fully seated in solenoid seat. 5. Depress throttle and check tool for rated speed at 90PSI. If tool does not perform according to specifications, valve plunger may not be fully depressed.

  • Page 9: Transducer Specifications

    TRANSDUCER SPECIFICATIONS MAXIMUM TORQUE CAPACITY See full scale values below OUTPUT VOLTAGE (Vo) 2 Millivolts per volt at maximum torque capacity BRIDGE RESISTANCE (Rbr) 700 ohms (nominal) can be used with 350 and 700 ohm strain gage equipment* TRANSDUCER CABLE Cannon No.
  • Page 10 Cannon No. KPTO6AJ14- 19 35 & 40 SOLENOID CONTROL TOOL WIRING DIAGRAM or Equivalent 19 PIN CONNECTOR + EXCITATION WHITE WHITE BLACK - EXCITATION TRANDUCER BLACK GREEN + SIGNAL GREEN CAMBION CONNECTORS - SIGNAL SHIELD SHIELD + SOLENOID SOLENOID BLACK BLACK - SOLENOID CAMBION...
  • Page 11 869034 863698 .008" "K" RIGHT 865723 .004" ANGLE HEAD 847846 863564 ANGLE HEAD ADAPTER 869864 Stall Tools Only 842366 202198 202266 202200 847853 1/4" SQ. DR. 844014 3/8" SQ. DR. 864964 202987 1/4" SQ. DR. 202986 1/4" SQ. DR. 844016 3/8" SQ. DR. 844013 3/8"...
  • Page 12 "M" RIGHT ANGLE HEAD 869034 863698 .008" 865723 .004" 847846 863564 863360 869050 ANGLE HEAD ADAPTER Stall Tools Only 882629 869048 869049 843589 847219 867642 867641 864396 842517 847710 864076 867643 869051 FLUSH SOCKET SPINDLE SIZE SPINDLE CONVERSION PART NO. KIT* PART NO. 10mm 202566-6 201102 11mm 202725-8...
  • Page 13 40 SERIES "P" RIGHT ANGLE HEAD 202197 203437 203438 203443 864105 867546 203441 203440 203253 844014 3/8" SQ. DR. 844014 1/2" SQ. DR. 844016 3/8" SQ. DR. 844013 844011 1/2" SQ. DR. 203439 3/8" SQ. DR. 847272 203251 203249 1/2" SQ. DR. 203248 842517 203250...
  • Page 14 40NLTVC 104, 204 & 304 SERIES 2ND REDUCTION GEAR TRAINS 203748-9 203749-7 203749-7 203750-5 203744-8 203747-1 203453-6 203743-0 PARTS LIST 40NLTVC 104, 204 & 304 SERIES 2ND REDUCTION GEAR TRAINS PART NO. NAME OF PART QTY. 203453 Retainer Ring 203743 Gear Case (45T) 203744 2nd Reduction Gear Case Adapter...
  • Page 15 40NLTVC & 40RNLTVC GEAR TRAINS -10 & -104 GEAR TRAINS 203793-5 203781-0 203782-8 203784-4 202877-7 847147-6 202888-4 867902-9 847566-7 203749-7 203783-6 869584-3 203785-1 844364-0 203786-9 202875-1 619017-8 202876-9 203702-6 -20 & -204 GEAR TRAINS 202888-4 847566-7 847147-6 867921-9 867922-7 867866-6 619017-8 844364-0 867872-4...
  • Page 16 MOTORS 40 SERIES SOLENOID NUTRUNNER 203635-8 Non-Rev. 203464-3 Rev. 202718-3 Non-Rev. 202704-3 Rev. 203741-4 812165-9 203488-2 203630-9 203489-0 203638-2 Non-Rev. 10M &104P 20M, 204P 203703-4 203460-1 Rev. 304P & 30K 203704-2 PARTS LIST — 40 SERIES MOTORS PART NO. NAME OF PART QTY.
  • Page 17 864271-2 844306-1 203036-9 40NLTVC & 40RNLTVC 203360-3 203359-5 BACKHEAD 844307-9 844307-9 203745-5 Non-Rev. 844313-7 844060-4 832207-5 847426-5 Rev. Only 203979-0 Rev. 863009-7 203361-1 844306-1 203457-7 Rev. Only 203368-6 203369-4 203636-6 Non-Rev. 844265-9 203465-0 Rev. 847086-6 Rev. Only 863241-6 203366-0 203365-2 203363-7 203367-8 867877-3...
  • Page 18 Tool Components Tightening Techniques 40NLTVC Series Right Angle Nutrunners 10, 20 & 30 Gear Trains Clamp angle head with bushing in vise. Tighten all other components before posi- tioning angle head relationship to throttle lever. Tighten gear case to angle head to 40ft. lbs. (54Nm).
  • Page 19 Tool Components Tightening Techniques 40 Series Right Angle Nutrunners 104, 204 & 304 Gear Trains Clamp angle head with bushing in vise. Tighten all other components before posi- tioning and tightening housing lock nut on angle head. Tighten 1st reduction gear case to second reduction gear case to 40ft. lbs. (54Nm). Tighten backhead to first reduction gear case securely while holding first reduction gear case with another wrench.
  • Page 20 670 Industrial Drive Lexington, SC 29072 Phone: (803) 359-1200 Fax: (803) 359-2013...
