Mounting

The HD IP Camera comes supplied with a Wall and Tripod Mount.
The Wall and Tripod Mount can be used to
mount the HD IP Camera precisely against
flat surfaces where precise alignment against a
pinhole is required.
This is done by sliding the Wall and Tripod Mount
over the camera body and locking it in place using
the locking screw provided.
The lugs of the mount can then be used to screw the
camera against a flat surface.

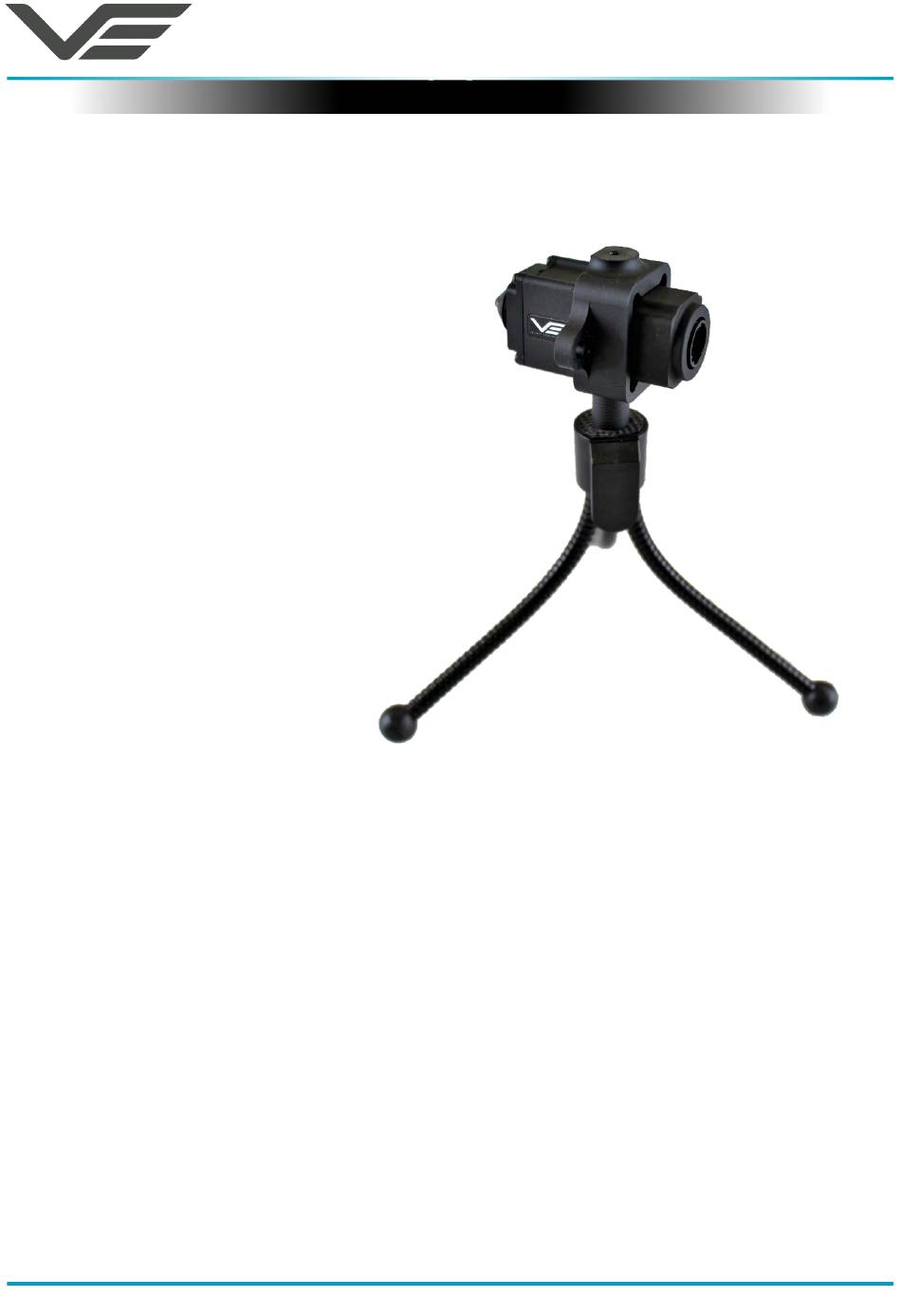

The base of the Wall and Tripod Mount holds a standard
1⁄4 20'' thread allowing it to be screwed to standard
camera tripods as shown here.
