Vestil JIB-FM Series Instruction Manual

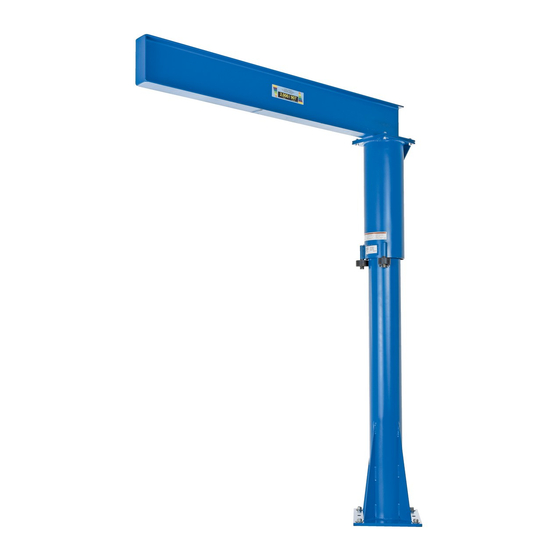

JIB-FM Series Floor Mounted Jib Cranes
RECEIVING INSTRUCTIONS:
After delivery, IMMEDIATELY remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of it on the bill
of lading and notify the freight carrier. If the product is undamaged, discard the packaging.
NOTICES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the
product is used is the responsibility of the end-user.
2) VESTIL is not liable for any injury or property damage resulting from failure to apply either:
a) Instructions in this manual; or
b) Information provided on labels attached to the product.
3) Vestil is not responsible for consequential damages sustained while assembling, using, or maintaining this
product.

Table of Contents

Jib specifications.................................................................................................................................2
Signal words...................................................................................................................................... 2
Safe use recommendations................................................................................................................... 3
FIGS. 1-5: Exploded parts diagrams and bills of materials........................................................................... 3 - 5
Assembly instructions.......................................................................................................................... 6 - 7
Function tests.................................................................................................................................... 8
Use instructions..................................................................................................................................8 - 9
Inspections........................................................................................................................................ 9
Maintenance......................................................................................................................................... 10
Labeling diagram................................................................................................................................ 10
Limited warranty................................................................................................................................. 11
Copyright 2016 Vestil Manufacturing Corp.
Rev. 7/20/2017
V M
ESTIL
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
www.vestilmfg.com
Instruction Manual
JIB-FM, MANUAL
ANUFACTURING
Fax: (260) 665-1339
e-mail: s ales@vestil.com
H U
C .
ORP
U
Page 1 of 11
