Vestil EHN-40-C Owner's Manual And Operating Instructions

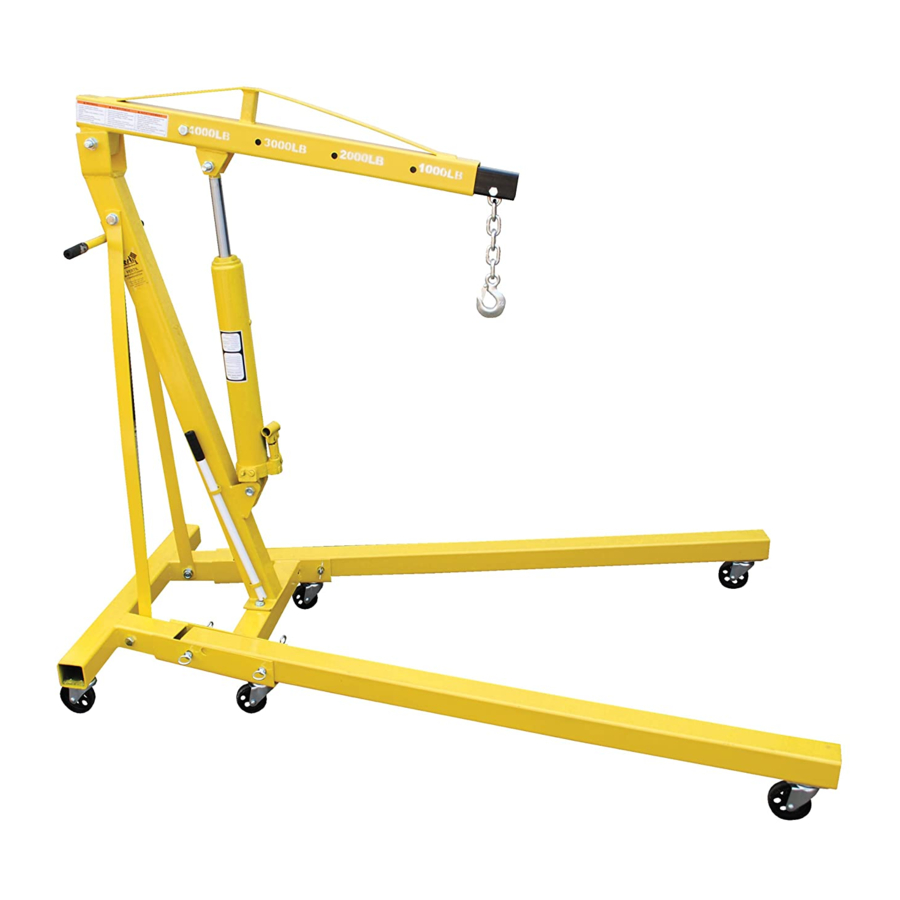

2ton foldable engine hoist
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

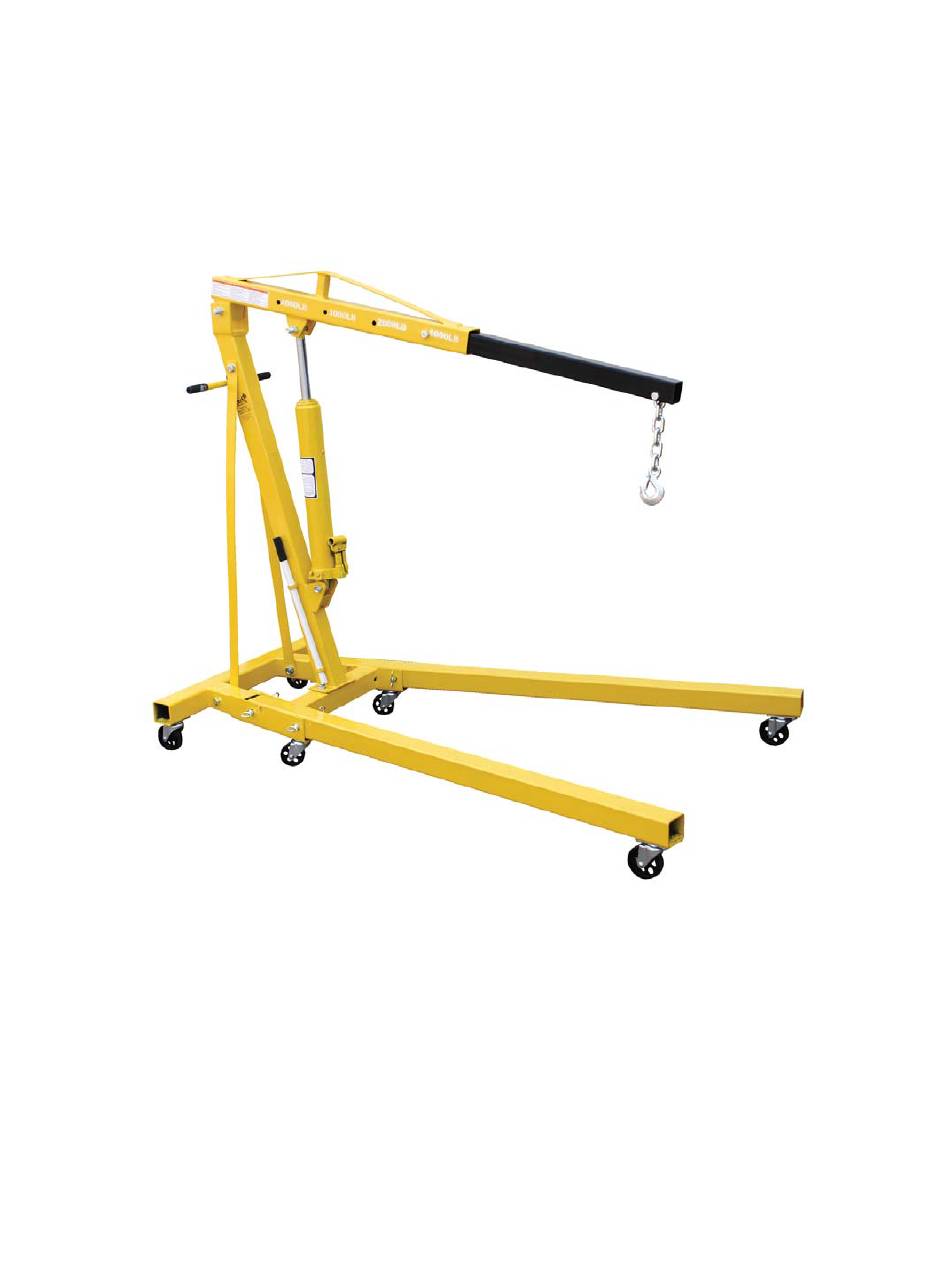

2TON FOLDABLE ENGINE HOIST
Owner's Manual and Operating Instructions
M
L N
: EHN-40-C
ODE
UMBER
INSTRUCTIONS
IMPROTANT:
IT IS IMPORTANT THAT YOU READ AND UNDERSTAND THIS INSTRUCTION
MANUAL BEFORE USING YOUR ENGINE CRANE. ALWAYS ENSURE ITS CORRECT USE, WHICH
WILL HELP PREVENT DAMAGE AND INJURY.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHN-40-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vestil EHN-40-C

Summary of Contents for Vestil EHN-40-C

  • Page 1 2TON FOLDABLE ENGINE HOIST Owner’s Manual and Operating Instructions : EHN-40-C UMBER INSTRUCTIONS IMPROTANT: IT IS IMPORTANT THAT YOU READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE USING YOUR ENGINE CRANE. ALWAYS ENSURE ITS CORRECT USE, WHICH WILL HELP PREVENT DAMAGE AND INJURY.
  • Page 2 SPECIFICATION Max. Capacity…………………………………………………………………….…….…. 4000 lbs Lifting capacity position 1…………………………………………………………….…... 4000 lbs Lifting capacity position 2…………………………………………………..…………….. 3000 lbs Lifting capacity position 3……………………………………………………….…….…...2000 lbs Lifting capacity position 4………………………………………………………..……….. 1000 lbs Max. Lifting height min. jib extension...……………………………………………..…..86” Max. Lifting height max. jib extension….………………………………….………….….. 102” Overall width………………………………………………………………………………..
  • Page 3 OPERATING INSTRUCTIONS WARNING!  THIS PUMP LONG RAM IS DESIGNED FOR LIFTING PURPOSES ONLY. NOT FOR SUPPORTING LOADS.  DO NOT LOAD BEYOND ITS REATED CAPACITY. IMPORTANT: Its is possible that air has got into the hydraulic system, causing poor lifting performance. Purge any air form the system by fully opening release valve (turn handle counterclockwise as shown), then while holding the boom down, operate pump handle rapidly several times.
  • Page 4 ASSEMBLY DIAGRAM...
  • Page 5 PARTS LIST REF# DESCRIPTION REF# DESCRIPTION Base Bolt M16x90 Boom Bolt M16x80 Main Post Bolt M14x100 Bolt M12x80 Lock Pin Bolt M8x20 Support Strap Bolt M8x12 Split ”R” Pin Nut M16 Chain & Hook Assembly Flat WasherØ16 3½”Swivel Castor Nut M14 3”Swivel Castor Flat WasherØ14 8Ton Long Ram Jack...
  • Page 6 (you) for warranty service. Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or from an authorized distributor AND Vestil has been fully paid.
