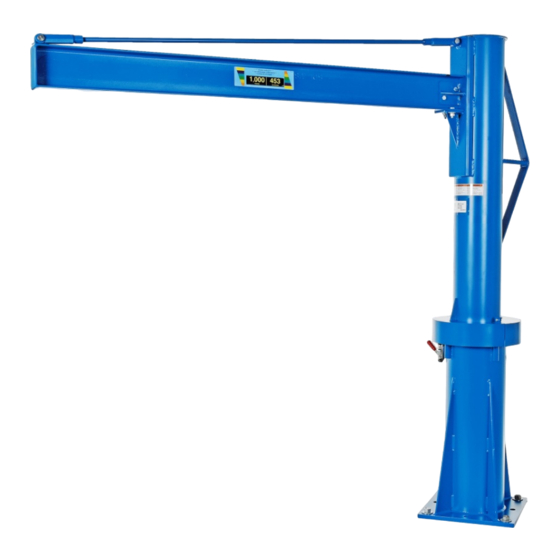

Vestil JIB-P Series Instruction Manual

Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, immediately record a complete
description of the damage on the bill of lading. If the product is undamaged, discard the packaging.
NOTICES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the
product is used is exclusively the responsibility of the owner/end-user.
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or
b) Information provided on labels affixed to the product.
Vestil is not responsible for any consequential damages sustained while assembling, using, or maintaining this
product.

Table of Contents

Crane specifications.......................................................................................................................... 2
Signal words.................................................................................................................................... 2
Safe use recommendations................................................................................................................. 3
Function tests................................................................................................................................... 3
FIGS. 1-3: Exploded parts diagrams and bills of materials.......................................................................... 4 - 6
Assembly instructions........................................................................................................................ 7 - 9
Operation instructions........................................................................................................................ 10-11
Inspections & Maintenance.................................................................................................................. 11-12
Labeling diagram............................................................................................................................... 13
Limited warranty................................................................................................................................ 14
Copyright 2016 Vestil Manufacturing Co.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
JIB-P-Series Multi-Station Jib Cranes
Instruction Manual
Rev. 6/12/2018
V M
ESTIL ANUFACTURING
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com
JIB-P, MANUAL
