Vestil JIB-HC Owner's Manual

Vestil Manufacturing Company
2999 N. Wayne Street, P.O. Box 507
Angola, IN 46703 USA
Phone (260) 665-7586 • Fax (260) 665-1339
sales@vestil.com • www.vestil.com
Contents
Warnings and Safety Instructions.................... 1
Receiving Instructions ..................................... 1
Warranty .......................................................... 1
Inspection Instructions .................................... 2
JIB-HC Installation Instructions ....................... 3
WARNINGS & SAFETY INSTRUCTIONS
Read owner's manual completely before operating unit!
• Keep clear when operating.
• Never go under unit if there is weight on unit.
• Remove weight before working on unit.
• Always inspect unit before each use.
• Never use if unit is damaged.
• Never lift more than the rated capacity.
• Never mount unit near electrical lines.
• When mounting this unit be sure supporting surface
is sufficient.
• Make sure all operator safety labels are in place.
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected
prior to shipment. However, it is possible that the
unit may incur damage during transit. If you see
damage when unloading make a note of it on the
SHIPPER RECEIVER.
Remove all packing and strapping material,
inspect for damage. IF DAMAGE IS EVIDENT,
FILE A CLAIM
IMMEDIATELY! Also, check the platform size, type
of power unit, etc., to see that the unit is correct for
the intended application.
WITH THE CARRIER
Revised 09-10
A company dedicated to solving ergonomic and material
handling problems since 1955.
OWNER'S
MANUAL
TIE ROD, WALL & FLOOR MOUNTED JIBS
Model JIB-HC, JIB-LC, JIB-FM
JIB-LC Installation Instructions ........................ 4
JIB-FM Installation Instructions ..................... 5-9
Labeling diagrams .......................................... 10
Limited Warranty............................................. 11
WARRANTY
This product is warranted for 90 DAYS from
date of purchase to be free of manufacturing defects
in material and workmanship. The manufacturer's
obligation hereunder is limited to repairing such
products during the warranty period, provided the
product is sent prepaid back to the factory.
This warranty does not cover normal wear of
parts or damage resulting from any of the following:
negligent use or misuse of the product, use or
application contrary to
installation instructions, or disassembly, repair or
alteration by any person prior to authorization from
a factory representative.

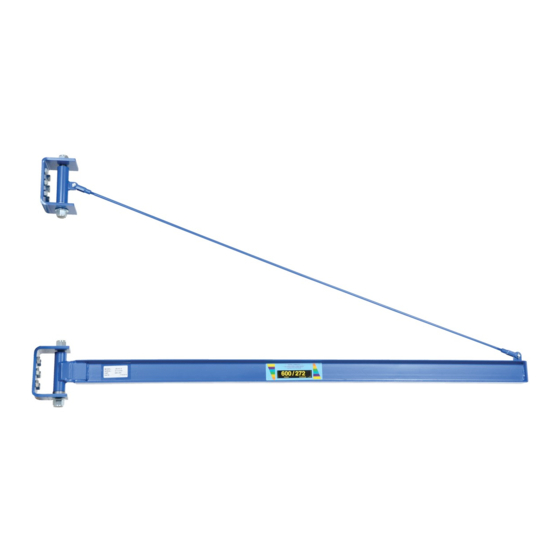

JIB-HC
TIE ROD, WALL & FLOOR MOUNTED JIBS
JIB-FM
JIB-LC
1
