Vestil JIB-CB Series Instruction Manual

Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the packaging.
Inspect the product closely to determine whether it sustained damage during transport. If damage is discovered,
immediately record a complete description of the damage on the bill of lading. If the product is undamaged,
discard the packaging.
NOTICES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the
product is used is exclusively the responsibility of the owner/end-user.
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or
b) Information provided on labels affixed to the product.
Vestil is not responsible for any consequential damages sustained while assembling, using, or maintaining this
product.

Table of Contents

Product specifications........................................................................................................................ 2
Signal words.................................................................................................................................... 2
Safe use recommendations................................................................................................................. 3
Function tests................................................................................................................................... 3
FIG. 1: Exploded parts diagram and bill of materials.................................................................................. 4 - 6
Assembly instructions........................................................................................................................ 6 - 7
Operation instructions........................................................................................................................ 8 - 9
Inspections & Maintenance.................................................................................................................. 9
Labeling diagram............................................................................................................................... 10
Limited warranty................................................................................................................................ 11
Copyright 2016 Vestil Manufacturing Co.
Rev. 9/21/2016
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868

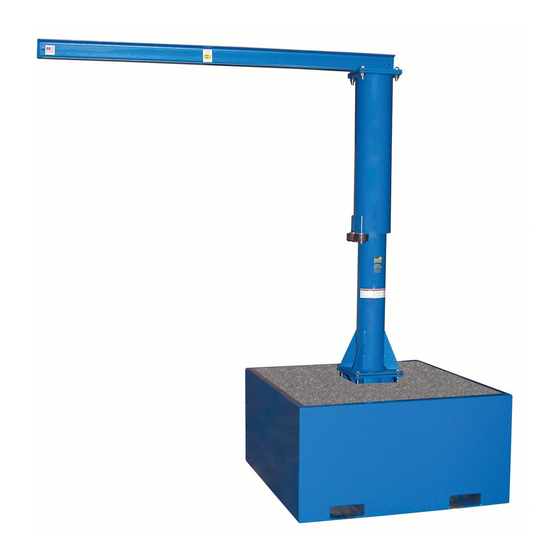

JIB-CB Counterbalanced Jib Cranes
Instruction Manual
V M
ESTIL ANUFACTURING
Fax: (260) 665-1339
www.vestilmfg.com e-mail:
JIB-CB, MANUAL
C .
ORP
s ales@vestil.com
H U U
Page 1 of 11
