Savant SmartControl SSC-W002G Quick Reference Manual

Savant® SmartControl 2 Wi-Fi Controller (SSC-W002G)
Quick Reference Guide
Box Contents
(1) SmartControl 2 Controller (SSC-W002G)
(1) Installation Kit (075-0174-xx)
(1) Mounting Plate (074-0569-xx)
(1) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 5V DC 1.2A Power Supply (025-0207-xx)
(1) Cable Tie (014-0071-xx)
(1) Product Regulatory Document (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
Height
0.64 in
Device
(1.62 cm)
3 in
Shipping
(7.62 cm)
Power
Input 5V DC 1.2A
Maximum 6 watts
Standards
Wi-Fi (802.11 b/g/n 2.4 GHz)
Wireless
IMPORTANT! 802.11r (fast roaming) is not
supported.
Security WPA™, WPA2™, WPA/WPA2™, WEP
Regulatory
FCC Part 15
Safety and
Emissions
Contains FCC ID: TLZ-CU277
Contains IC: 6100A-CU277
RoHS Compliant
Minimum Supported Releases
Savant OS da Vinci 8.4
SSC-W002G Quick Reference Guide | 009-1505-02
Copyright © 2021 Savant Systems, Inc. | 210607
Width Depth Weight
2.70 in 2.67 in 0.50 lbs
(6.85 cm) (6.78 cm) (0.22 kg)
7 in 10 in 1.0 lbs
(17.78 cm) (25.40 cm) (0.46 kg)
UKCA
CE C-Tick

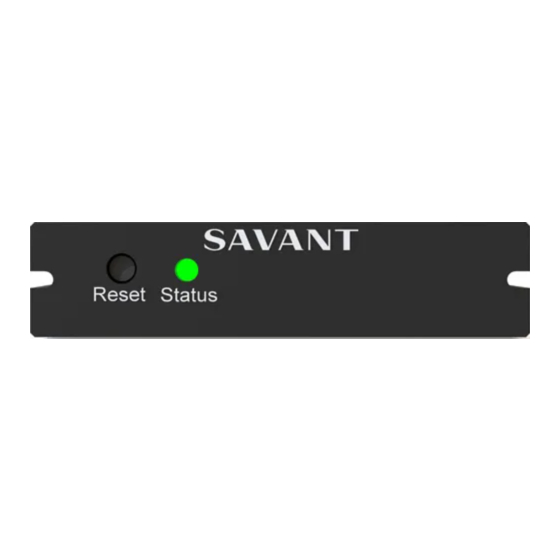

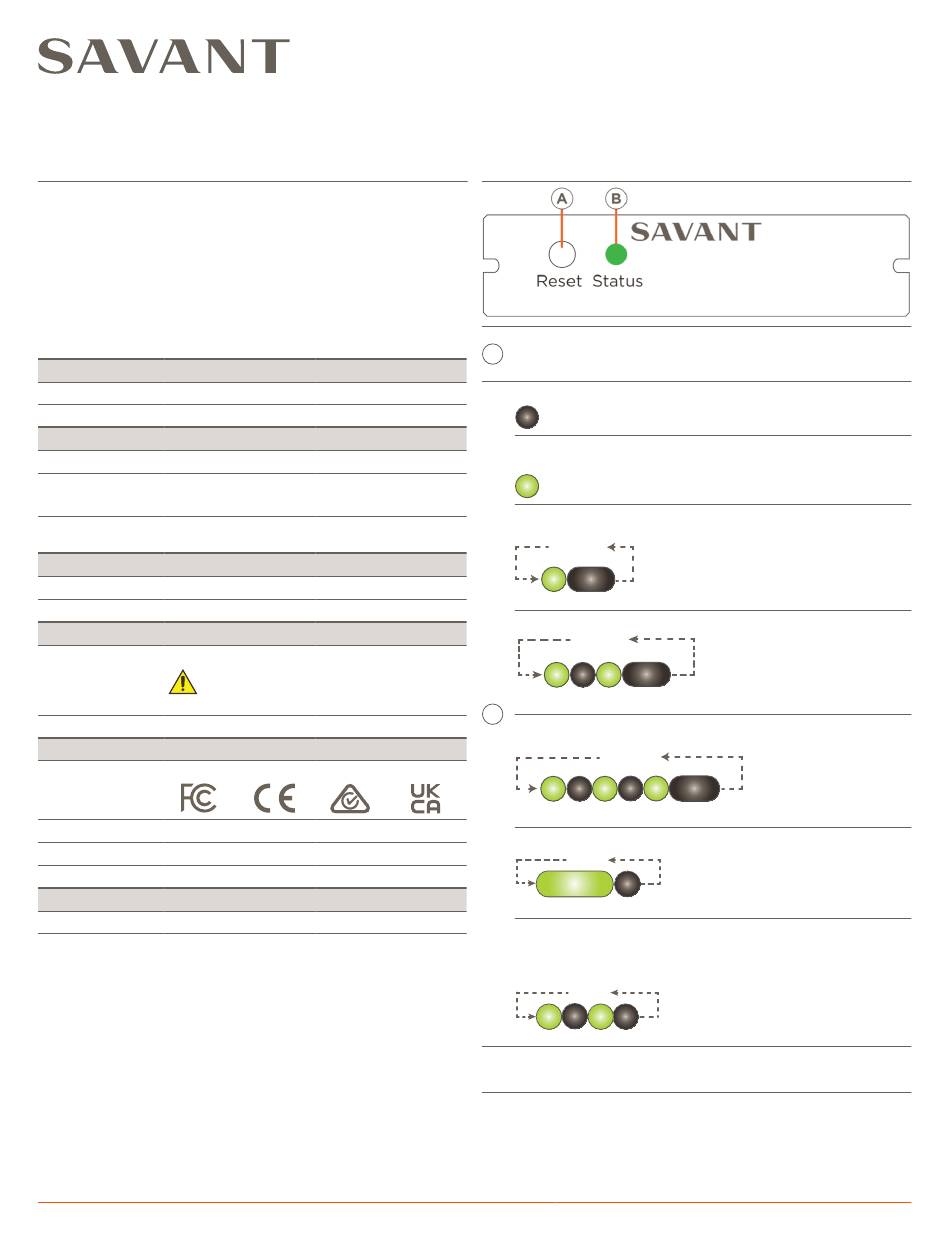

Front Panel
Press and hold for five seconds while powered On to clear the
A
network settings. The Status LED blinks rapidly when reset is
complete.
Off: No Power
On Solid: Provisioned to the local network and communicating
with the Savant System Host.
Blinks Once: In Provisioning Mode. Ready to be added to the
local network.
REPEAT
.5s 1s
Blinks Twice: Establishing connection with the local network.
REPEAT
.5s .5s .5s
B
Blinks Three Times: Connected to the local network. Is
connecting to the Host.
REPEAT
.5s .5s .5s .5s
Short Off Blink: Firmware is updating.
REPEAT
1.5s .5s
Rapid Blink: The reset button was held down for at least five
seconds and the SSC-W002G is performing a factory reset. After
reset, all network settings are cleared and the factory defaults
are set.
REPEAT
.1s .1s .1s .1s
Network Guidelines
For more information, see the Savant Device Networking Guidelines
on the Savant Customer
1 of 2
1s
.5s 1s
Community.
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
