Elite ProAV Pro Frame Acoustic Series User Manual

Elite ProAV Pro Frame Acoustic Series User Manual

Acoustically transparent fixed frame projection screen

Advertisement

Quick Links

Hardware and Parts List
1. Frame Parts x 6 pcs
(4 top/bottom frame pcs. + 2 side frame pcs)
2. Tension Rods x 6 pcs
(4 top/bottom rods + 2 side rods)
3. Screen Material x 1 pc
4. Black backing material x 1 pc
5. Center joints x 2 pcs
6. Elbow Joints x 4pcs
7. Wall brackets x 2-4pcs
Note: Please make sure all parts are included in your package before proceeding to assemble your fixed
frame projection screen.
Frame Assembly

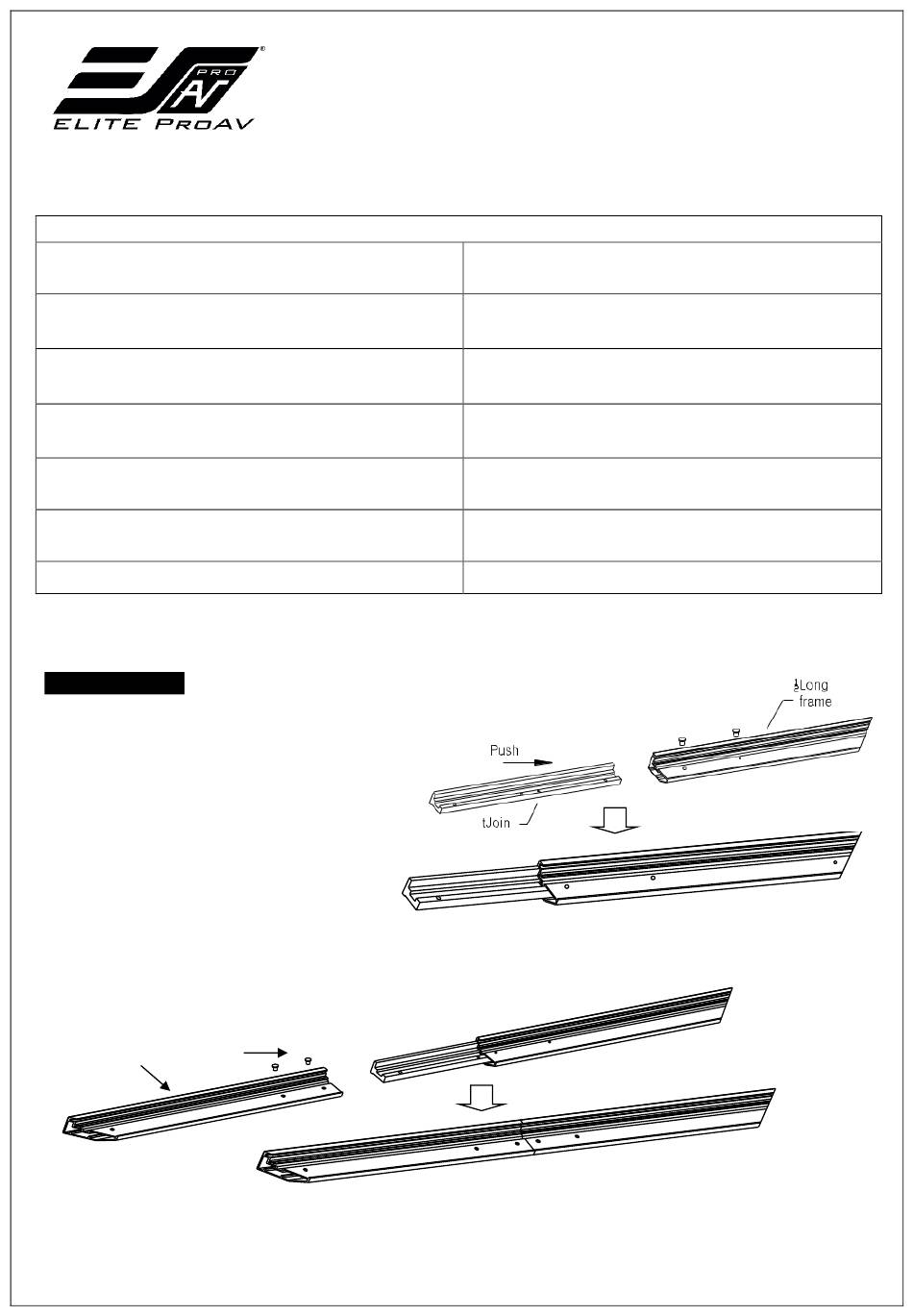

1. Insert the center joint connector to the
horizontal frame piece and then fasten it with
2screws.
2. Insert the other horizontal frame piece to the center joint connector and then fasten it with 2 screws.
1/2Long frame
Make sure the frame piece lines up correctly before you tighten the screws completely.
01032020JA
Acoustically Transparent Fixed Frame Projection Screen
Push
Pro Frame Acoustic Series
8. Wood Screws x 8pc and Drywall anchors x 8pcs
9. M5x15 Screws x 16 pcs
10. Center Support Bar x 1-2 pcs
(depending on model/size)
11. Support joiner x 2-4 pcs (depending on model/size)
12. Fix Plates x 30-90 pcs (depending on model/size)
13. Rubber hammer (mallet) x 1 pc
14. Screw driver x 1 pc
1
User's Guide
www.elilteproav.com
