Thank you for choosing an Elite ProAV fixed frame projection screen! Please read through this user guide before
utilizing the screen. Correct usage and maintenance will ensure a long product life.
Care & Use Instructions：
Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the
points below to prevent that from occurring:
▪
Do not touch the projection surface with your hands
▪
Do not write or draw on the projection surface
▪
Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material.
▪
Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
▪
Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.

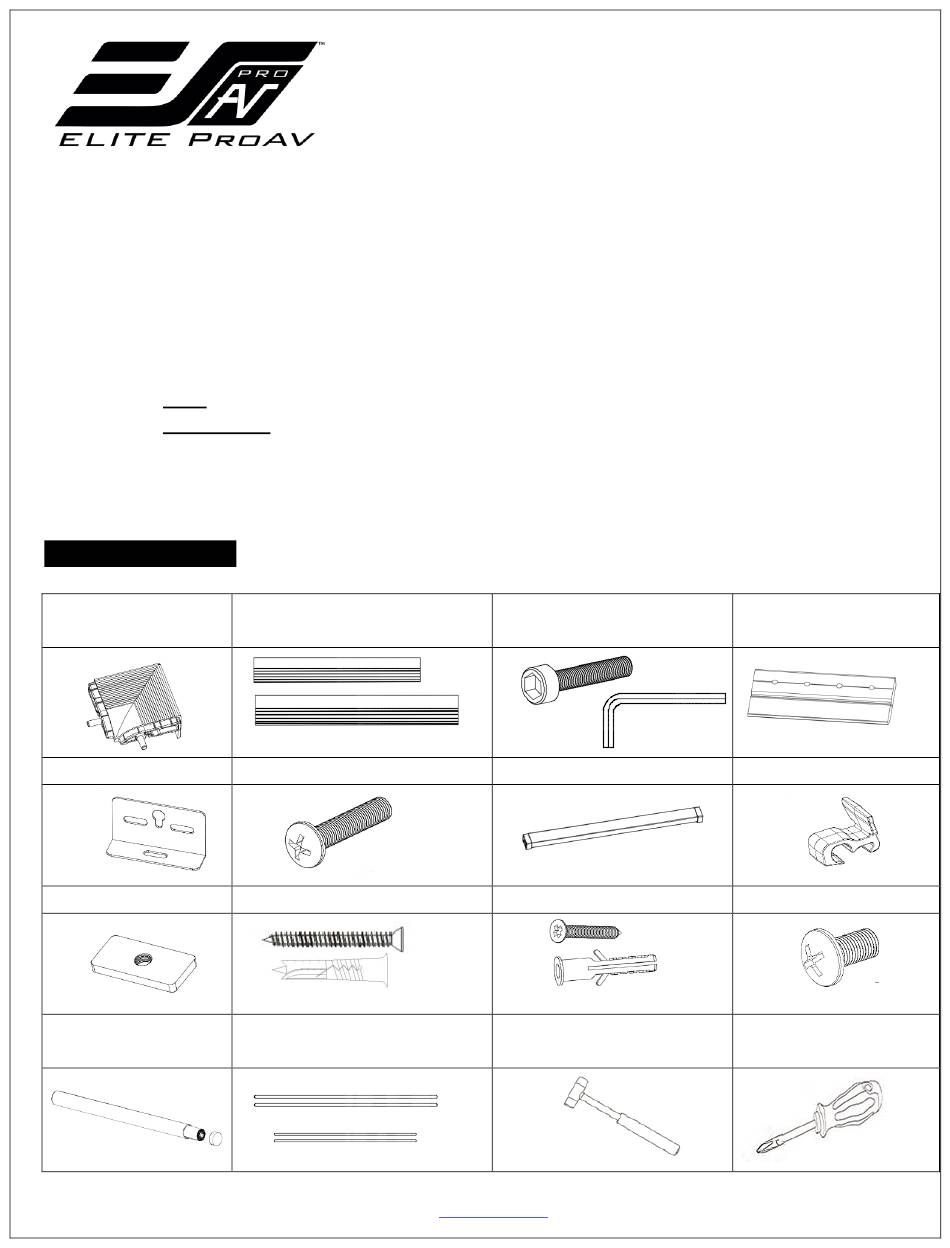

Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x4 pcs
E. Wall brackets x4 pcs
I. Connectorx5 pcs
L. Screen Material x1pc
09252018-JA
User's Guide
B. Top/Bottom horizontal framex4 pcs
Left/Right vertical frame x2 pcs
F. Screws for support bar x1-2pcs
J. M5x50Screw and anchor x6-12pcs
M. Fiber glass rod x 6 pcs
(4 top/bottom rods + 2 side rods)
Pro Frame Series
Fixed Frame Projection Screen
C. M6*30 Screws x8 pcs
M5 allen wrench x1 pc
G. Center support bar x1-2 pcs
J. Screw and anchor x 8-12 pcs（2） K. M6*10 screw x12pcs
N. Rubber mallet x 1 pc
www.eliteproav.com
D. Center joints x2 pcs
H. Retention clips x1 bag
O. Phillips screwdriver x1pc
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elite ProAV Pro Frame Series
Summary of Contents for Elite ProAV Pro Frame Series
- Page 1 Fixed Frame Projection Screen User’s Guide Thank you for choosing an Elite ProAV fixed frame projection screen! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life. Care & Use Instructions：...
-
Page 2: Frame Assembly
Frame Assembly 1. Insert the center joint into one of the ½ horizontal frames (B) and fasten it with the two M6x10 screws(K). 2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M6x10 screws(K). 3. - Page 3 Four corners join correctly to form a perfect rectangle. Use the included allen wrench to fasten the M6x30 screws (C) into each corner by aligning the frame screw holes to the holes in the elbow joint (A). Attaching the screen material to the frame 1.
- Page 4 4. Retention clip installation (1) Begin by securing the four corners in the following order A→B→C→D as shown below. (2) Attach the screen material’s edge (fiberglass rod) in the c-shape cradle side of the retention clip (H) and pull up the retention clip to secure it on the frame. Pull up Top cleat part of retention clips on frame...
-
Page 5: Installation
5. Then secure the brackets using the M6x10 Screw (K) into the connector (I) on the top and bottom of the frame. For a local Elite ProAV contact or Technical Support, please visit www.eliteproav.com 09252018-JA www.eliteproav.com...
