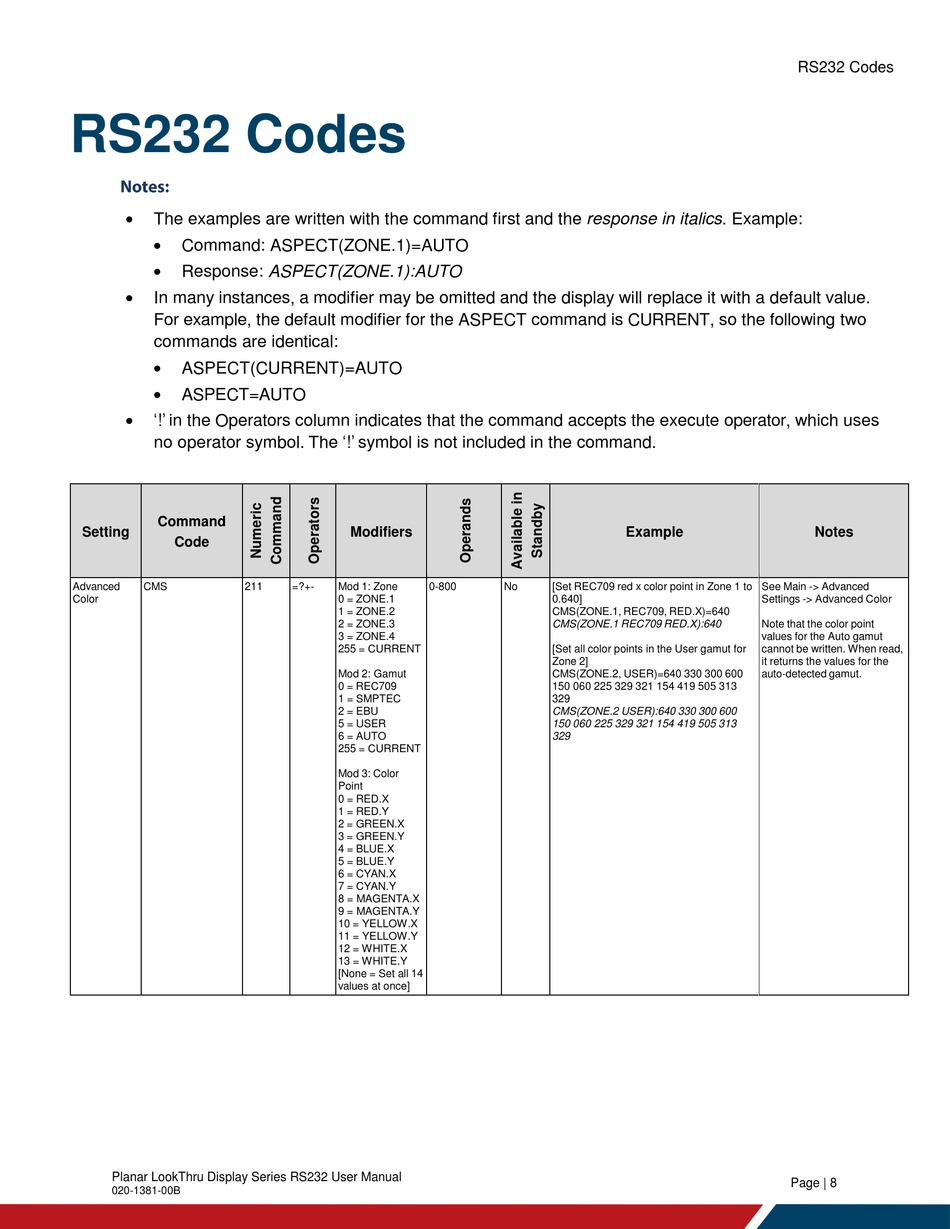

Planar LookThru LO552 Series User Manual page 8

RS232 Codes

The examples are written with the command first and the response in italics. Example:

Command: ASPECT(ZONE.1)=AUTO

Response: ASPECT(ZONE.1):AUTO

In many instances, a modifier may be omitted and the display will replace it with a default value.
For example, the default modifier for the ASPECT command is CURRENT, so the following two
commands are identical:

ASPECT(CURRENT)=AUTO

ASPECT=AUTO

'!' in the Operators column indicates that the command accepts the execute operator, which uses
no operator symbol. The '!' symbol is not included in the command.
Command
Setting
Code
Advanced CMS 211
Color
Planar LookThru Display Series RS232 User Manual
020-1381-00B
Modifiers
=?+- Mod 1: Zone 0-800
0 = ZONE.1
1 = ZONE.2
2 = ZONE.3
3 = ZONE.4
255 = CURRENT
Mod 2: Gamut
0 = REC709
1 = SMPTEC
2 = EBU
5 = USER
6 = AUTO
255 = CURRENT
Mod 3: Color
Point
0 = RED.X
1 = RED.Y
2 = GREEN.X
3 = GREEN.Y
4 = BLUE.X
5 = BLUE.Y
6 = CYAN.X
7 = CYAN.Y
8 = MAGENTA.X
9 = MAGENTA.Y
10 = YELLOW.X
11 = YELLOW.Y
12 = WHITE.X
13 = WHITE.Y
[None = Set all 14
values at once]
Example
No [Set REC709 red x color point in Zone 1 to
0.640]
CMS(ZONE.1, REC709, RED.X)=640
CMS(ZONE.1 REC709 RED.X):640
[Set all color points in the User gamut for
Zone 2]
CMS(ZONE.2, USER)=640 330 300 600
150 060 225 329 321 154 419 505 313
329
CMS(ZONE.2 USER):640 330 300 600
150 060 225 329 321 154 419 505 313
329
RS232 Codes
Notes
See Main -> Advanced
Settings -> Advanced Color
Note that the color point
values for the Auto gamut
cannot be written. When read,
it returns the values for the
auto-detected gamut.
