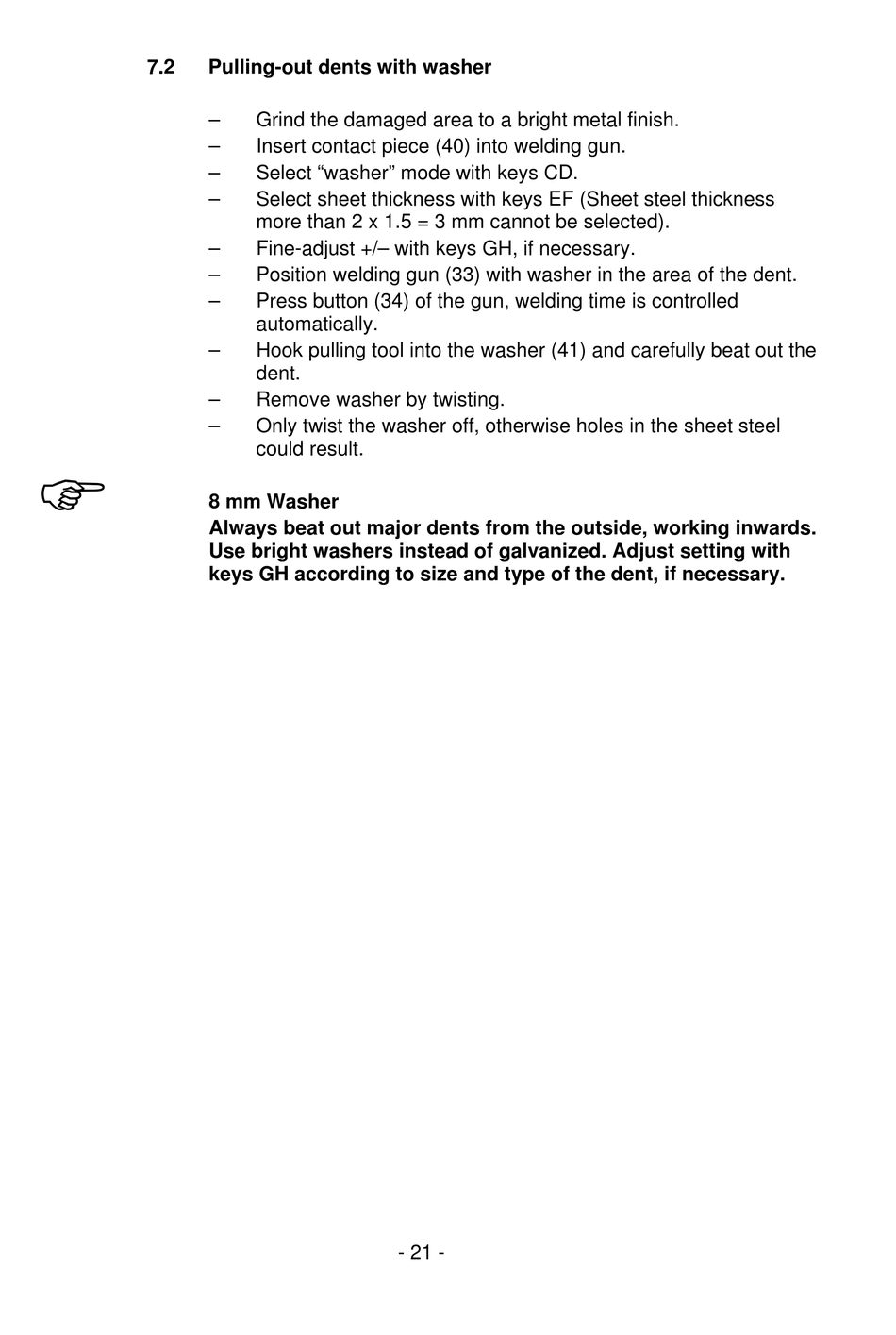

7.2


Pulling-out dents with washer

– Grind the damaged area to a bright metal finish.
– Insert contact piece (40) into welding gun.
– Select "washer" mode with keys CD.
– Select sheet thickness with keys EF (Sheet steel thickness
more than 2 x 1.5 = 3 mm cannot be selected).
– Fine-adjust +/– with keys GH, if necessary.
– Position welding gun (33) with washer in the area of the dent.
– Press button (34) of the gun, welding time is controlled
automatically.
– Hook pulling tool into the washer (41) and carefully beat out the
dent.
– Remove washer by twisting.
– Only twist the washer off, otherwise holes in the sheet steel
could result.
8 mm Washer
Always beat out major dents from the outside, working inwards.
Use bright washers instead of galvanized. Adjust setting with
keys GH according to size and type of the dent, if necessary.
- 21 -
