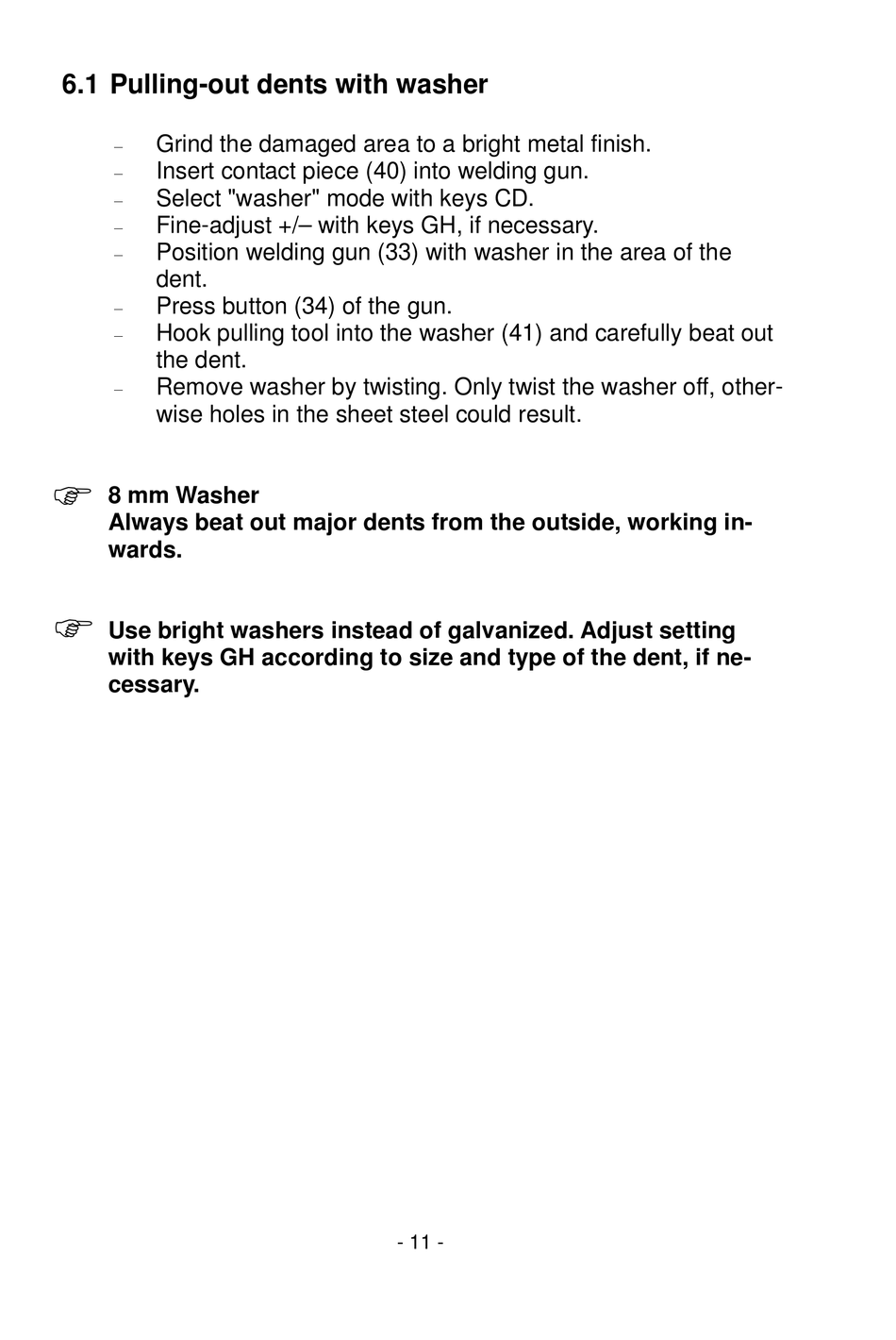

6.1 Pulling-out dents with washer
Grind the damaged area to a bright metal finish.
Insert contact piece (40) into welding gun.
Select "washer" mode with keys CD.
Fine-adjust +/– with keys GH, if necessary.
Position welding gun (33) with washer in the area of the
dent.
Press button (34) of the gun.
Hook pulling tool into the washer (41) and carefully beat out
the dent.
Remove washer by twisting. Only twist the washer off, other-
wise holes in the sheet steel could result.
8 mm Washer
Always beat out major dents from the outside, working in-
wards.
Use bright washers instead of galvanized. Adjust setting
with keys GH according to size and type of the dent, if ne-
cessary.
- 11 -
