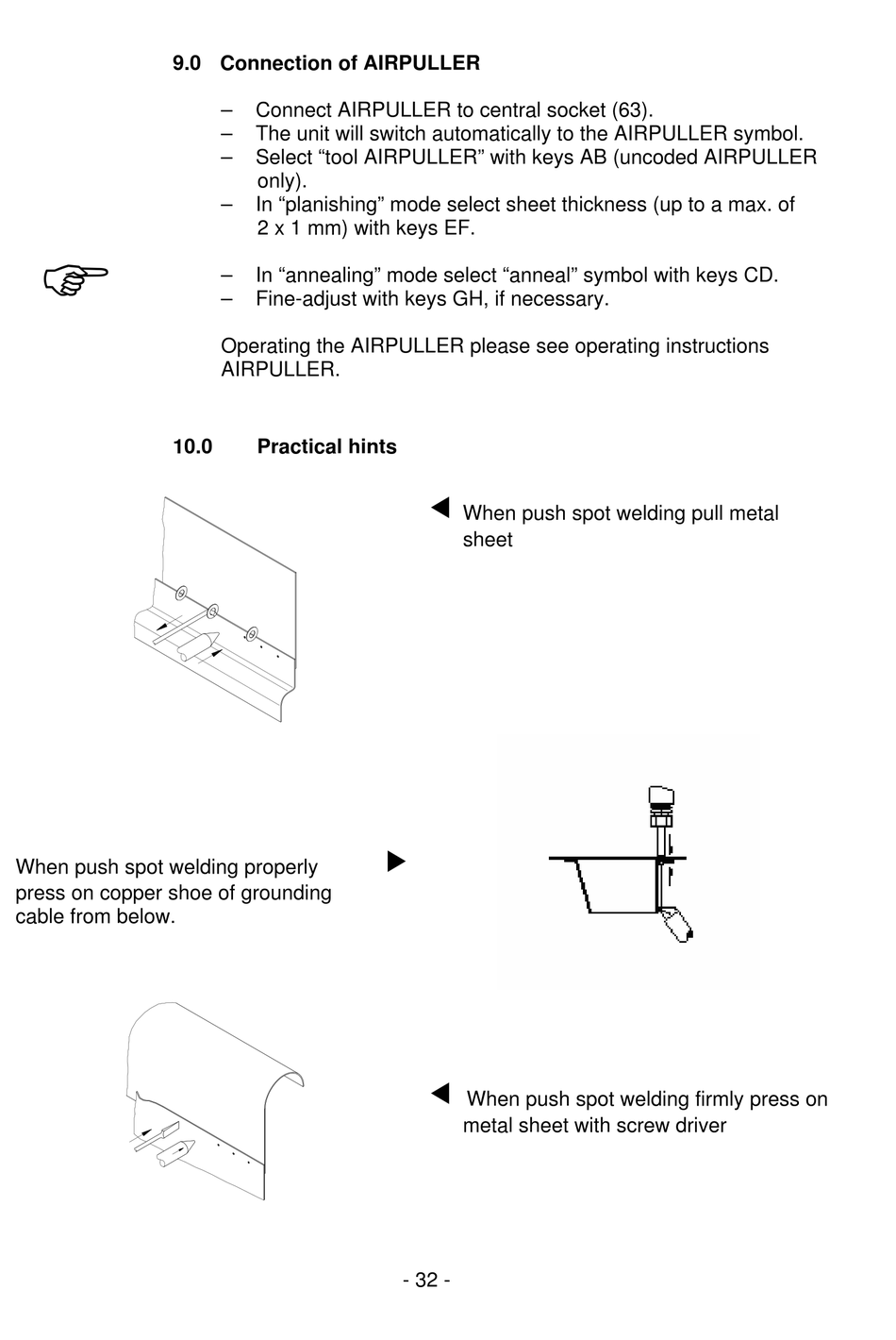

9.0 Connection of AIRPULLER


10.0
When push spot welding properly
press on copper shoe of grounding
cable from below.
– Connect AIRPULLER to central socket (63).
– The unit will switch automatically to the AIRPULLER symbol.
– Select "tool AIRPULLER" with keys AB (uncoded AIRPULLER
only).
– In "planishing" mode select sheet thickness (up to a max. of
2 x 1 mm) with keys EF.
– In "annealing" mode select "anneal" symbol with keys CD.
– Fine-adjust with keys GH, if necessary.
Operating the AIRPULLER please see operating instructions
AIRPULLER.

Practical hints



When push spot welding pull metal
sheet

When push spot welding firmly press on
metal sheet with screw driver
- 32 -
