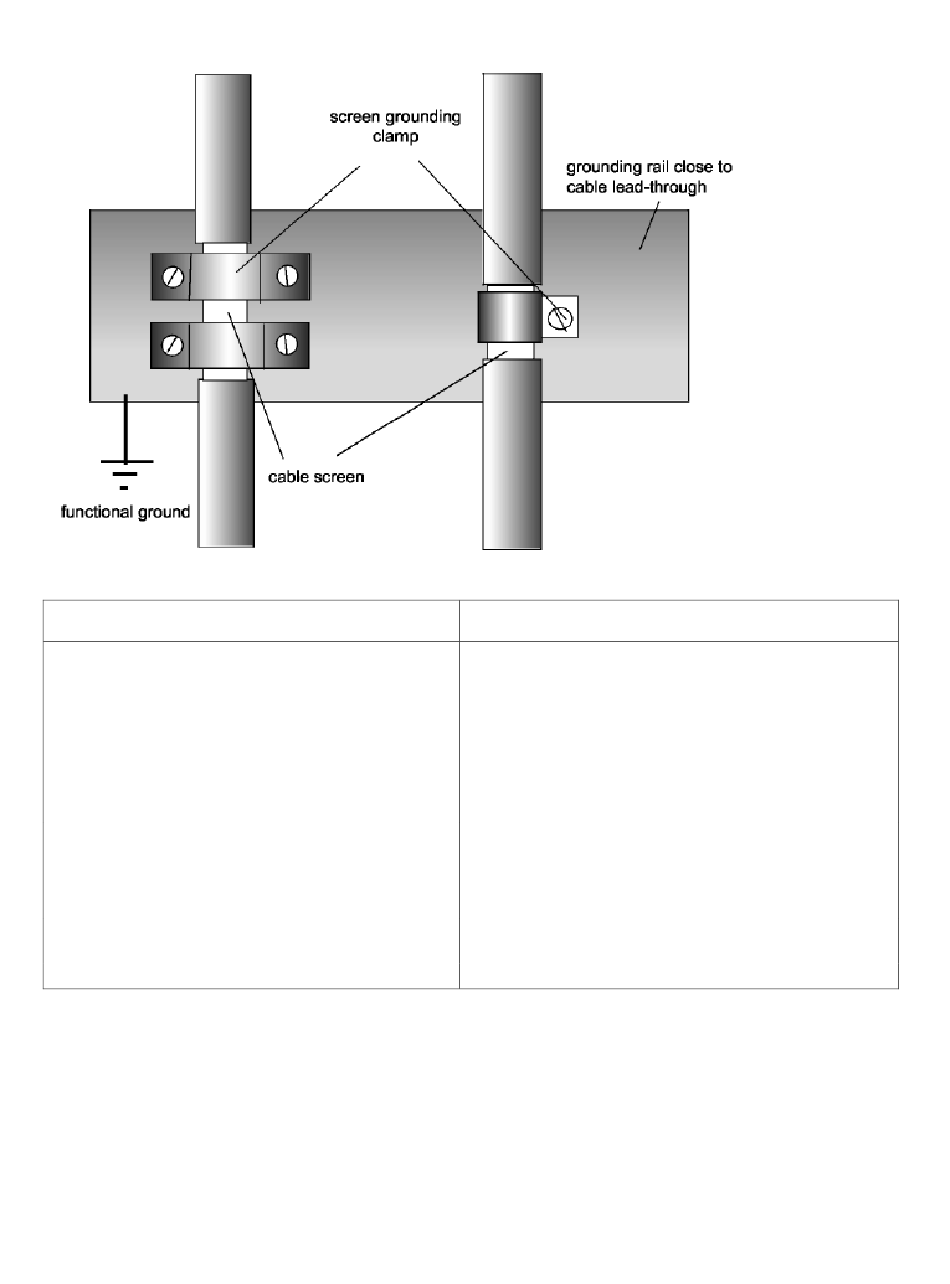

PROFIBUS cables ...
and cables for ...
•
Bus signals, e.g. PROFIBUS
•
Data signals for PC´s, programming
devices, printers etc.
•
Screened analog inputs
•
Unscreened DC voltages (<= 60V)
•
Screened process signals (<= 25 V)
•
Unscreened AC voltages (<= 25V)
•
Coaxial cables for monitors
•
DC voltages from 60 V ... 400 V
(unscreened)
•
AC voltages from 25V ... 400 V
(unscreened)
•
DC and AC voltages > 400 V (unscreened)
•
Telephone cables
•
For areas with explosion hazard

Laying cables outside of control cabinets

All cable ducts should be constructed of electrically conducting material and connected to functional
ground at regular intervals. Bus cables should not be subject to mechanical loads which exceed the
manufacturer's specifications. If this cannot be avoided, additional protective measures should be taken,
e.g. by laying the cables in a steel pipe or rugged metal duct. The pipe or duct should then be grounded at
regular intervals and protected against corrosion.
42
must be laid ...
in the same cable loom or cable duct.
in separate cable looms or cable ducts without
minimum spacing requirements
in separate cable looms or cable ducts without
minimum spacing requirements
