Summary of Contents for Control Technology 2600XM
- Page 1 (217) 352-9330 | Click HERE Find the Control Technology 2203 at our website:...
-
Page 2: Table Of Contents

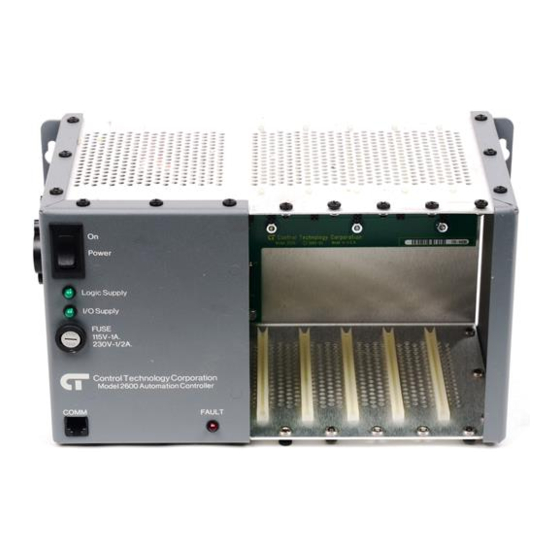

• Controller Hardware - C This guide contains installation and applications information for the model 2600XM Automation Con- troller. The Model 2600XM has a flexible plug-in architecture, which supports a variety of modules, and comes in two sizes: • The 2600XM-5, the base model, containing slots for five modules and a plug-in CPU •... -
Page 3: Specifications
For controller performance specifications and information on individual modules, refer to their respec- tive data sheets and installation and applications guides. Not mutually inclusive. Model 2600XM Controller Installation Guide Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 4: Dimensions And Mounting Instructions For The Model 2600Xm
Dimensions and Mounting Instructions for the Model 2600XM The Model 2600XM Automation Controller is provided with mounting ears, allowing them to be easily mounted to a flat surface (for example, an NEMA-rated electrical enclosure) with four mounting bolts. You should follow the guidelines described in this installation guide to ensure a successful design. -
Page 5: Inserting Modules Into The Controller
Inserting Modules into the Controller The Model 2600XM controller accepts a variety of plug-in modules. You insert the modules into one of the slots of your Model 2600XM controller. Any combination of modules, subject to system limits, may be inserted into the controller. - Page 6 The Model 2699 bracket requires an additional 2 in of clearance for the front of the controller. Control Technology Corporation Control Technology Corporation proprietary, Reproduction or distribution forbidden. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 7: Model 2600Xm Power Connections
Model 2600XM Power Connections Connecting AC Power The Model 2600XM contains an internal power supply which provides two mutually- isolated voltages (+5 VDC and +24 VDC) for the operation of the controller. Also included are two LED indicators for these voltages and a power ON-OFF switch. -
Page 8: The Controller’S Power System
Consult CTC for further information. Control Technology Corporation Control Technology Corporation proprietary, Reproduction or distribution forbidden. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 9: Status Light Description
Status Light Description The status light on the Model 2600XM can indicate one of the following conditions: • Software fault: A periodic flashing light on the 2600XM indicates a program software fault. This means the controller was unable to execute due to an applica- tion problem within the program. -
Page 10: Setting-Up Controller Communications
RS-232 port or on an Ethernet network. Using the RS-232 Port for Controller Communications The RS-232 port on your Model 2600XM controller provides a means for both program- ming and data communications via a personal computer using Quickstep. The controller is also equipped with a built-in protocol allowing direct computer communications with the controller’s RS-232 port. - Page 11 DTE device. DB-9 Connector Modular Jack Black Comm Common Yellow DB9-232 DB-25 Connector Modular Jack Green Common Black Comm Comm Yellow Common DB25-232 Model 2600XM Controller Installation Guide Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 12: Using Ethernet For Controller Communications
Setting-up Controller Communications Using Ethernet for Controller Communications Your 2600XM controller can access an ethernet network for controller-computer com- munications using a Model 2217 or 2717 Ethernet Module. The 2217 or 2717 contains both 10/100BaseT connections, as well as two RS-232 ports. The connections to the controller Ethernet port use Ethernet IEEE 802.3 standard 10BaseT connections.
