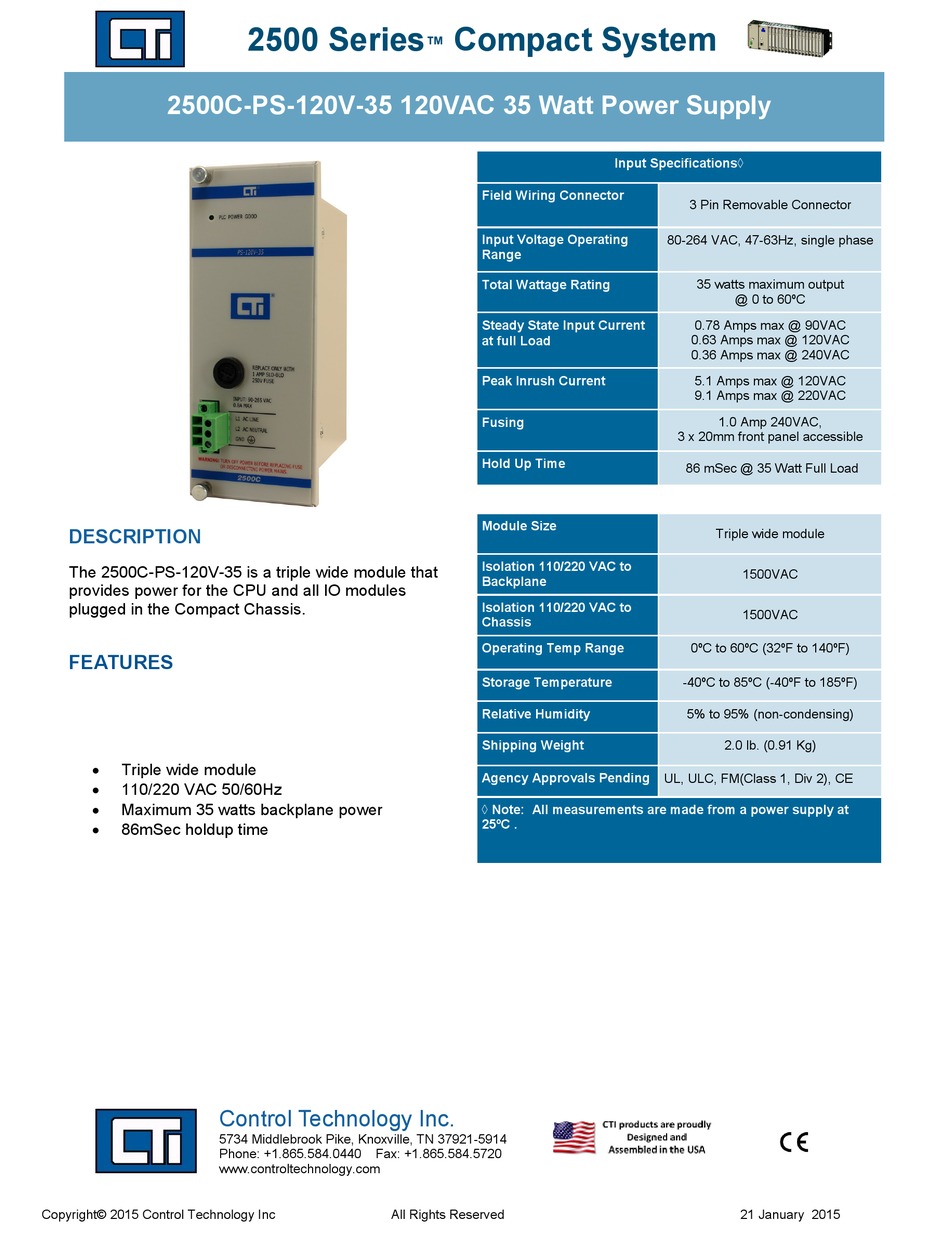

2500C-PS-120V-35 120VAC 35 Watt Power Supply
DESCRIPTION
The 2500C-PS-120V-35 is a triple wide module that
provides power for the CPU and all IO modules
plugged in the Compact Chassis.
FEATURES

Triple wide module

110/220 VAC 50/60Hz

Maximum 35 watts backplane power

86mSec holdup time
Control Technology Inc.
5734 Middlebrook Pike, Knoxville, TN 37921-5914
Phone: +1.865.584.0440
www.controltechnology.com
Copyright© 2015 Control Technology Inc
2500 Series
™
Fax: +1.865.584.5720
All Rights Reserved
Compact System
Input Specifications◊
Field Wiring Connector
Input Voltage Operating
Range
Total Wattage Rating
Steady State Input Current
at full Load
Peak Inrush Current
Fusing
Hold Up Time
Module Size
Isolation 110/220 VAC to
Backplane
Isolation 110/220 VAC to
Chassis
Operating Temp Range
Storage Temperature
Relative Humidity
Shipping Weight
Agency Approvals Pending
◊ Note: All measurements are made from a power supply at
25ºC .
3 Pin Removable Connector
80-264 VAC, 47-63Hz, single phase
35 watts maximum output
@ 0 to 60ºC
0.78 Amps max @ 90VAC
0.63 Amps max @ 120VAC
0.36 Amps max @ 240VAC
5.1 Amps max @ 120VAC
9.1 Amps max @ 220VAC
1.0 Amp 240VAC,
3 x 20mm front panel accessible
86 mSec @ 35 Watt Full Load
Triple wide module
1500VAC
1500VAC
0ºC to 60ºC (32ºF to 140ºF)
-40ºC to 85ºC (-40ºF to 185ºF)
5% to 95% (non-condensing)
2.0 lb. (0.91 Kg)
UL, ULC, FM(Class 1, Div 2), CE
