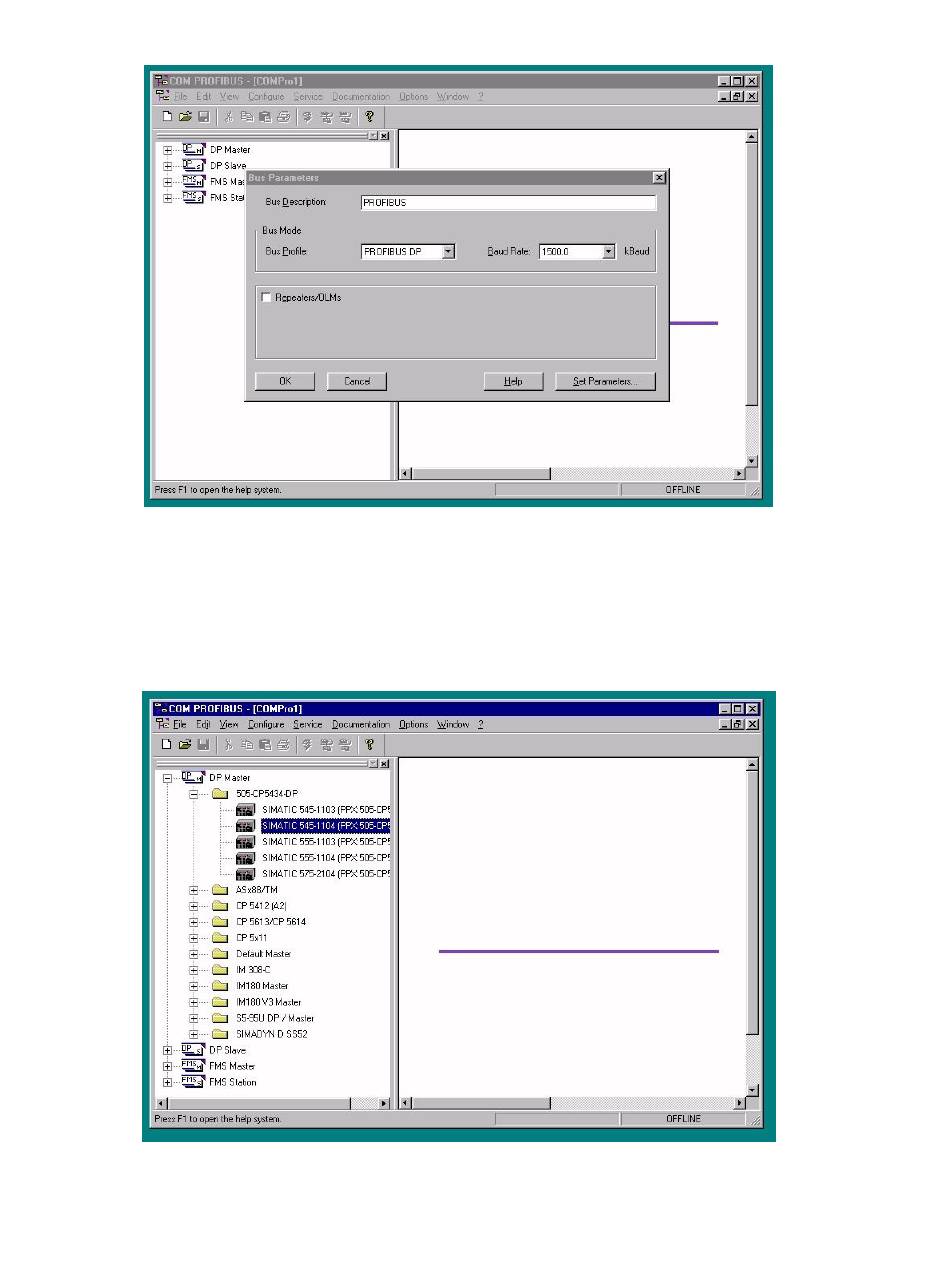

The "Bus Profile" setting should be "Profibus DP". Set the baud rate to your desired value.
3.5. Add a Master to the System and Set the Profibus Address.
Next, add a master (CTI 2500-Cxxx or 505-CP1434-DP) to the system and set Profibus address.
Select the proper master from the list.
Click your selection and drag it over into the graphics window.
20
CTI 2500-RBC Installation and Operation Guide V1.6
