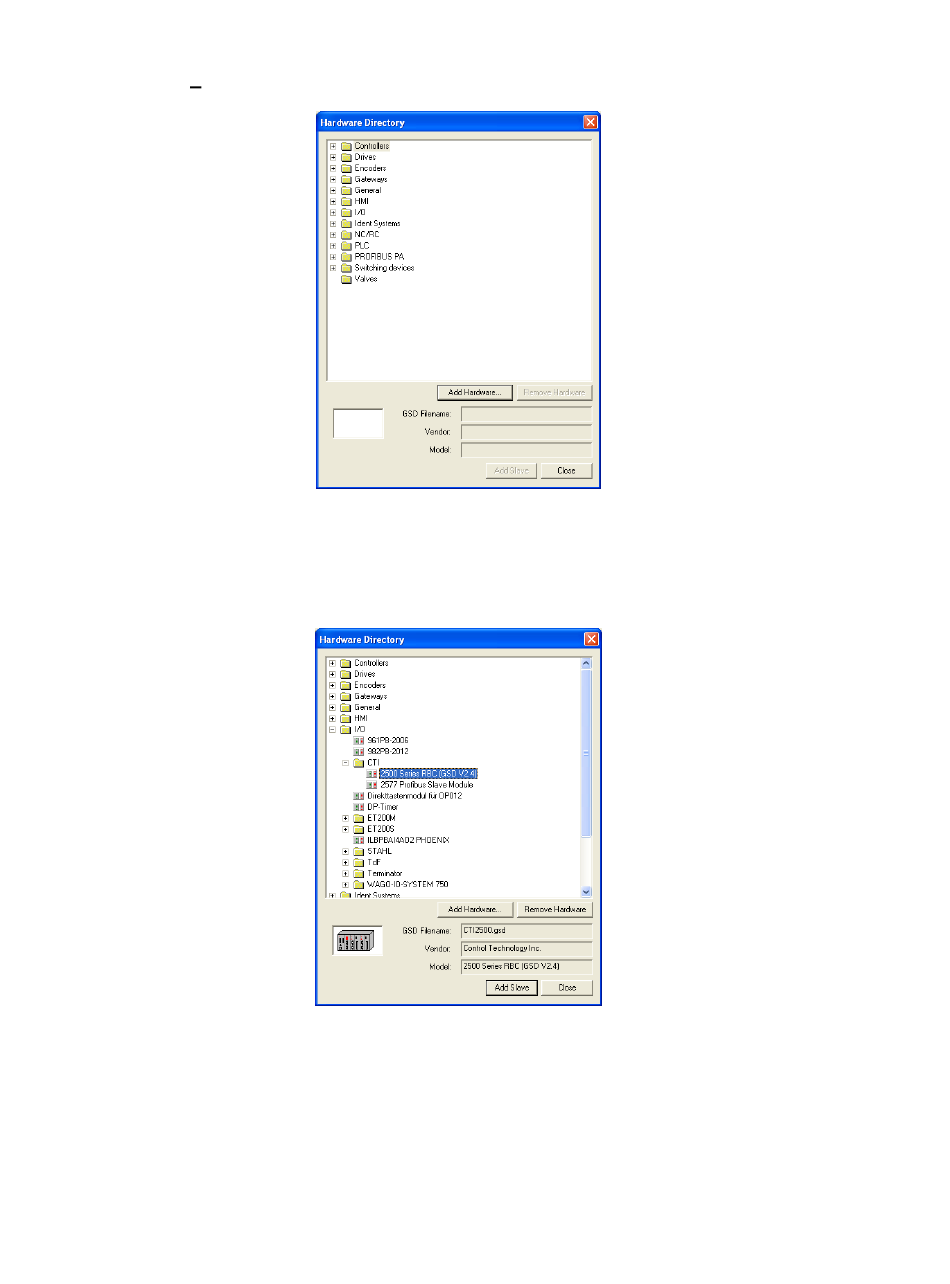

Click on the Add Slave Button to get the following box.
Open the I/O folder. If you do not have a CTI folder with the 2500 Series® RBC(GSD V...) File as
shown below, Click on the Add Hardware Button. Go to the HDGSDBMP folder and select
CTI2500.gsd file you down loaded from CTI. Then Click on the Open Button. The Box should now
look like this. Click on 2500 Series® RBC (GSD V...) then Click on Add Slave.
You should get the following box.
32
CTI 2500-RBC Installation and Operation Guide V1.6
