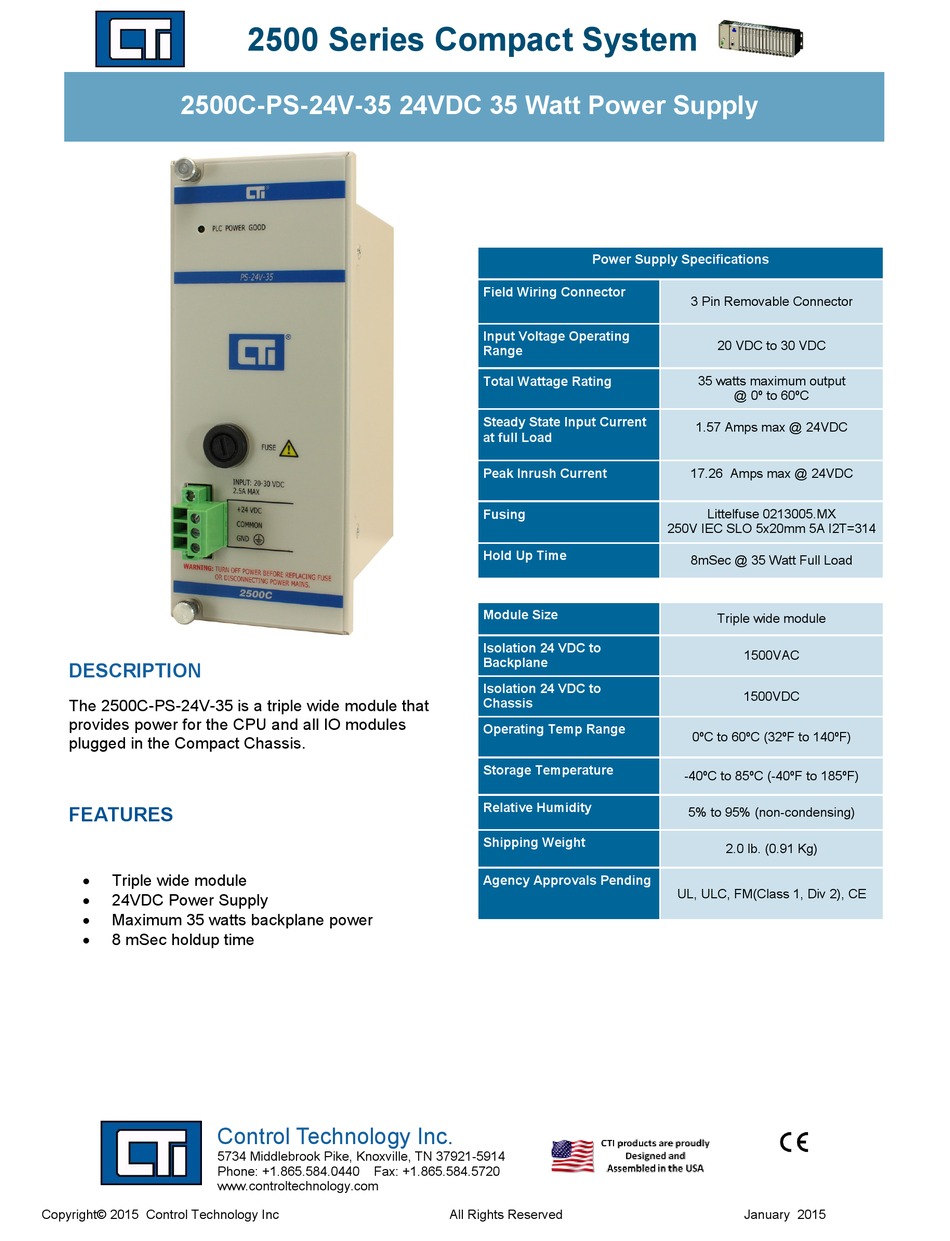

Control Technology 2500 Series Quick Start Manual

2500C-PS-24V-35 24VDC 35 Watt Power Supply

DESCRIPTION

The 2500C-PS-24V-35 is a triple wide module that
provides power for the CPU and all IO modules
plugged in the Compact Chassis.

FEATURES


Triple wide module

24VDC Power Supply

Maximum 35 watts backplane power

8 mSec holdup time
Control Technology Inc.
5734 Middlebrook Pike, Knoxville, TN 37921-5914
Phone: +1.865.584.0440
www.controltechnology.com
Copyright© 2015 Control Technology Inc
2500 Series Compact System
Fax: +1.865.584.5720

Power Supply Specifications

Field Wiring Connector

Input Voltage Operating
Range
Total Wattage Rating
Steady State Input Current
at full Load
Peak Inrush Current
Fusing
Hold Up Time
Module Size
Isolation 24 VDC to
Backplane
Isolation 24 VDC to
Chassis
Operating Temp Range
Storage Temperature
Relative Humidity
Shipping Weight
Agency Approvals Pending
All Rights Reserved
3 Pin Removable Connector
20 VDC to 30 VDC
35 watts maximum output
@ 0º to 60ºC
1.57 Amps max @ 24VDC
17.26 Amps max @ 24VDC
Littelfuse 0213005.MX
250V IEC SLO 5x20mm 5A I2T=314
8mSec @ 35 Watt Full Load
Triple wide module
1500VAC
1500VDC
0ºC to 60ºC (32ºF to 140ºF)
-40ºC to 85ºC (-40ºF to 185ºF)
5% to 95% (non-condensing)
2.0 lb. (0.91 Kg)
UL, ULC, FM(Class 1, Div 2), CE
January 2015
