2.4. Configuring the Module

There are six steps to configuring the module and
getting it operational on a Profibus network:

1. Setting the module option switches

2. Setting the output state on communication
loss (freeze jumper)
3. Setting software parameters in WorkShop or
Com Profibus
4. Configuring the remote base in in WorkShop
or Com Profibus
5. Exporting a binary configuration file (Com
Profibus only)
6. Merging the configuration file into the
Profibus master (Com Profibus only)
For detailed information on using Com Profibus to
configure a remote base with the 2500-RBC, refer to
Chapter 3.
Setting the Module Option Switches
Switches on the 2500-RBC are used to select the
following
•
Serial Port Baud Rate
•
Profibus Address
•
Display mode

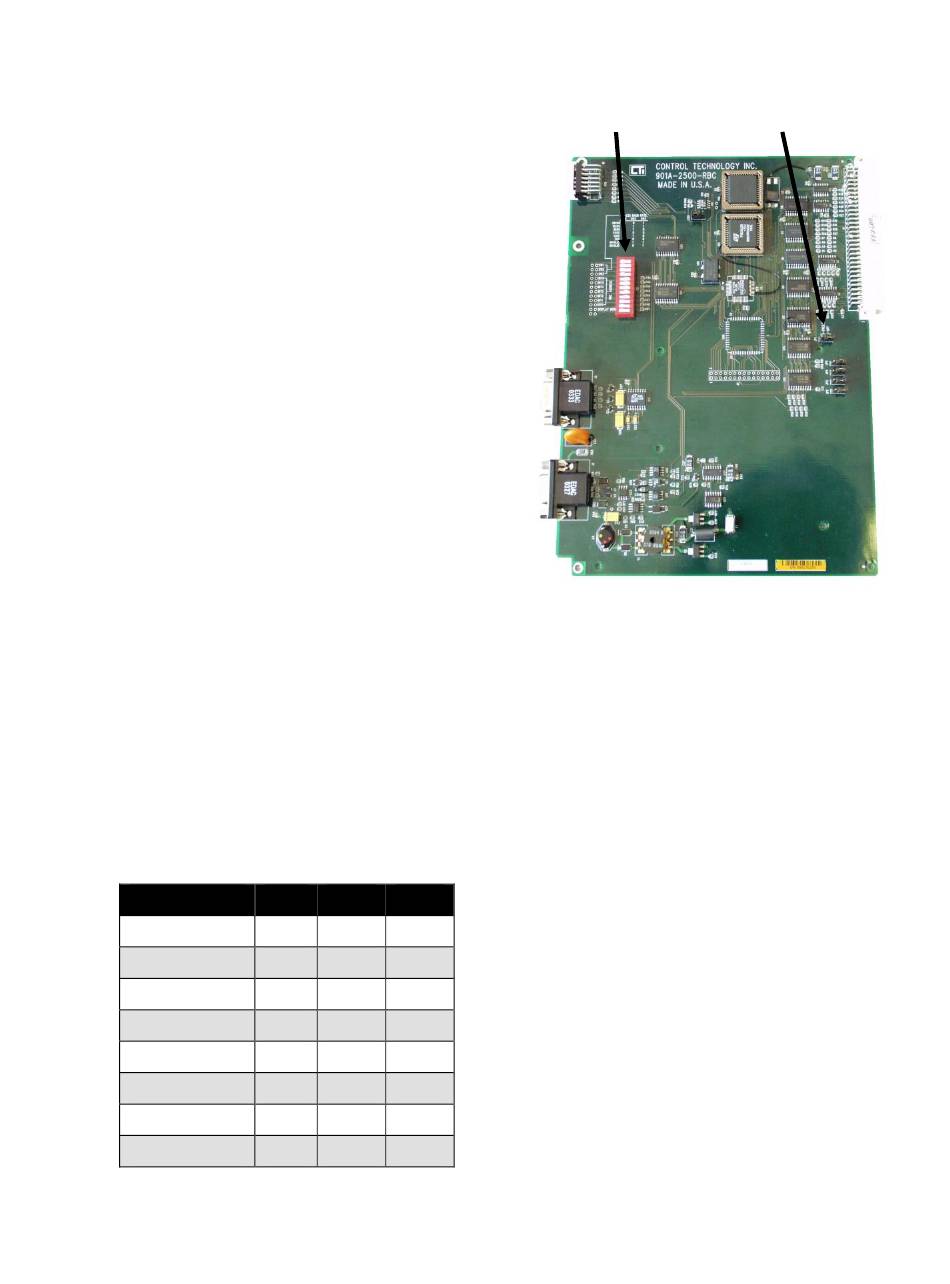

Figure 2 indicates the location of the option switches and freeze jumper. The remainder of this
section describes the function of the individual switches.
SW1 through SW3 – Serial Port Baud Rate.
Switches 1-3 are used for setting the baud rate of the serial port. Serial port operations are not
currently implemented in the product.
Baud rate
38400
19200
9600
2400
1200
300
Invalid
Invalid
CTI 2500-RBC Installation and Operation Guide V1.6
SW1 SW2 SW3
0 0 1
1 1 1
1 1 0
1 0 0
0 1 0
0 0 0
0 1 1
1 0 1
option switches
Figure 2. Switch Locations
freeze jumper setting
