The local base is defined as the rack that contains the CPU. Be careful that you do not overlap

memory addresses with modules in your local base or other remote bases.

Example: If the local base rack uses addresses 1-32 of X/Y memory, the 8pt digital input card in slot

#1 of the first remote base must have a starting address of a least '33' and will use memory

addresses 33through 40. The next 8pt digital card will need a starting address of 41.

4.7 Setting Profibus Slave Parameters

The following Profibus parameters can be set for each profibus slave : Discrete I/O Update Interval,

Word I/O Update Factor, and 505 Mismatch Mode. These parameters are defined in section 2.4.

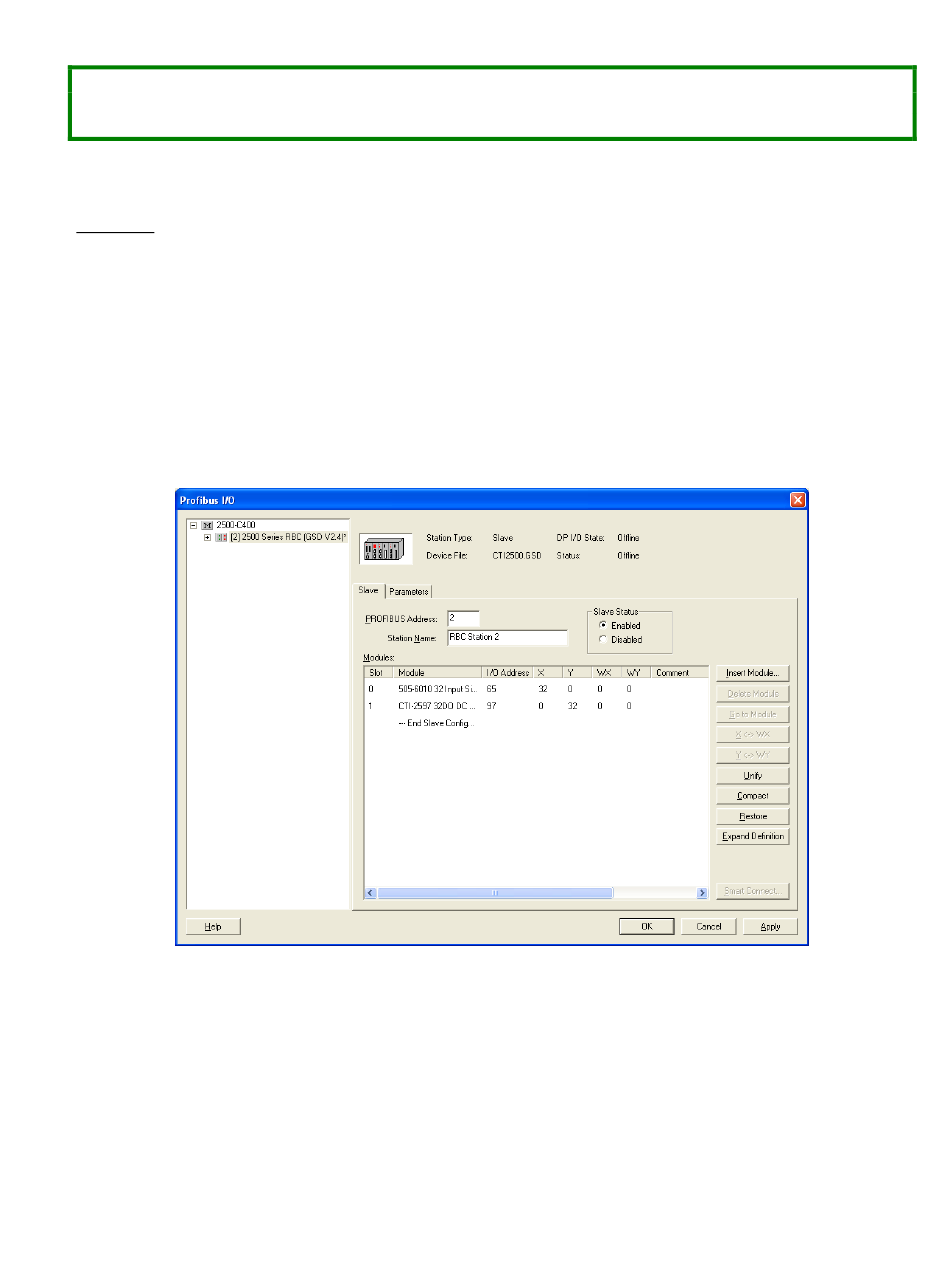

Click on the "Parameters" tab for the remote base.

If you desire to change any of the parameters, click on the 'Value' field and type a new value.

CTI 2500-RBC Installation and Operation Guide V1.6
