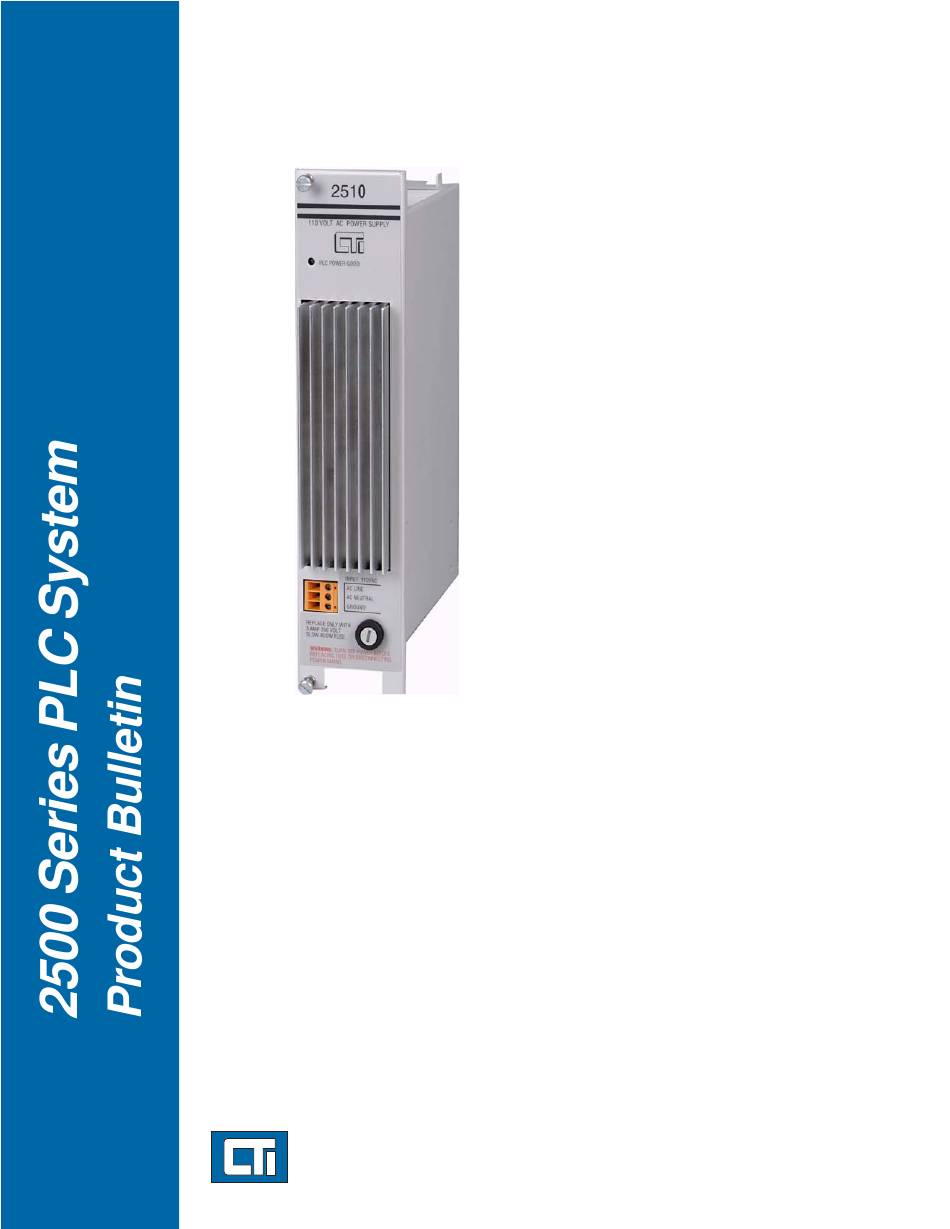

Control Technology 2500 Series Product Bulletin

2510 125VDC Power Supply
Description
The Model 2510 is a 125 VDC Power Supply
which provides up to 55 watts of l power for CTI
2500 Series TM or SIMATIC® 505 PLCs.
Systems that must operate from 125 VDC
batteries may use the Model 2510 to provide
power for the PLC. This is a special order
product which requires a minimum 10pc order.
The Model 2510 also accepts 110 VAC input
power.
Features
125 VDC input power for utility applications
Also accepts 110 VAC input power
55 Watts @ +5 VDC to PLC to backplane
Control Technology Inc.
5734 Middlebrook Pike, Knoxville, TN 37921-5962
Phone: 865/584-0440
Specifications
Field Connections:
One 3-pin input terminal strip
Input Voltage Operating Range:
90-146VDC or 90-132 VAC
Total Wattage Rating:
55 Watts maximum output @ 0
Steady State Input Current at full load:
1.50 Amps DC max
2.5 Amps AC max.
Peak Inrush Current:
50 Amps max
Fusing:
3.0 Amp 250V, 3 AG front panel accessible
Isolation:
2800VDC: input-to-Backplane
500VDC: Chassis-to-Backplane
1500VDC: input-to-Chassis
Module Size:
Operating Temperature:
o
0 to 60
Storage Temperature:
-40
Relative Humidity:
5% to 95% (non-condensing)
Agency Approvals Pending:
UL, ULC, FM (Class 1, Div. 2), CE
Shipping Weight:
Fax: 865/584-5720 www.controltechnology.com
Triple-wide
o o o
C (32 to 140 F)
o to 85 o C (-40 o to 185 o F)
5.0 lbs (2.3 kg)
o o
C to 60 C
