Micro800™ 4 Ch Universal Analog Input Module

Insert Module into Controller

Follow the instructions to insert and secure the plug-in module to the
controller.

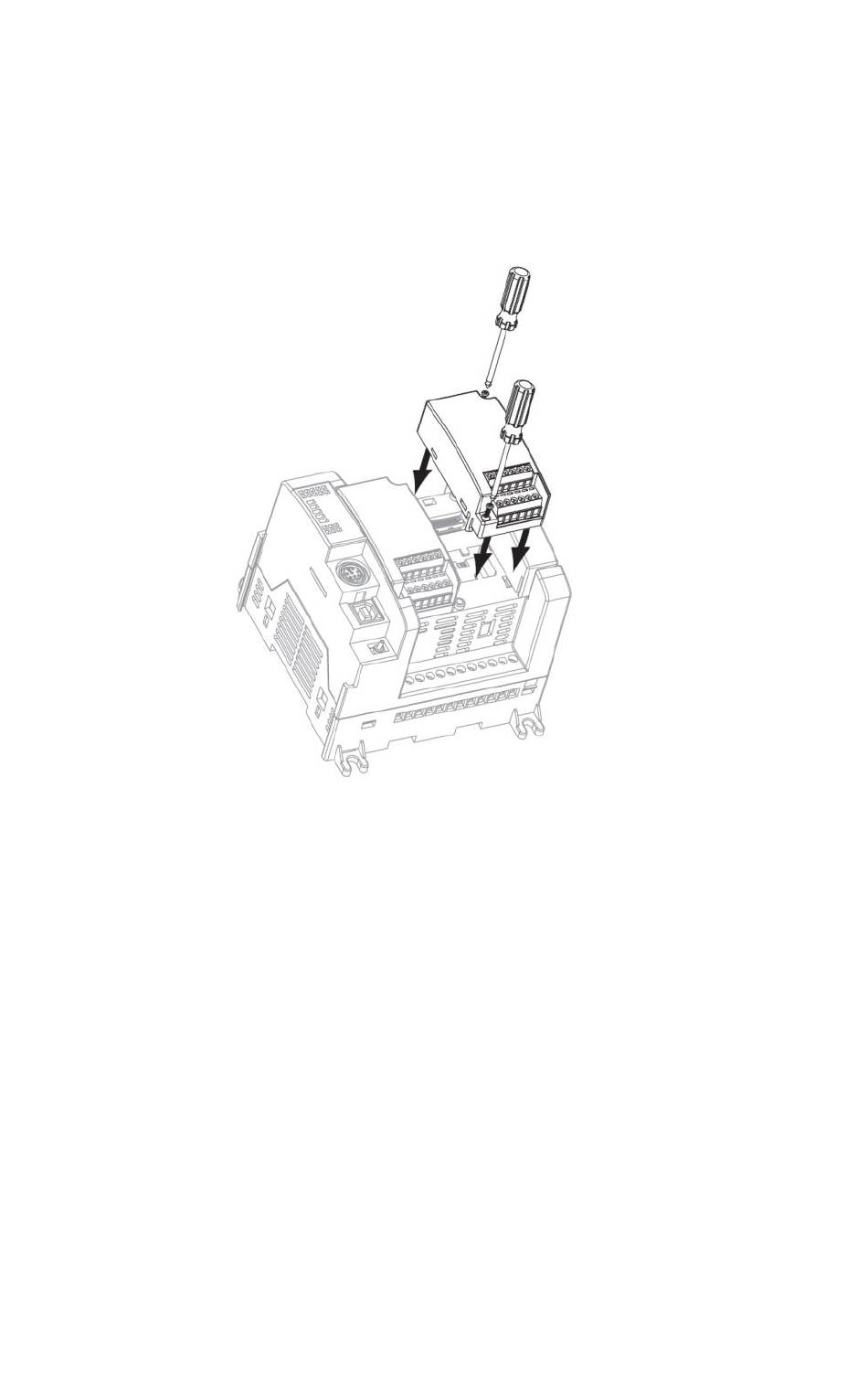

1. Position the plug-in module with the terminal block facing the
front of the controller as shown.
2. Snap the module into the module bay.
3. Using a screwdriver, tighten the 10...12 mm (0.39...0.47 in.) M3
self-tapping screw to torque specifications.
Publication 0100189-04 Rev. C
