STEP 6: Tail Wheel Installation

Parts required
• (1) Multi-Directional Tail Wheel (Omni-Wheel)
• (1) Stingray Tail Wheel Axle
• (2) Screw, Black, Button Socket Cap, #4-40, ¼"
Be sure the two halves of the Tail Wheel Assembly are joined.
Slide the Tail Wheel Axle inside the Tail Wheel Assembly and place it between the fins of the Tail
Wheel Mount Plate.

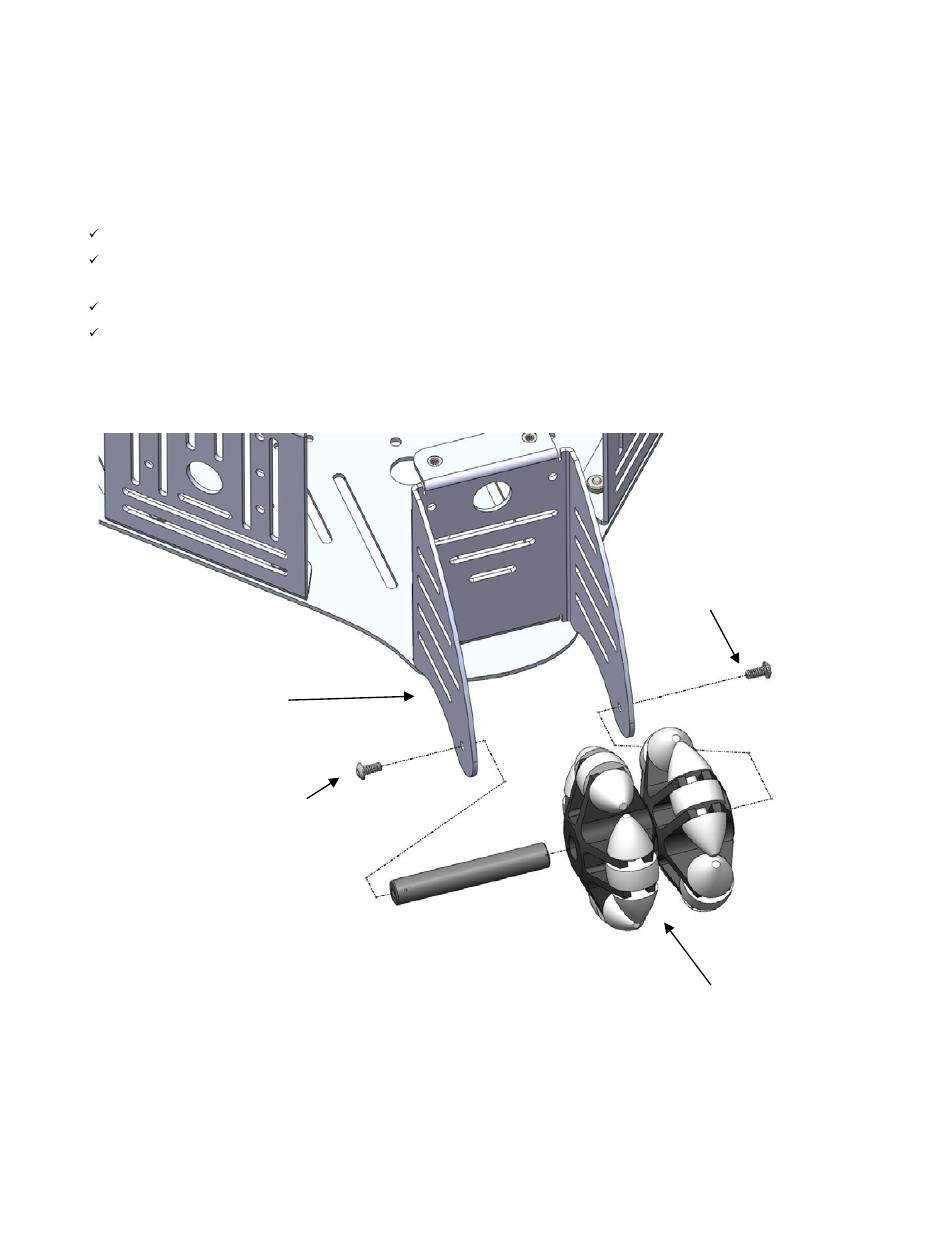

Using the 1/16" Hex Key, insert the screws into each end of the axle as shown in the figure below.
Be sure the axle screws are very snug or they may come loose over time.
Stingray Tail Wheel Mount Plate
Screw, Black, Button Socket Cap,
#4-40, 1/4"
Copyright © Parallax Inc.
Stingray Tail Wheel Axle
Stingray Robot (#28980)
Tools Required
• 1/16" Hex Key (included)
Screw, Black, Button Socket Cap,
#4-40, 1/4"
Multi-Directional Tail Wheel
