STEP 12: Installing the Breadboard and Control Board
Parts Required
• (1) Propeller Robot Control Board
• (1) Breadboard Assembly (from previous step)
• (8) Screw, Zinc, Pan Head, Phillips, #4-40, ¼"
Using the Phillips end of the Parallax Screwdriver, attach the Breadboard Assembly to the standoffs
closest to front end of the Stingray Robot using the #4-40 x ¼" screws.

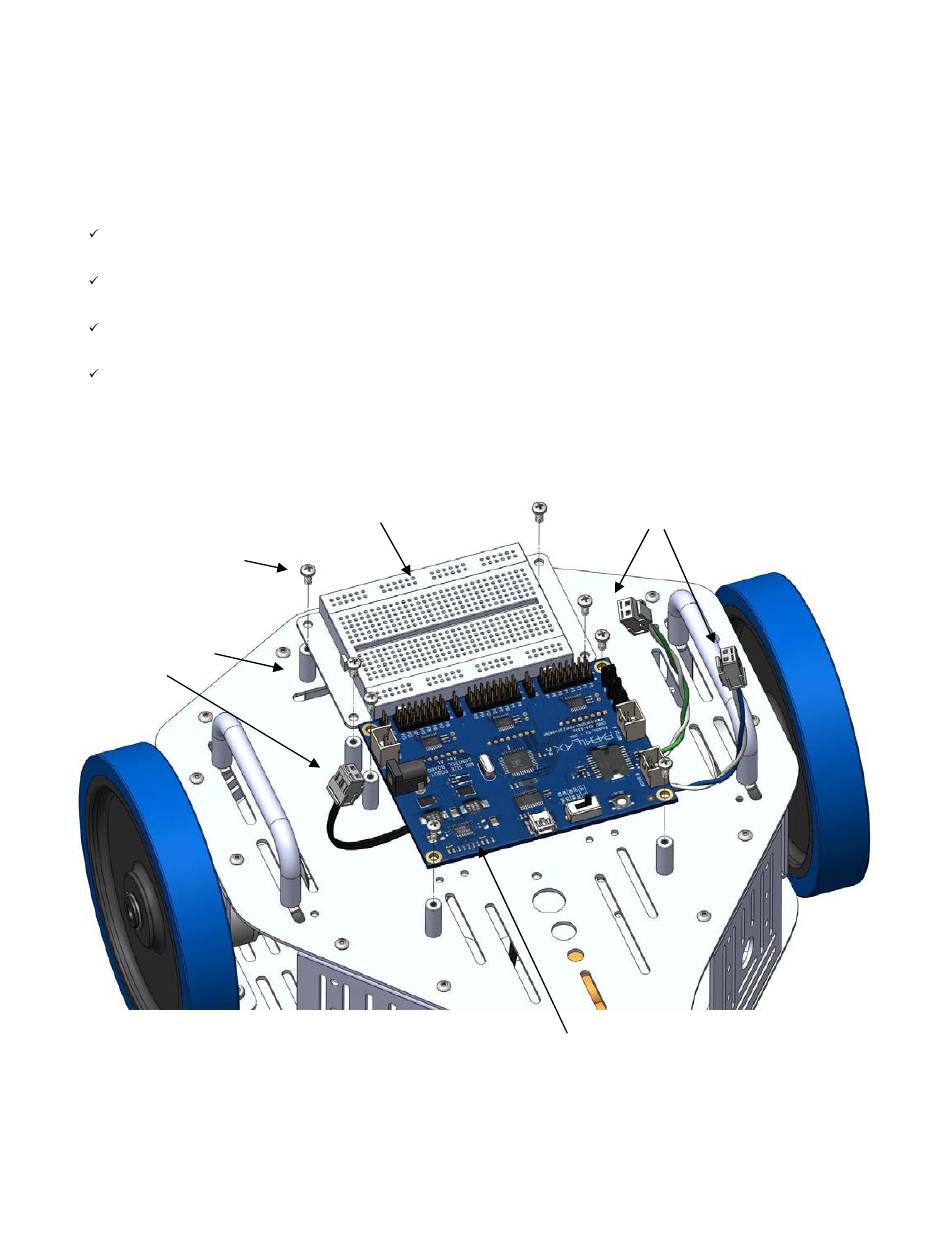

Place the Propeller Robot Control Board on the remaining four standoffs, oriented so that the long
row of 3-pin headers is closest to the breadboard assembly.
Route the Battery Wire out from under the left side of the board, and the Motor Wires out from
under the right side of the board as shown in the figure below.
Using the Phillips end of the Parallax Screwdriver, attach the Propeller Robot Control Board to the
standoffs using the #4-40 x ¼" screws.
Screw, Zinc, Pan Head,
Phillips, #4-40, 1/4"
Standoff
Battery Wire
Copyright © Parallax Inc.
Breadboard Assembly on Stingray
Breadboard Mounting Plate
Stingray Robot (#28980)
Tools Required
• Parallax Screwdriver (included)
Motor Wires
Propeller Robot Control Board
Position it so row of 3-pin Headers is
closest to Breadboard Assembly
