Parallax Stingray Manual page 11

STEP 8: Battery Installation & Retention Clip
Parts Required
• (1) Battery Retention Clip, 6 AA
• 6 AA 1.2 V Rechargeable Batteries
Be very careful when handling the Battery Retention clip, as the thin metal could potentially cause a
cut if you are not careful.
Insert the 6 AA batteries into the holder being sure to observe polarity carefully. The negative side
of each battery always faces the spring in each slot.

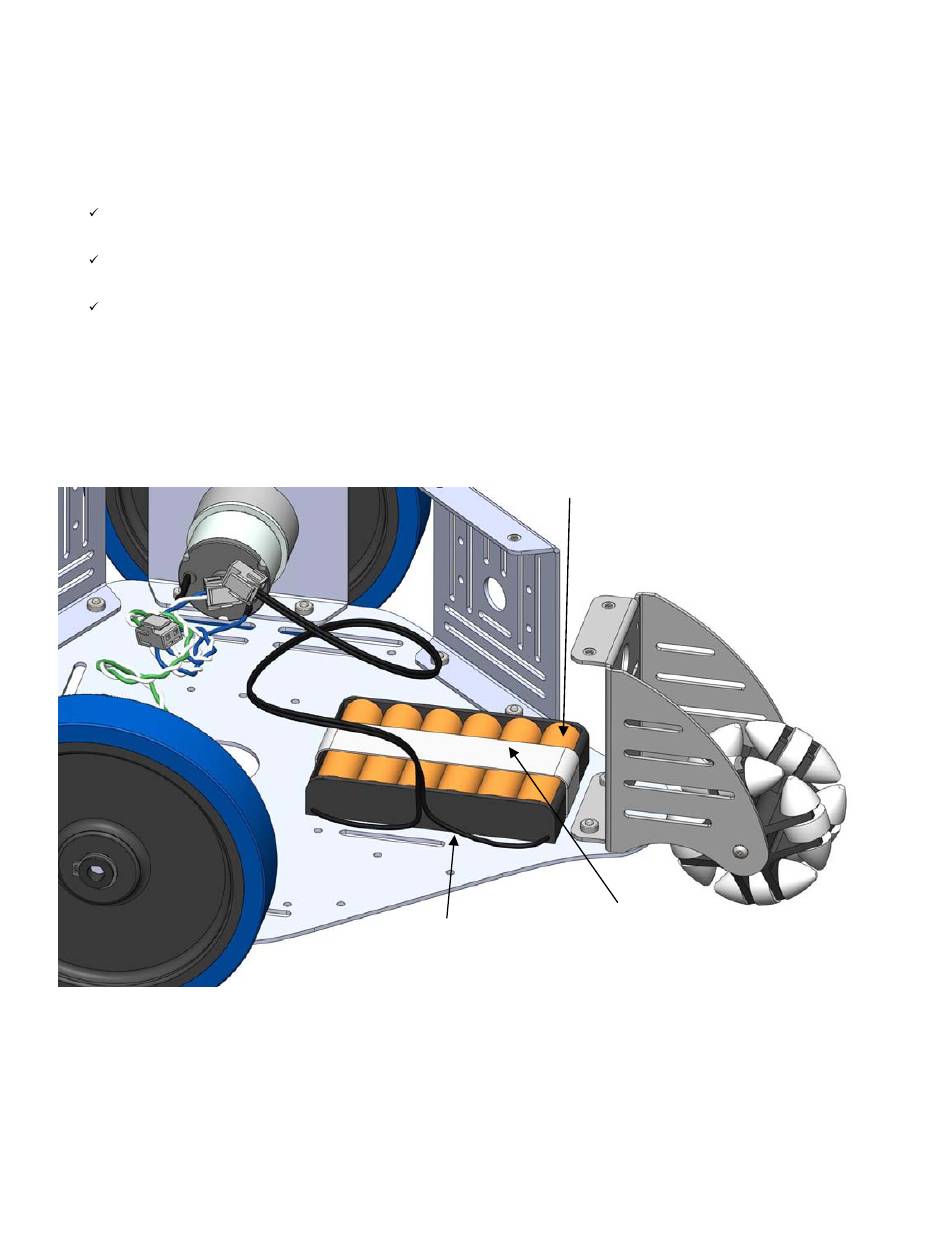

Once all 6 batteries are installed, slide the retention clip from the side of the battery holder. The
ends of the retention clip have tabs that, when properly installed, hook under the battery pack.
Copyright © Parallax Inc.
Tools Required
•
Use 6 AA 1.2 V
Rechargeable Batteries
Battery Retention Clip
Battery Holder
Stingray Robot (#28980)
None
v1.1 10/6/2009 Page 11 of 26
