STEP 11: Breadboard Assembly
Parts Required
• (1) Breadboard, 3.19" L x 1.65" W
• (2) Breadboard, 30 Row X 2 Column
• (1) Breadboard Mounting Plate

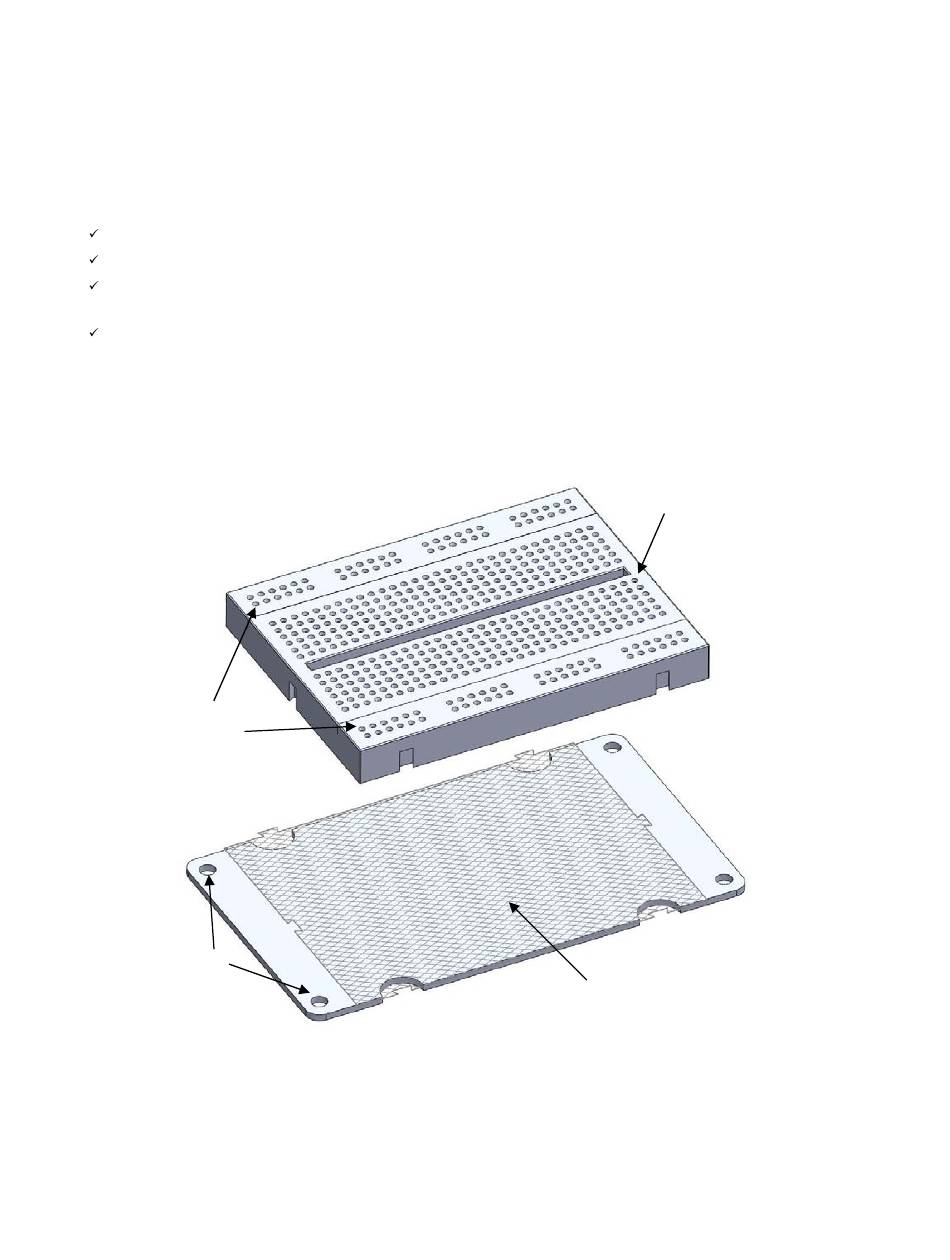

Assemble the three breadboard sections so that they look like the figure below.
Carefully remove the strip covering the adhesive backing on the Breadboard sections.
Before adhering it to the Breadboard mounting Plate, align it carefully so you do not cover up the
mounting holes, as you won't be able to remove and reposition it again.
When you are sure of your alignment, stick the assembled breadboards to the Breadboard Mounting
Plate as shown by the cross-hatch area in the figure below.
Breadboard,
30 Row X 2 Column
Do NOT stick breadboard
assembly over mounting holes
Copyright © Parallax Inc.
Tools Required
•
Breadboard Mounting Plate
Stingray Robot (#28980)
None
Breadboard, 3.19" L x 1.65" W
