STEP 10: Attaching the Chassis Top Plate
Parts Required
•
(16) Screw, Black, Button Socket Cap, #4-40, ¼"

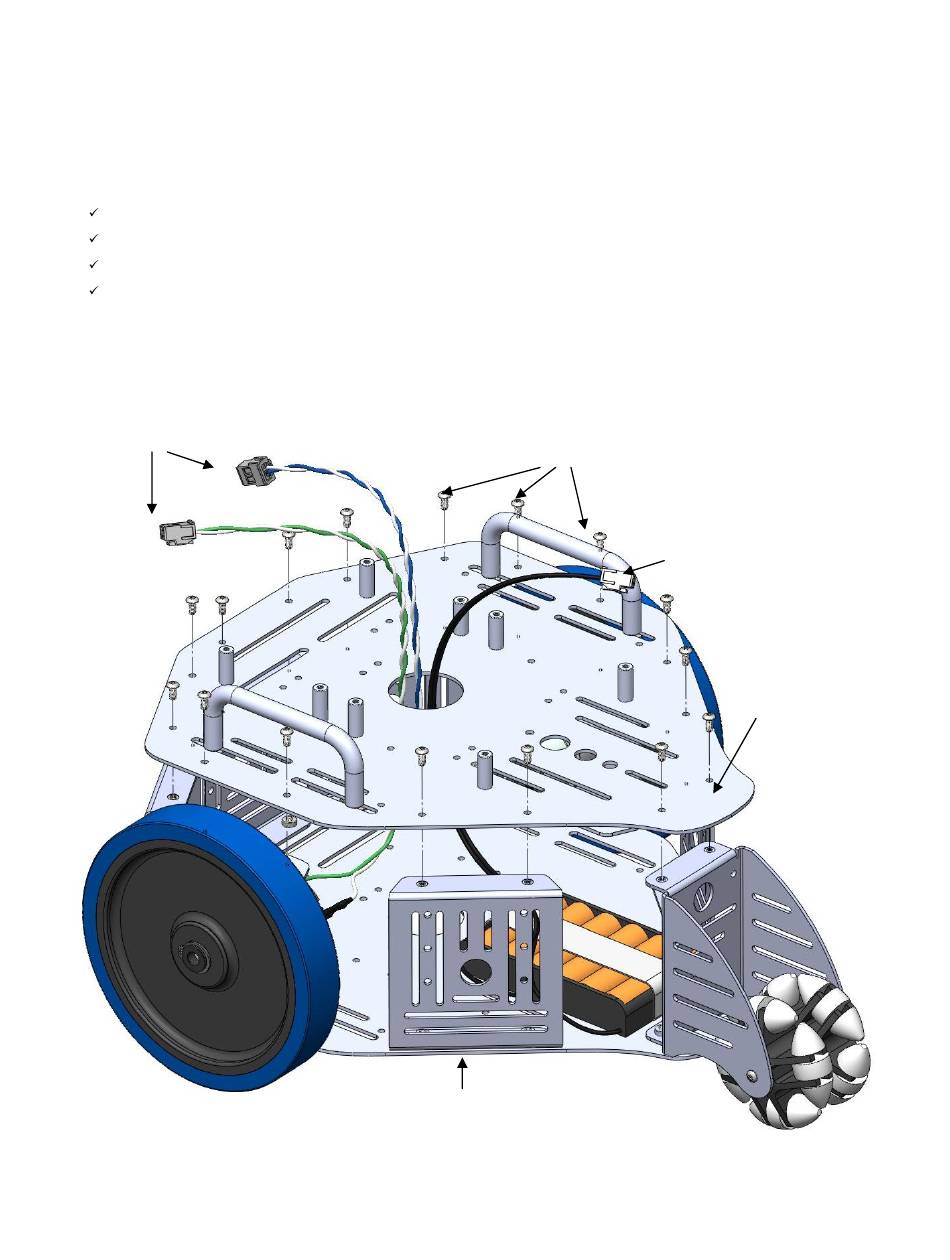

Place the Stingray Chassis Top Plate with the handles and standoffs installed over the robot.
Bring the Motor Wires and Battery Holder Wire up through the large center hole as shown below.
Line the Top Chassis Plate up with the holes in the Stingray Sensor Mount Plates.
With the 1/16" Hex Key, attach the Chassis Plate using the 16 button socket cap #4-40 x ¼" screws.
Motor Wires
Copyright © Parallax Inc.
Screw, Black, Button Socket Cap,
#4-40, 1/4"
Stingray Sensor Mount Plate
Stingray Robot (#28980)
Tools Required
•
1/16" Hex Key (included)
Battery Wire
Stingray Chassis Top Plate
with Handles and Standoffs
v1.1 10/6/2009 Page 13 of 26
installed
