STEP 13: Connecting Battery and Motor Wires
Parts Required
• Assembled Stingray Robot

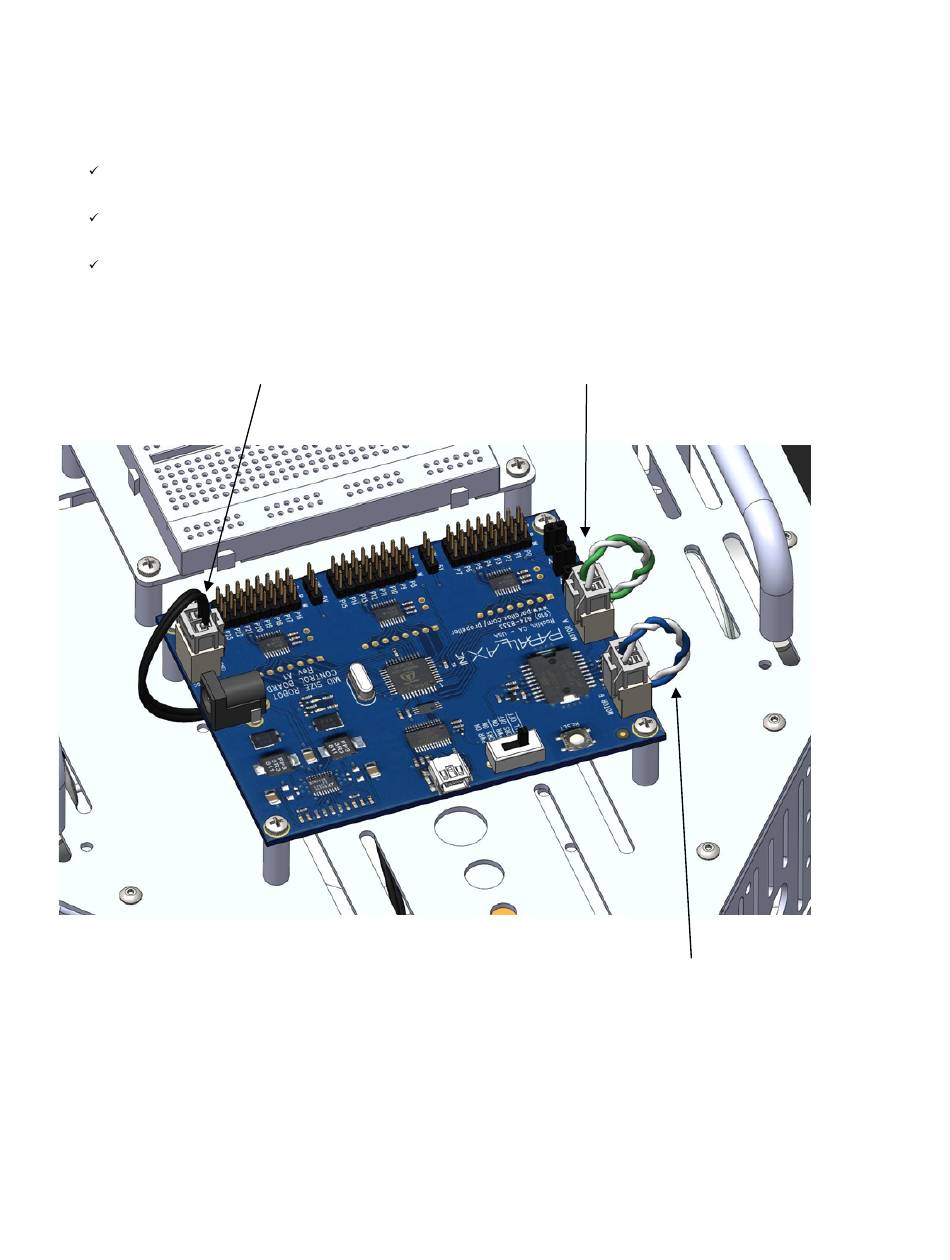

Insert the Battery Wire plug into the matching socket just in front of the DC Barrel Jack on the
Propeller Robot Control Board as shown in the figure below.
Insert the Green/White Motor Wire plug into the Motor A socket on the opposite side of the Propeller
Robot Control Board as shown in the figure below.
Insert the Blue/White Motor Wire plug into the Motor B socket.
Battery Wire plugs into the
battery socket
Copyright © Parallax Inc.
Tools Required
•
Green/White Motor Wire plugs
into the Motor A socket
Stingray Robot (#28980)
None
Blue/White Motor Wire plugs into
the Motor B socket
