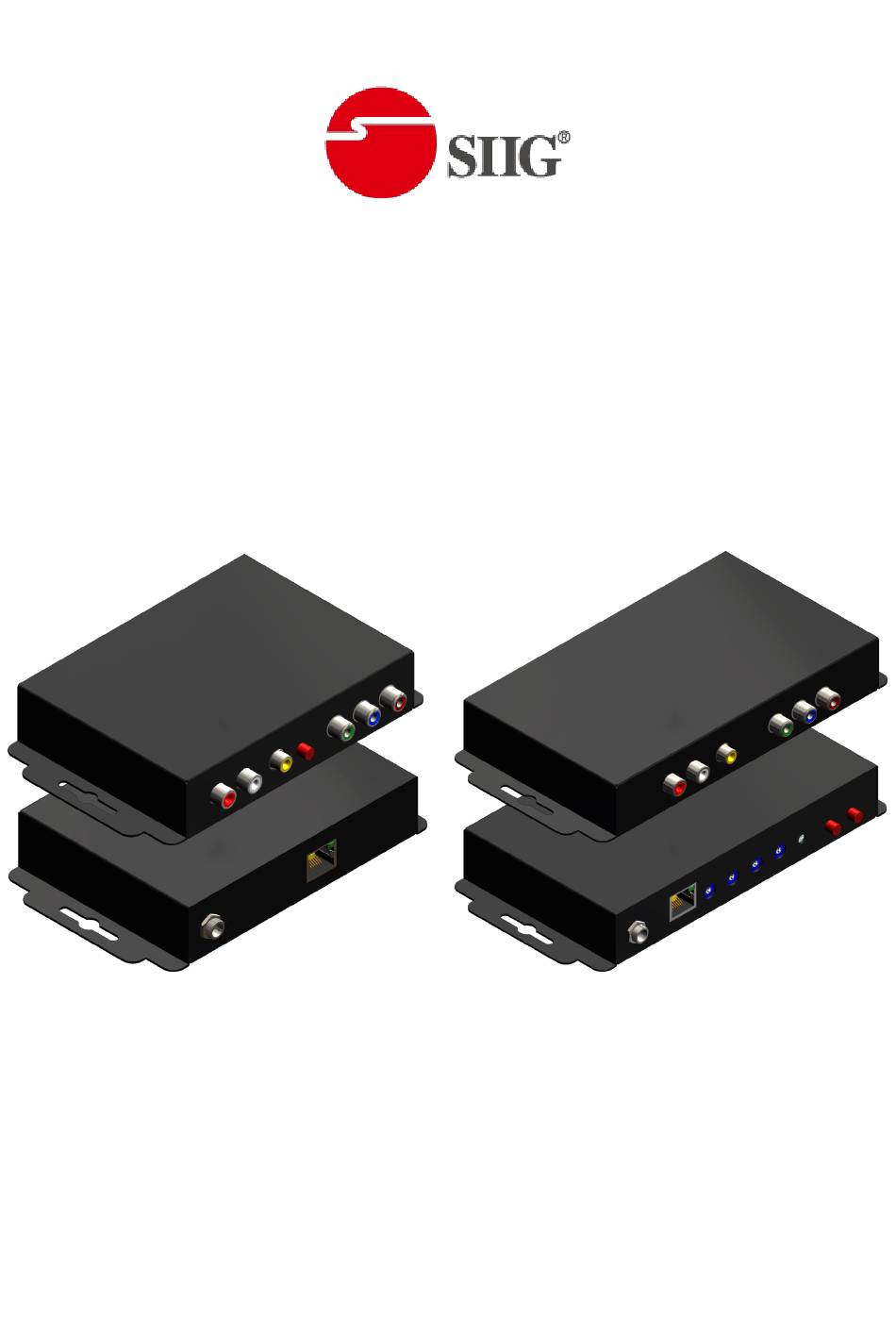

- Page 1 Composite & Audio over CAT.X Extender with RGB Delay Control P/N: AV-GM03W3-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM03W3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION With only one cost effective CAT.X cable, the AV-GM03W3-S1 lets you extend Composite signals up to 330m (1,000ft). The devices are composed of a transmitter and a receiver. The transmitter is installed near the signal source, and the receiver AV-GM03W3-S1-RX is placed near the desired display. -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM03W3-S1 Technical AV-GM03W3-S1 Role of usage Transmitter [TX] Receiver [RX] Video bandwidth 350MHz Video support 720P@60Hz, 1080i@60Hz, 1080P@30Hz Video Transmission 330m (1,000ft) [CAT5e] Audio support Stereo/ S/PDIF Input video signal 1.2 Volts [peak-to-peak] Equalization Continuous analog control RGB delay control [1] Human body model —... -
Page 5: Panel Description
Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTION Transmitting unit ► AV-GM03W3-S1-TX Front Panel Stereo audio input – L Stereo audio input – R S/PDIF audio input Push-in button: select between S/PDIF and analog stereo audio [button down-S/PDIF, button up-Stereo] Composite –... -
Page 6: Receiving Unit ► Rx
+5V DC: inter-locked power jack to connect to 5V DC power supply unit RJ-45 OUT: plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the receiving unit AV-GM03W3-S1[Rx] Receiving unit ► AV-GM03W3-S1-RX Front Panel Stereo audio output – L Stereo audio output –... -
Page 7: Connection Diagram
+5V DC power jack: connect to 5V DC power supply RJ-45 IN: Plug in a CAT-5/5e/6 cable that needs to be linked to the RJ-45 connector of the transmitting unit AV-GM03W3-S1-TX. EQ: Rotary control for equalization of R, G, B, respectively... -
Page 8: Hardware Installation
HARDWARE INSTALLATION 1. Connect your YPbPr and audio source to the transmitting unit. 2. Connect your display and speakers to the receiving unit. 3. Connect your CAT-5/5e/6 cable between the transmitting and receiving units. 4. Make sure your CAT-5/5e/6 cable is tightly connected and not loose. 5. -
Page 9: Notice
NOTICE 1. All transmission distances are measured using Belden 1583A CAT-5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the distance between the video source and the VGA display. 2. The transmission length is largely affected by the type of LAN cables, the type of video sources, and the type of display. -
Page 10: Limited Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM03W3-S1 features and specifications is subject to change without further notice.
