SIIG CE-SD0811-S1 Quick Start Manual

Dear Valued Customer
(Just WANTED YOU TO KNOW)
WE REALLY
APPRECIATE
YOUR PURACHASE
~thank you~
Features
• Auto 3G/HD/SD-SDI detection
• Support HDMI 1.3
• Support stereo 2ch audio output
• One SDI compliant output and one HDMI
compliant output
• Supported resolutions
3G-SDI Output
1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M
HD-SDI Output
720p @ 50Hz SMPTE 296M -3
720p @ 60 / 59.94Hz SMPTE 296M -1, -2
1080i @ 50Hz SMPTE 274M -6
1080i @ 60 / 59.94Hz SMPTE 274M -4, -5
1080p @ 24 / 23.98Hz SMPTE 274M -10, -11
1080p @ 25Hz SMPTE 274M -9
1080p @ 30 / 29.97Hz SMPTE 274M -7, -8
SD-SDI Output
NTSC
PAL B,D,G,H,I
Package contents
• 3G/HD/SD-SDI to HDMI Mini Converter
• Power adapter DC 5V/2A
• Ear mount kit
• Quick Start Guide

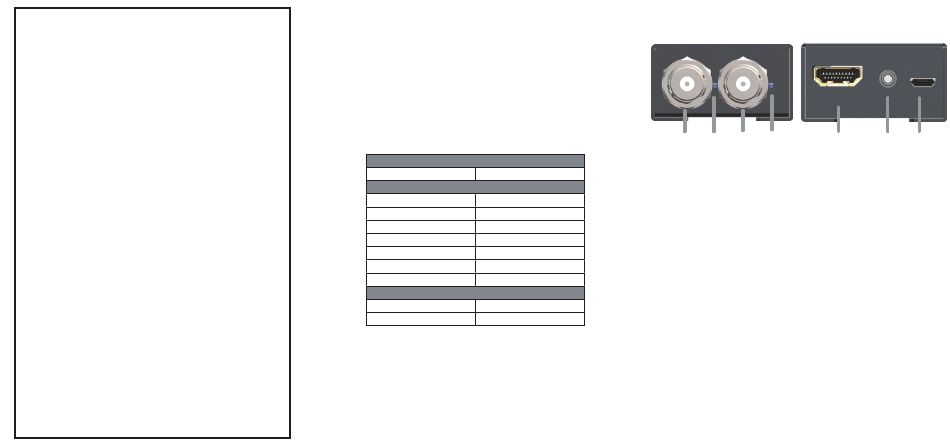

Layout
3 4 5
1 2
1. SDI IN: 3G/HD/SD-SDI Input
2. Power LED indicator
3. SDI OUT: 3G/HD/SD-SDI loopout
4. Signal LED indicator
5. HDMI OUT: Connect to HDMI display
6. Stereo Audio Output
7. Micro USB Power Input: DC 5V/2A
6 7
