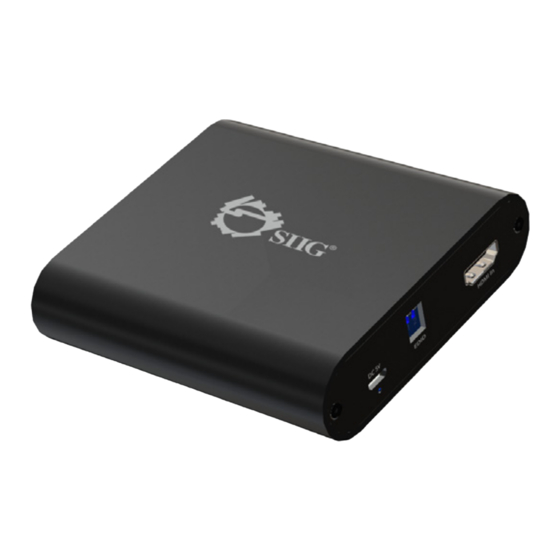

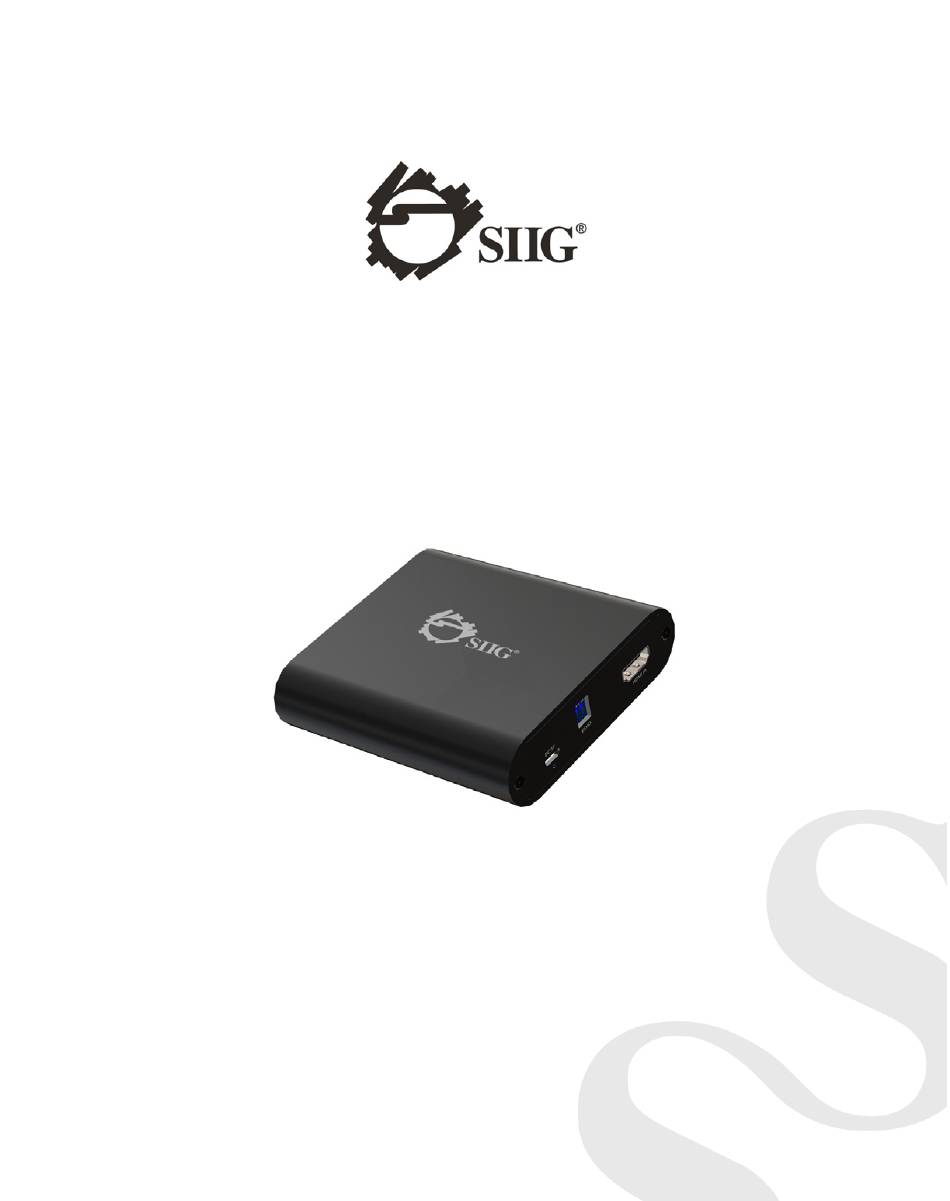

- Page 1 HDMI 2.0 to DisplayPort 1.2 Converter - 4Kx2K 60Hz User Reference Guide P/N: CE-H22Z11-S1 04-1118A...
- Page 2 Introduction The HDMI 2.0 to DisplayPort 1.2 Converter easily connects your HDMI source device to a DP monitor. Key Features and Benefits • Supports high resolutions up to 3840x2160@60Hz (4:4:4 8bit) and stereo or coaxial audio (up to 7.1ch) output •...
- Page 3 Package Contents • HDMI 2.0 to DisplayPort 1.2 Converter - 4Kx2K 60Hz • Power Adapter • Mounting Kit • User Reference Guide Layout Micro USB Power Port Power LED EDID Switches HDMI Input Figure 1: Front side • Micro USB Power Port: Connects to the included power adapter * Note: Also used for firmware update.
- Page 4 • EDID Switches: Refer to the table to configure EDID on Page 5 • HDMI Input: Connects to HDMI source device by HDMI cable (cable not included) Coaxial Audio Audio Jack DisplayPort Output Figure 2: Rear side • Coaxial Audio: Up to 7.1ch surround output - connects to audio output device by coaxial cable (cable not included) •...
- Page 5 EDID Setting There are 4 settings. -"1": The button on the upper position -"0": The button on the lower position Switch Position Description Pin 1 Pin 2 3840x2160 60Hz (Default EDID) 4096x2160 60Hz 3840x2160 30Hz 1080p 60Hz...
- Page 6 Application The HDMI 2.0 to DisplayPort 1.2 Converter allows you to connect your HDMI source device to a DP monitor instantly and supports high resolutions up to 4Kx2K. Figure 3 * Note: 1. DisplayPort output has no audio stream. 2. For audio output, connect to 3.5mm audio jack (stereo) or coaxial port (up to 7.1ch) depending on your needs.
- Page 7 Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 HDMI 2.0 to DisplayPort 1.2 Converter - 4Kx2K 60Hz is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
