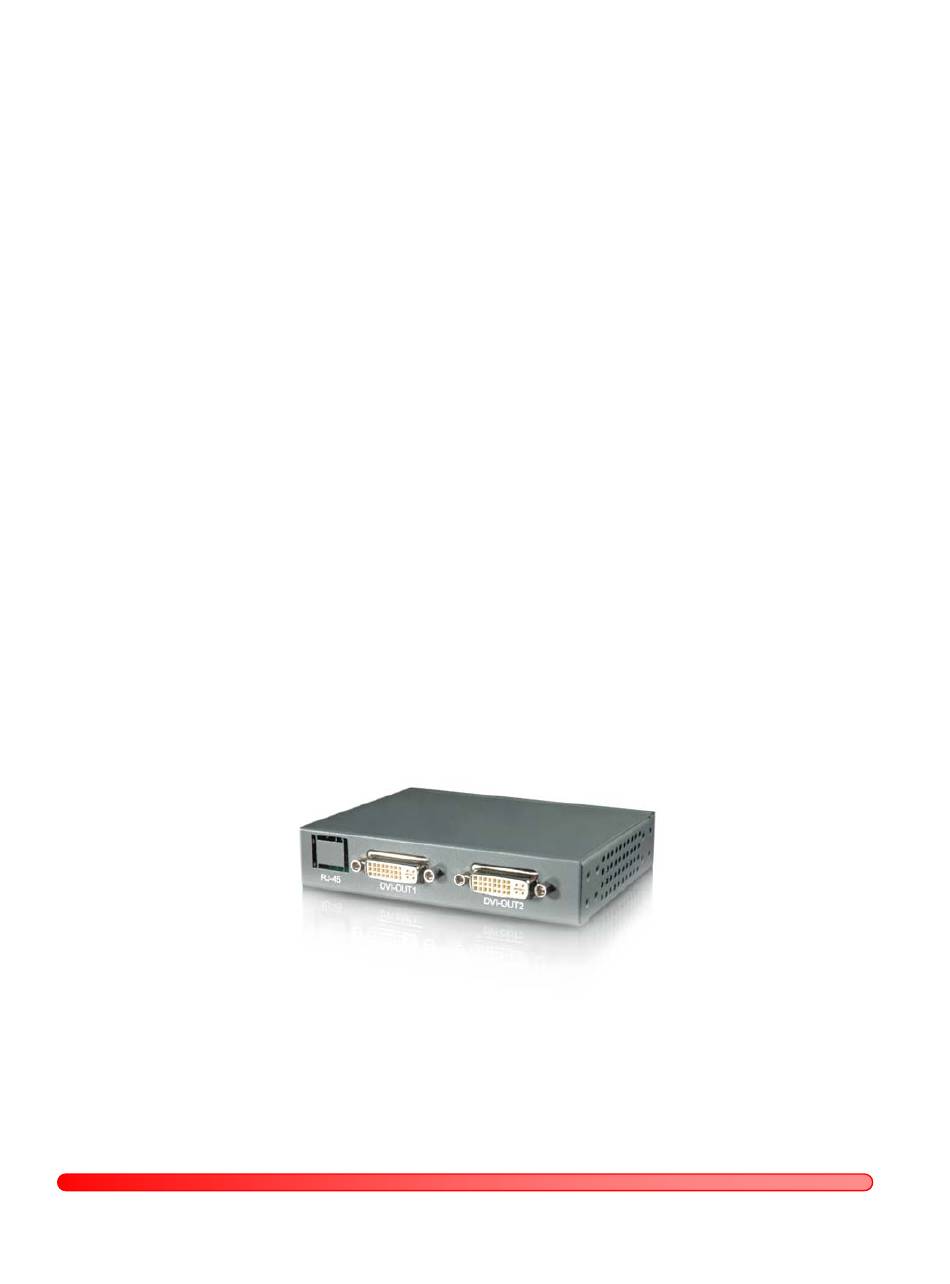

- Page 1 3-Port DVI Splitter CE-DV0031-S1 Quick Installation Guide...
-
Page 2: Safety And Notice
Safety and Notice The 3-Port DVI Splitter has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the 3-Port DVI Splitter should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Package Contents
Introduction The 3-Port DVI Splitter receives and reconstructs (equalizing & re-clocking) a DVI signal and distributes it to three identical outputs. It can be cascaded with one another in order to obtain more DVI outputs (up to 6 tiers). It will also process (read &... -
Page 4: Technical Specifications
Technical Specifications Input connector: 1 x DVI-I Output connector: 2 x DVI-I Maximum Resolution: 1600 x 1200 LEDs:1 x Green (ID), 1 x Red (Power) DIP switch: 2 Power Supply: 5V DC Dimensions: 12mm (L) x 88mm (W) x 25mm (H) Weight: 300g... -
Page 5: Panel Descriptions
Panel Descriptions Front View Connect a DVI display here. Connect a DVI display or two displays by a DVI Y-cable. *While cascading, use the short line of the DVI Y-cable to connect to the next splitter input and the long line to connect to a display. Rear Panel 5V DC Connect a device equipped with DVI output (such as a PC) to 3-Port DVI... -
Page 6: Button View
Button View Mode On Open EQ. Less noise but more power consumption. Off Close EQ. On Writing default EDID. Set the DIP switch at on and plug in power cord. The green LED will light after the writing process is completed. Off Record EDID of the connected display via DVI-OUT1 Plug in DVI cable first from the display and then plug in power cord. -
Page 7: Hardware Installation
Hardware Installation We suggest you connect the monitor with the lowest resolution to the DVI-OUT 1. (E.g. Suppose monitor A might support a maximum resolution of 1920 x 1200, monitor B supports a maximum resolution of 1280 x 1024 and monitor C supports a maximum resolution of 1024 x 768, please connect monitor C to DVI-OUT 1). - Page 8 DVI Splitter Monitor 2 Y-cable DVI Splitter Monitor 1 Monitor 4 DVI Splitter Monitor 3 Monitor 6 DVI Splitter Monitor 5...
- Page 9 Blank Page...
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
• Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton.
