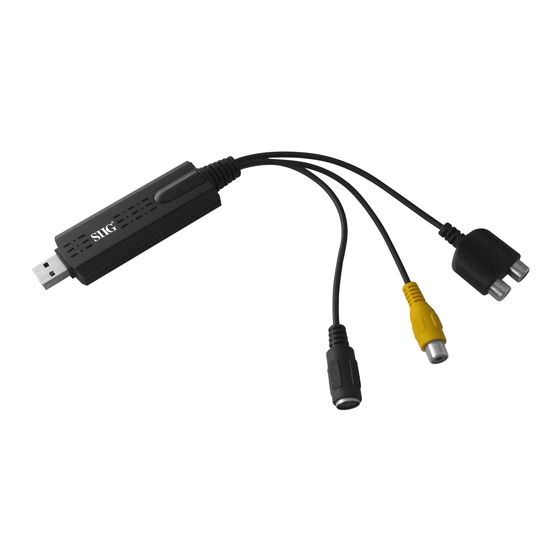

Introducing the USB 2.0 Video Capture
The USB 2.0 Video Capture Device easily captures video
from VHS or any external source and record to DVD.
Features and Benefits
•
USB 2.0 Plug and Play
•
Supports External A/V/S-video inputs
•
VCD/DVD/SVCD authoring
•
Compress TV programs to MPEG-1/2
•
Supports NTSC/PAL format
System Requirements
•
PC computer with an available USB 2.0 port and
sound card
•
Windows
(32-/64-bit)
Serial Number Sticker
For future product return or exchange, this serial number
is required. Please keep it for your reference.
04-0561B
USB 2.0 Video Capture Device
Quick Installation Guide
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
1
Advertisement
Related Manuals for SIIG USB 2.0 Video Capture Device
Summary of Contents for SIIG USB 2.0 Video Capture Device
- Page 1 USB 2.0 Video Capture Device Quick Installation Guide Introducing the USB 2.0 Video Capture The USB 2.0 Video Capture Device easily captures video from VHS or any external source and record to DVD. Features and Benefits • USB 2.0 Plug and Play •...
-
Page 2: Package Contents
Package Contents • USB 2.0 Video Capture Device • USB extension cable • Software CD • Quick Installation Guide Layout Audio L/R USB connector Video In S-Video Figure 1: Layout Note: When using the S-Video, you must connect Audio L/R to hear the sound. - Page 3 Hardware Installation Windows 7 (32-bit) Boot up Windows, at the Windows desktop insert the driver CD. At the AutoPlay box: Click Open folder to view files. Double click 32bit folder, double click Install. If the AutoPlay box doesn't start: Click Start button, in Start Search, type D:\32bit\install.exe, then press Enter.
- Page 4 At User Account Control, click Yes. At Please plug in device box, insert the USB 2.0 Video Capture Device into a USB port, then click OK. Click Install this driver software anyway. At Setup Completed, click Close then restart Windows to complete the installation. ™...
- Page 5 Click Install this driver software anyway. Click Close to complete the installation. Windows XP (32-bit) Boot up XP. Insert the USB 2.0 Video Capture Device into a USB port. At the Found New Hardware Wizard, click No, not this time, then click Next.
- Page 6 Check Include this location in the search, type in D:\32bit\driver, then click Next. (Change D: to match your CD-ROM drive letter) Click Continue Anyway. Click Finish to complete the installation. Windows XP (64-bit) Boot up XP. Insert into USB port. At the Found New Hardware, click No, not this time, then click Next.
- Page 7 Honestech VHS to DVD 3.0 SE Utility You must set the resolution to 1024x768 or higher to work properly. Software Installation Insert the driver CD. For Window 7: Click Start, in the Start Search box, type in D:\App\Setup.exe, press Enter, click Yes. (Change D: to match your CD/DVD-ROM drive letter) For Window Vista: Click Start, in the Start Search...
- Page 8 Click Finish to complete the installation. Note: For Windows Vista, disable sleep and hibernation mode when recording or capturing. Entering the Serial Number Click Start/All Programs/Honestech VHS to DVD 3.0 SE/Honestech enter the serial number, found with the driver CD, when running the program for the first time.
- Page 9 Blank Page...
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
You can also submit questions online and a technical support analysts will promptly respond. SIIG offers a 2-year manufacturer warranty with this product. Please see our web site for more warranty details. If you encounter any problems with this product, please follow the procedures below. - Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 2.0 Video Capture Device is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
