Introducing the VGA/YPbPr & Audio to HDMI
The VGA/YPbPr & Audio to HDMI Converter offers an easy
and inexpensive method of converting analog PC video
(VGA) or component video (YPbPr) with either digital
audio (S/PDIF) or analog stereo audio to digital HDMI.
Features and Benefits
•
HDMI 1.2a compliant
•
Supports PC video display resolutions up to UXGA
(1600x1200) or WUXGA (1920x1200)
•
Supports HD (1080i/720p) component video
•
Coaxial S/PDIF and analog stereo audio inputs
•
Front Panel LED indicators
Technical Specifications
•
Bandwidth: 1.65 Gbps
•
Input video signal: 1.2 volts (peak to peak)
•
Output DDC signal: 5V (peak to peak)
•
HDMI connector: 19-pin female
•
DSUB connector: 15-pin female
•
RCA connector: coaxial S/PDIF (PCM 48KHz)
•
Phone jack (3.5mm): analog stereo audio
•
Power supply: 5V, 4A DC
04-0510A
VGA/YPbPr & Audio to
HDMI Converter
Quick Installation Guide
1
Advertisement
Table of Contents
Related Manuals for SIIG CE-VG0011-S1
Summary of Contents for SIIG CE-VG0011-S1
- Page 1 VGA/YPbPr & Audio to HDMI Converter Quick Installation Guide Introducing the VGA/YPbPr & Audio to HDMI The VGA/YPbPr & Audio to HDMI Converter offers an easy and inexpensive method of converting analog PC video (VGA) or component video (YPbPr) with either digital audio (S/PDIF) or analog stereo audio to digital HDMI.

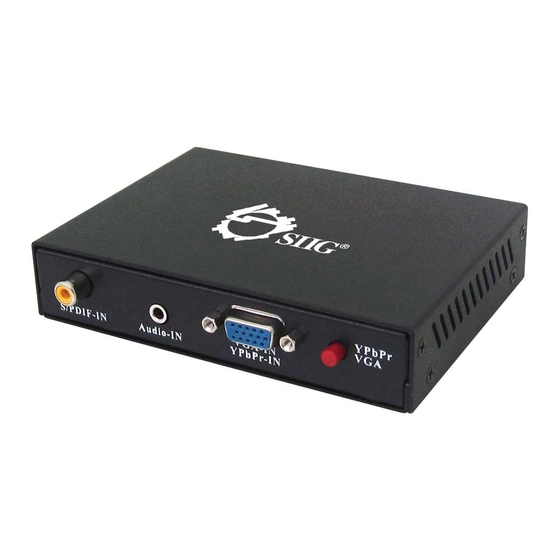

- Page 2 Package Contents • VGA/YPbPr & Audio to HDMI Converter • 4 rubber pads • VGA to YPbPr adapter • Power adapter (5V, 4A) • Quick Installation Guide Layout S/PDIF In Audio In VGA/YPbPr In Front Panel • S/PDIF In: RCA connector, supports 2-channel stereo @ 48KHz audio sampling rate •...
-
Page 3: Rear Panel
Mode Switch HDMI Detect HDMI Out Rear Panel Mode (DIP) Switch: See table below for the different • settings HDMI Detect: Shows proper HDMI detection when • HDMI Output: Connects to HDMI video display • Power Indicator: Shows that the unit is powered on •... -
Page 4: Hardware Installation
Hardware Installation Please read and follow the safety guidelines to protect yourself from possible injury and to minimize the risk of damage to your equipment. • Provide proper ventilation and air circulation, do not use near water • Keep objects that might damage the device a safe distance away and place the unit on a stable surface. - Page 5 Notes Only HDMI enabled TVs with Underscan/Overscan support can accurately display full active video. If your TV does not support Underscan/Overscan, the top, bottom, left and right border of the active video may be screened off and the S/PDIF audio may not sound right.
- Page 6 Blank Page...
- Page 7 Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product.
- Page 8 Fremont, CA 94538-3152, USA Ph: 510-657-8688 VGA/YPbPr & Audio to HDMI Converter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of their respective companies.
