Summary of Contents for SIIG CE-H24C11-S1
-

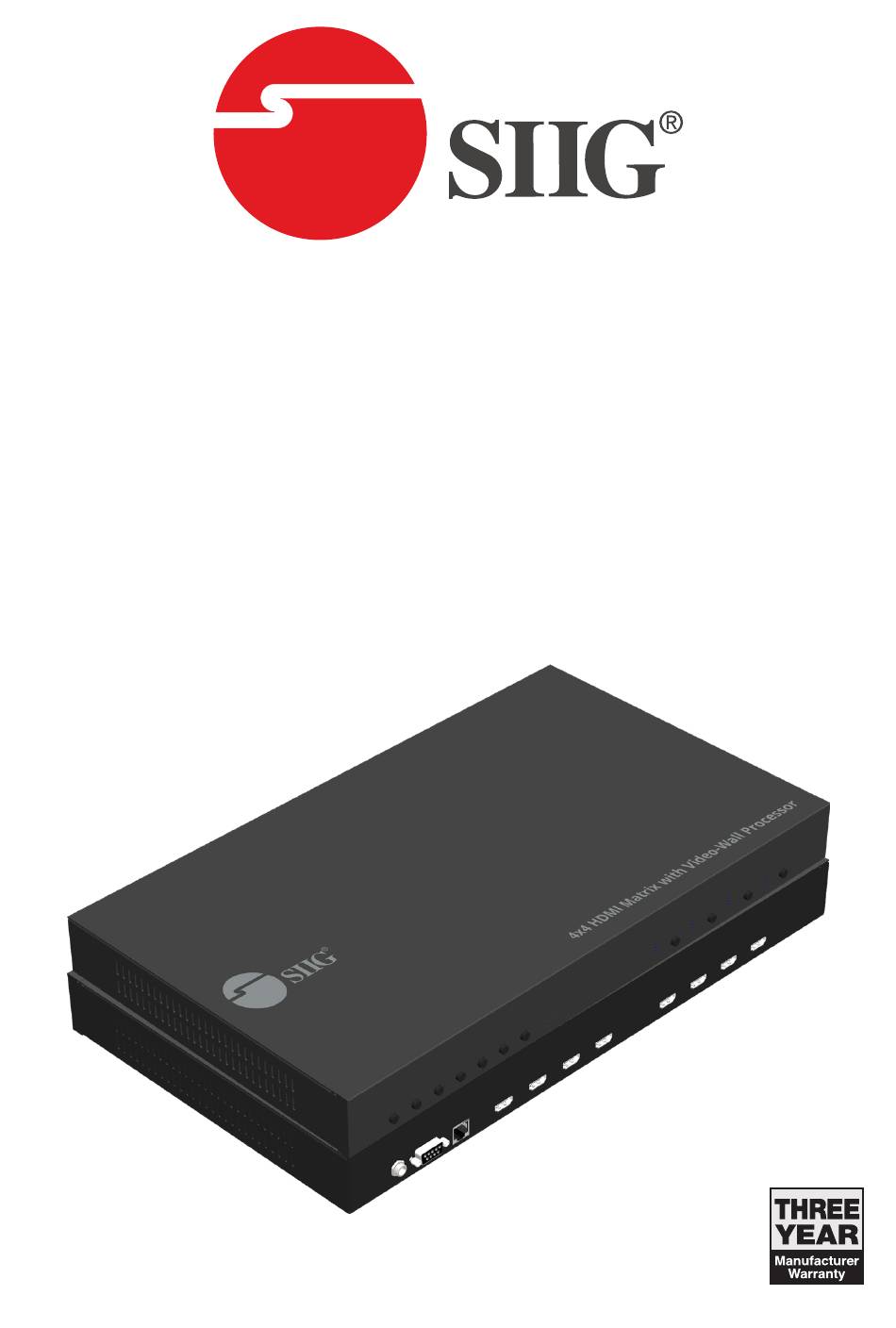

Page 1: User Manual
4x4 HDMI Matrix + Video-Wall Processor User Manual 04-1169A P/N: CE-H24C11-S1... -
Page 2: Safety And Notice
Safety and Notice The 4x4 HDMI Matrix + Video-Wall Processor has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the 4x4 HDMI Matrix + Video-Wall Processor should be used with care. -
Page 3: Package Contents
Features • HDMI 1.3 & HDCP 1.2 compliant • Allows any HDMI display to view any HDMI source at any time • Fast response time for channel switch • Supports 7.1 channel digital audio • Four HDMI outputs from 640x480 to 1920x1200 •... -
Page 4: Specifications
SPECIFICATIONS Technical Role of usage True 4x4 matrix HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] 480i / 480p / 720p 1080i / Video support 1920x1080@60 / 1920x1200@60 30-bit color Video Format Support HDMI / DVI Audio support Surround sound (up to 7.1ch) or stereo digital audio Human body model —... - Page 5 Layout Front Panel Control Buttons: Button 1 - Fast switch to 1 x 1 Button 2 - Fast switch to 2 x 2 Button 3 - Fast switch to 1 x 4 Button 4 - Fast switch to 4 x 1 Button 5 - Fast switch to Quad view mode Button 6 - Lock the device’s function Button 7 - Reset to default...
- Page 6 Application...
-
Page 7: Software Operation
Software Operation System Requirement and Precautions Whenever power off 4x4 HDMI Matrix + Video-Wall Processor, please stay unpowered at least 5 to 10 seconds to allow power capacitors to discharge. The 4x4 HDMI Matrix + Video-Wall Processor provides software control program which runs under Microsoft Windows XP, 7, 8, 10 through the interface of RS-232 serial control. -
Page 8: Control Interface
After the software control setting is accomplished, it will enter directly to the control interface. Control Interface Connection Status: Show the connect information and status. If you use RS-232 control Mode to connect device, the graph is For IP control, the graph of Ethernet is Matrix You can assign arbitrary video source and switch quad view mode here. - Page 9 TV Wall Step 1: check input channel (video wall source), input resolution and choose output resolution Firstly, you should select the video source which you want to use as a video wall function. The different colors of frame represent the different output TVs. The information of coordinate shows the position of output TV.
- Page 10 Step 2-1: quick selection If you choose the Quick Selection mode in step 2, this window will automatically pop up. In this mode, you can select default screen split Step 2-2: You can load and read configuration from the existing file on your PC/laptop.
- Page 11 Step 2-3: Custom define In Custom define mode, you can define how to cut in both directions and the part you want to show on output TV. If you want to know or estimate which parts you select, you can click the Grid button to show grid on the graph.
- Page 12 4. EDID (Extended Display Identification Data) Advanced Setting...
- Page 13 (1) Firmware Update Before you start to update, please make sure you have secured the connection between your computer COM port and the device Control MCU firmware update 1. Click the ”Load File” button to select the file 2. Click the “Break“ button to switch to firmware update mode 3.
- Page 14 6. IP configure You also can use the Ethernet to control software program. First, you should click the “IP CONFIGURE“ button to setup the network. Next, you can read the Ethernet setting from your device and manually set to the device. After the step of IP configuration, please restart the machine *This function does not support user use Ethernet mode to set.
-
Page 15: Edid Learning
EDID LEARNING The EDID learning function is only necessary whenever you encoun- ter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI sources and displays may have various level of capability in playing audio and video, the general principle is that the source will output the lowest standards in terms of audio format and video resolutions to be commonly acceptable among all HDMI displays. - Page 16 Support For more info or tech support http://www.siig.com/support Sep, 2018 Copyright © 2018 by SIIG, Inc. All rights reserved.
