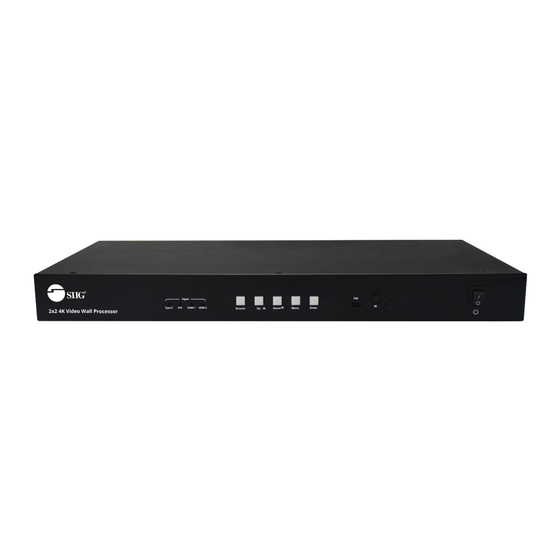

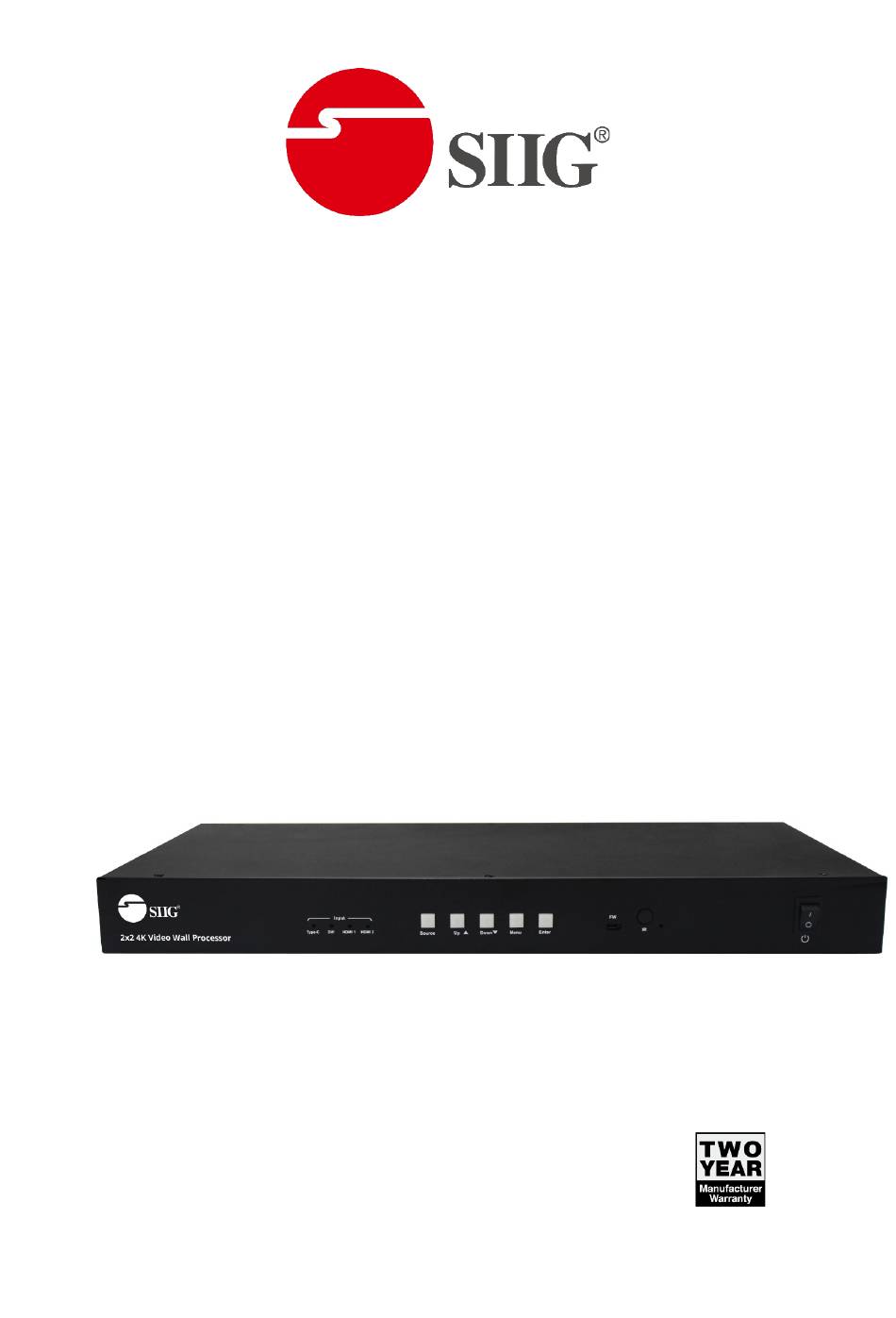

- Page 1 2x2 4K Video Wall Processor with USB-C / DVI / HDMI User Manual 04-1296A P/N CE-H26E11-S1...
-
Page 2: Table Of Contents
Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Directory 1. FEATURES ........................3 2. NOTICE ........................3 3. -
Page 3: Features
7.5.7 EDID ......................26 7.5.8 Audio output setting .................. 27 7.5.9 Audio input setting ..................28 7.5.10 Network interface ..................28 7.5.11 Reset ....................... 29 7.5.12 Password ....................29 8. RS232 CONTROL ..................... 30 9 FIRMWARE UPDATE ....................30 9.1 MCU update ....................30 9.2 GUI Update .................... -
Page 4: Specifications
3. SPECIFICATIONS Operating Temperature Range 0 to +40°C (32 to +104°F) Operating Humidity Range 5 to 90 % RH (no condensation) Input Video Signal 0.5-1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Video Format Supported Ultra HD TV/FHDTV: 4K@30hz/1080P Audio Format Supported LPCM 16bit ,24bit,44.1KHz/48KHz Input ports... -
Page 5: Panel Descriptions
5. PANEL DESCRIPTIONS Front Panel Input status light: The selected source has green light Source: Short press to select source from Type-C→DVI→ HDMI1→HDMI2 Input Up: Long press to choose device setting in the OSD menu Down: Long press to choose device setting in the OSD menu Menu/Left: Long Press to return to the main menu, short press to back to previous menu Enter/Right: Short press to enter the sub-menu, if there is no sub menu, short press it to confirm the setting selection... -
Page 6: Connecting And Operating
HDMI input1 HDMI input2 HDMI loop output S/PDIF port 10. Analog Stereo port 11. HDMI output1 to HDMI output4 6. CONNECTING AND OPERATING 1) Connect the sources into the video wall controller and Press the button on the remote, then choose the input Signal (DVI, 2 HDMI in, USB TYPE-C,). 2) Connect HDMI OUT to display equipment. -
Page 7: Control Instruction
CONTROL INSTRUCTION 7.1 Remote Control 1. Power on/off 2. Mute 3. Source switching 4. Switch signal source of IN1 (TYPE C) 5. Switch signal source of IN2 (DVI) 6. Switch signal source of IN4 (HDMI 2) 7. Switch signal source of IN3 (HDMI 1) 8. -
Page 8: Video Switching
OSD interface OSD video menu 7.2.1 Video Switching Press "Menu" on the panel to enter the "Switching" menu, Press "Up/Down" to select the input, Press "Menu/Enter" to confirm or back to the previous menu, The selected one has a "@" to mark. In1→Type-C input, In2→DVI input, In3→HDMI input1, In4→HDMI input2;... -
Page 9: Video Wall Setting
Video switching interface 7.2.2 Video Wall Setting Press the "Left/Menu" on the panel to enter the "Video Wall" menu, Press "Up/Down" to select or set up the video wall mode, Press "Menu/Enter" to confirm or back to the previous menu, the selected one has a "@" to mark. "Preset": Including 11 kinds of common scenes such as 2x2, 3x2,4x3,4x2,4x1, "Set Up": "H_NUM "... -
Page 10: Mirror
Preset video wall mode Video wall set up 7.2.3. Mirror Press the "Left/Menu" on the panel to enter the "Mirror" menu, Press "Up/Down" to select the mirror mode, Press "Menu/Enter" to confirm or back to the previous menu. "Normal" represents default mode (without mirror function), "Only X"... -
Page 11: Rotate
Mirror interface 7.2.4. Rotate Press the "Left/Menu" on the panel to enter the "Rotate" menu, Each output image support 180 degree rotation, select "Yes" or "No" to set up, The selected one has a "@" to mark. -
Page 12: Edge
Rotate interface 7.2.5. Edge Press the "Left/Menu" on the panel to enter the "Edge Set" menu, Press the "Up" or "Down" on the panel to select, then press "Enter" to confirm, The selected one has a "@" to mark. "X" represents the margin setting between the horizontal displays, each image is divided into 302 units. -
Page 13: Format
Edge set interface 7.2.6. Format Press the "Left/Menu" on the panel to enter the "Format" menu, Format including 4K30； 1080P@60； 720P@60； 2560x1440； 1920x1200； 1366x768 and Auto for each output or all outputs to choose by Pressing the "Up" or "Down" button, press "Enter"... -
Page 14: Audio Setting
EDID interface 7.3. Audio Setting 7.3.1. Audio input setting Press the "Left/Menu" on the panel to enter the "Audio" menu, Press the "Up" or "Down" on the panel to select, press the "Enter" to confirm the selection, the selected one has a "@" to mark, For HDMI input1 and HDMI input2, there is "CH2.0"... -
Page 15: Audio Output Setting
Audio input setting interface 7.3.2. Audio output setting Press the "Left/Menu" on the panel to enter the "Audio" menu, Press the "Up" or "Down" on the panel to select, press the "Enter" to confirm the selection, the selected one has a "@" to mark. For each output or all outputs, there is "Mute"... -
Page 16: System Setting
7.4. System setting 7.4.1. Baud rate Press the "Left/Menu" on the panel to enter the "Setup" menu then the "Baud" menu, Press the "Up" or "Down" on the panel to select, then press the "Enter " to confirm, The selected one has a "@" to mark. It contains 4 kinds of Baud rate including "115200/57600/19200/9600 "... - Page 17 TCP/IP main interface DHCP ON/OFF IP address Mask address...
-
Page 18: Reboot
Gateway address DNS Interface 7.4.3 Reboot Press the "Left/Menu" on the panel to enter the "Reboot" menu, Press the "Up" or "Down" on the panel to select "Yes" or "No", then press the "Enter" to confirm, the selected one has a "@" to mark. Reboot interface 7.4.4 Factory reset Press the "Left/Menu"... -
Page 19: System Information
Factory reset interface 7.4.5 System information Press the "Left/Menu" on the panel to enter the "INFO" menu, It Contains "System" and "IP" specific information, Press the "Enter " to check the current setting of the device. Info interface System information... -
Page 20: Web Control
IP information 7.5. Web Control The host computer such as PC is connected to the control device through the TCP/IP network port. The control mode is divided into two types: connect with a computer without network for single device control or connected to the LAN to realize multi-machine control simultaneously Control without network: When the host computer is connected to a computer without network through the... -
Page 21: Interface Introduction
Connecting to LAN to realize multi-user remote control devices (such as mobile phone, other PC) in Ethernet environment, it is necessary to ensure that the IP segment of the host is consistent with that of the connected LAN, it also need to open the DHCP and enter the related IP address to control. - Page 22 Browser compatibility (1) Use the browser such as Google, firefox, apple with the latest browser version for better compatibility, the other browsers may result in incompatible problems. (2) If you use the Internet explorer browser, pls make use the version number is higher than IE10.
-
Page 23: Video Wall Setting
7.5.2 Video wall setting Note: This interface is used to set up video walls or cascade. Interface introduction: (1) Video Map column: to identify the location of the output port mapping, you can change the output port position through the drop-down menu. (2) Output column: screens in horizontal and vertical directions, plus the parameters of the equipment cascade layers. -
Page 24: Mirror
Eg2：Select DVI port as input source to make a 2x3 video wall by 2 devices.TV 1 ~ 4 are connected to output port 2/4/1/3 of device 1 respectively, and TV 5 ~ 6 are connected to output port 3/4 of device 2. Operation Steps of device1: (1) In the Output section of the first device, select the "Horizon"... -
Page 25: Rotate
7.5.4 Rotate Interface introduction: The interface supports each output image rotation 180 degree, support rotate a single image at a time or rotate all output images at once. Operating instructions Click on the "ON/OFF" button to adjust. 7.5.5 Edge Interface introduction: The default edge of booth horizontal and vertical display screen is 3.5mm frame size, each image is divided into 302 units. -
Page 26: Format
7.5.6 Format Interface introduction: The interface is used to adjust the output format, the left output section including HDMI Output1、HDMI Output2、HDMI Output3、HDMI Output4 and ALL, the right format section including 4K@30Hz、 1080P@60Hz、 720P、 2560x1440、 1920x1200、 1366x768 and AUTO. Operating instructions E.g. -
Page 27: Audio Output Setting
Interface introduction: The interface is to set up the EDID for each input port or all the input at once. INPUT Section: the back content of the ">>" indicates the input source, and the front content of the ">>" indicates the current EDID information. It supports set up the EDID separately for each input or select all input as the same EDID. -
Page 28: Audio Input Setting
7.5.9 Audio input setting Interface introduction: It shows PCM2.0 and 5.1 to choose for HDMI Input1 and HDMI Input2. Operating instructions Click on the "2.0/5.1" button separately to select the audio format for HDMI input1 and HDMI output2. 7.5.10 Network interface Interface description: It used to set up and display the basic information including IP/ MAC address, Net mask address, gate way address and DHCP. -
Page 29: Reset
7.5.11 Reset Interface introduction: The interface is used to restart the device and restore factory settings. Operating instructions Click on each function button to achieve its function(as shown in the figure above), the bottom of the selection is blue. 7.5.12 Password Interface description: It use to change the login password. -
Page 30: Rs232 Control
8. RS232 CONTROL Function description: plug in the USB port to RS232 tool, double-click to open the RS- 232 software. Baud rate: 115200. Instructions: 1. All instructions begin with "#". Instruction header c%: d---operation parameter, I---operation lock, 2. "_" means underline, indispensable. Primary parameter d%: 0---all outputs, 1-X---specifies outputs (1-4), secondary parameters are the same as the first 3. -
Page 31: Gui Update
9.2 GUI Update Open the software UART_ISP.exe on PC, select the correct port and baud rate 115200, enter A1_01 (_ represents space) in the port, then select the program (xxxx.bin) in the path, and click update to complete the upgrade Note: Please reboot the device after GUI update MAINTENANCE Clean this unit with a soft, dry cloth.
