Introduction

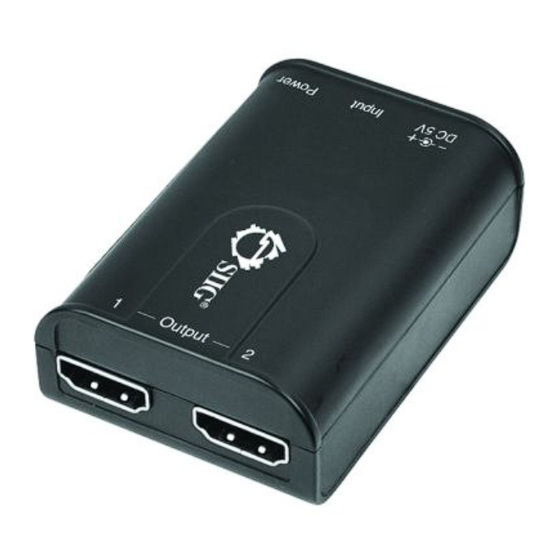

The 2-Port HDMI Splitter with Audio - USB Powered
broadcasts HDMI signals from one source to two
HDMI displays.

Key Features and Benefits

Broadcast HDMI content from one source to
2 HDMI displays
Supports 48-bit color depth, Full 3D & 4K2K
Supported resolutions: 480p, 576i, 720p,
1080i, 1080p, 4K2K
Easy to install and simple to use
LOT Number Sticker
For future product return or exchange, this number
is required. Please keep it for your reference.
04-0939A
2-Port HDMI Splitter with
Audio - USB Powered
Installation Guide
LOT Number
Part Number
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE-H21Z11-S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIIG CE-H21Z11-S1

  • Page 1 2-Port HDMI Splitter with Audio - USB Powered Installation Guide Introduction The 2-Port HDMI Splitter with Audio - USB Powered broadcasts HDMI signals from one source to two HDMI displays. Key Features and Benefits • Broadcast HDMI content from one source to 2 HDMI displays •...
  • Page 2 Package Contents • 2-Port HDMI Splitter with Audio - USB Powered • USB cable (for power) • Installation guide Layout Output Figure 1: Front Panel • Output (1-2): HDMI signal output port(s). Connects to your HDMI displays by using an HDMI cable (cables not included) DC/5V Power LED Input...
  • Page 3 • DC/5V: Connect to the included power adapter • Input: HDMI signal input port. Connects to your source device's HDMI output port by using an HDMI cable (cable not included) • Power LED: The LED will be on when the splitter is powered on Hardware Installation Power off all devices you plan to connect to...
  • Page 4 If any of the HDMI displays are off, an external power source is needed. Connect the included USB power cable to the Splitter's DC/5V power jack and plug the other end into a reliable USB port or USB wall charger. To USB power source To Splitter's DC/5V connector...
  • Page 5 Application HDMI source (PC, NB, Blu-ray DVD player, DVD player, PS3, etc) HDMI cable USB power supply (input)** (optional) HDMI cable (output)** HDMI cable (output)** HDMI display HDMI display Figure 4: Application ** Maximum extension length: Input length up to 5 meters; output length up to 10 meters...
  • Page 6 Blank Page...
  • Page 7 Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 8 THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE 2-Port HDMI Splitter with Audio - USB Powered is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation.
