Automation Dr. Nix QNix 9500 Series Operation Manual page 6

9500

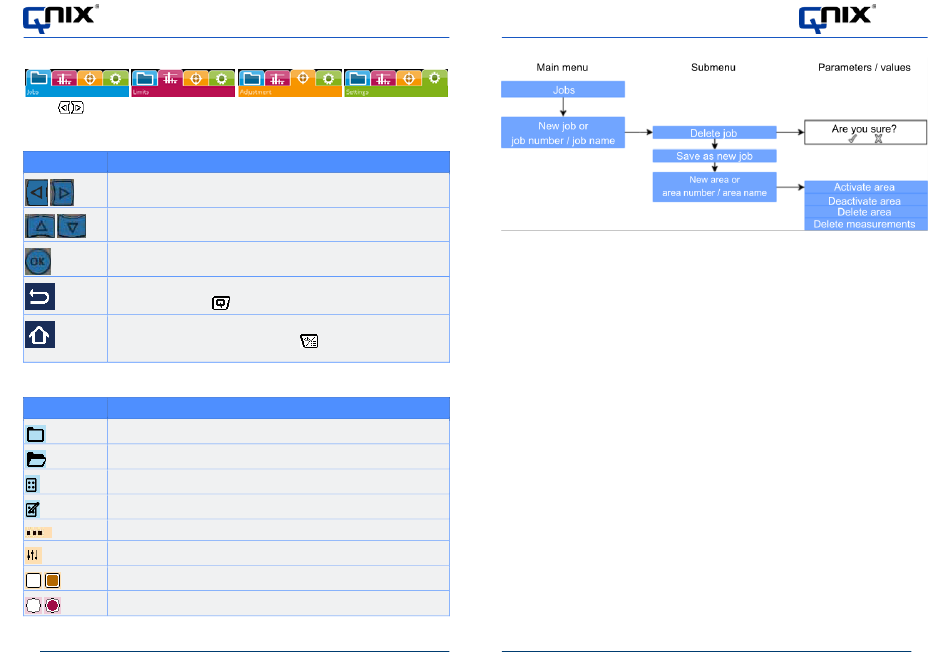

2.1 Menu Overview
Use the buttons to navigate within the four main menus (Jobs, Limits, Calibration and Set-
tings).
Navigating within the menus:
Symbol / button Explanation
Previous / next menu;
when entering values: previous / next decimal place
Previous / next menu item;
when entering values: Value up / down (hold button for fast scan)
Confirm value / go to submenu / confirm selection
Previous;
context-based Q button
Home; return to measurement display
context-based button Power / Menu / Home
On / Off
Context and model-based symbols in the menus:
Symbol Explanation
Job (only if several jobs exist)
Job contains the enabled area
Defined area
Enabled area
Menu item has a submenu
Menu item contains an entry or selection list
Checkbox, multiple items can be selected
Radio button, only one item can be selected
The background colours of the symbols correspond with the colours in the main menu.
10 / 48 10
2 Device Overview
QNix 9500 EN_ES_FR_IT_NL_PL
2 Device Overview
2.1.1 "Jobs" Menu
Illustration 1: Jobs Menu Structure
QNix 9500 EN_ES_FR_IT_NL_PL
9500
11 / 48 11
