4.3 Measurement Display
The measurement display contains the areas

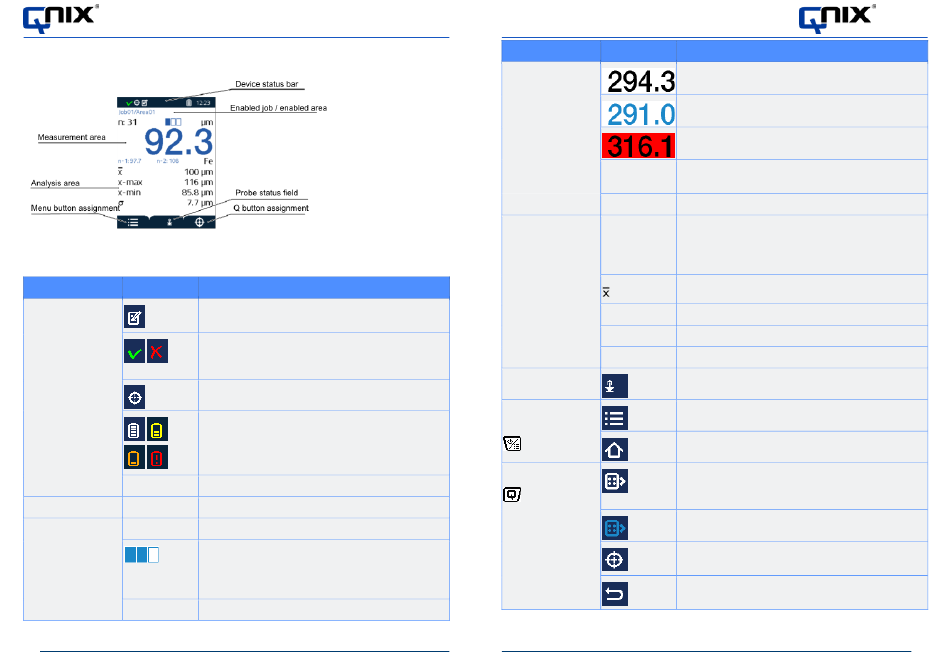

Illustration 5: Measurement Display
Depending on the context, the measurement display will contain the following information:
Section Symbols Description
Device status bar Areas are enabled
Measurements are saved to the enabled area.
Conformance display indicating conformance / non-
conformance with the selected limits; always pertains to
the measurements in an area
Calibration done
Battery level 100 % / 50 % / 25 % / empty
Note! When the batteries are below 50 %, a warning
screen will appear. Press "OK" to confirm the screen and
replace the batteries promptly.
12:40 Clock
Job / Area nnnnn/nnnnn Selected job and enabled area
Measurement range n Number of spots used in the enabled area
Number of measurements used for averaging, if over 5
values the display will show a number.
filled boxes correspond to the number of measurements
recorded
µm / mil Unit for the coating thickness
20 / 48 20
4 Operation and Controls
QNix 9500 EN_ES_FR_IT_NL_PL
4 Operation and Controls
Section Symbols Description
Current measurement (within the limits)
Not all measurements for averaging have been recorded
Measurement outside the limits
n-1: Last and next to last measurement
n-2:
NFe / Fe Probe type
Analysis area Note: The analysis area is split into three areas: Graphics,
statistics and conformance. This describes the area statis-
tics value. For more information, please see chapter
"Analysing Measurements [S. 23]".
Average
x-max Highest measurement
x-min Lowest measurement
σ Standard deviation
Probe status bar Probe connected
Menu button assign- Switch to menu (On/Off button)
ment
Switch directly to measurement
Q button assignment Manually advance area
(with Q button assigned accordingly; QNix®9500P and
QNix®9500P+ only)
All areas disabled
Start calibration
(with Q button assigned accordingly)
In menu: one level up
When selecting a limit set: Open settings
